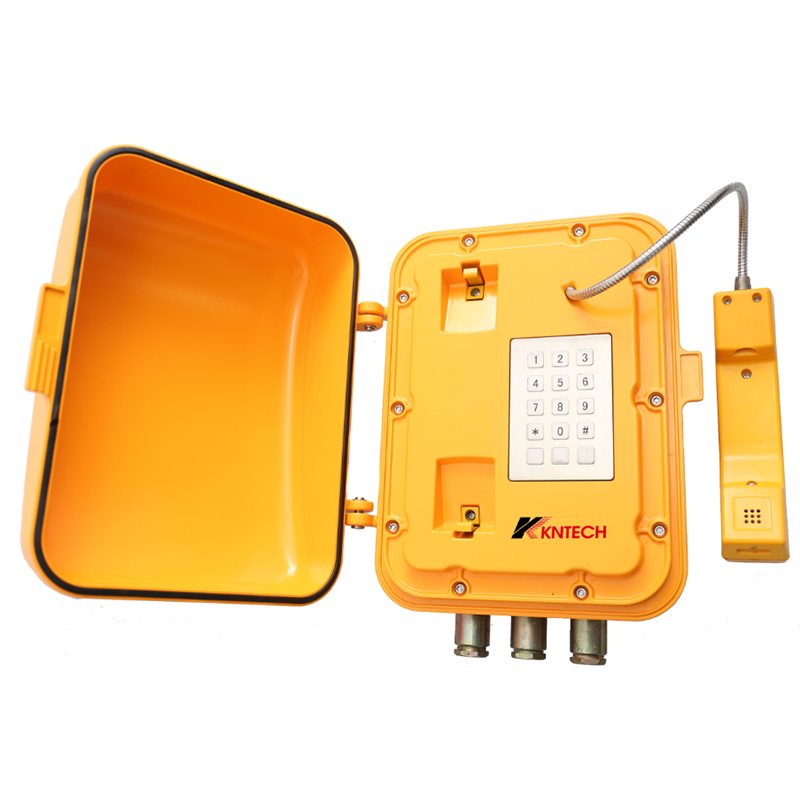

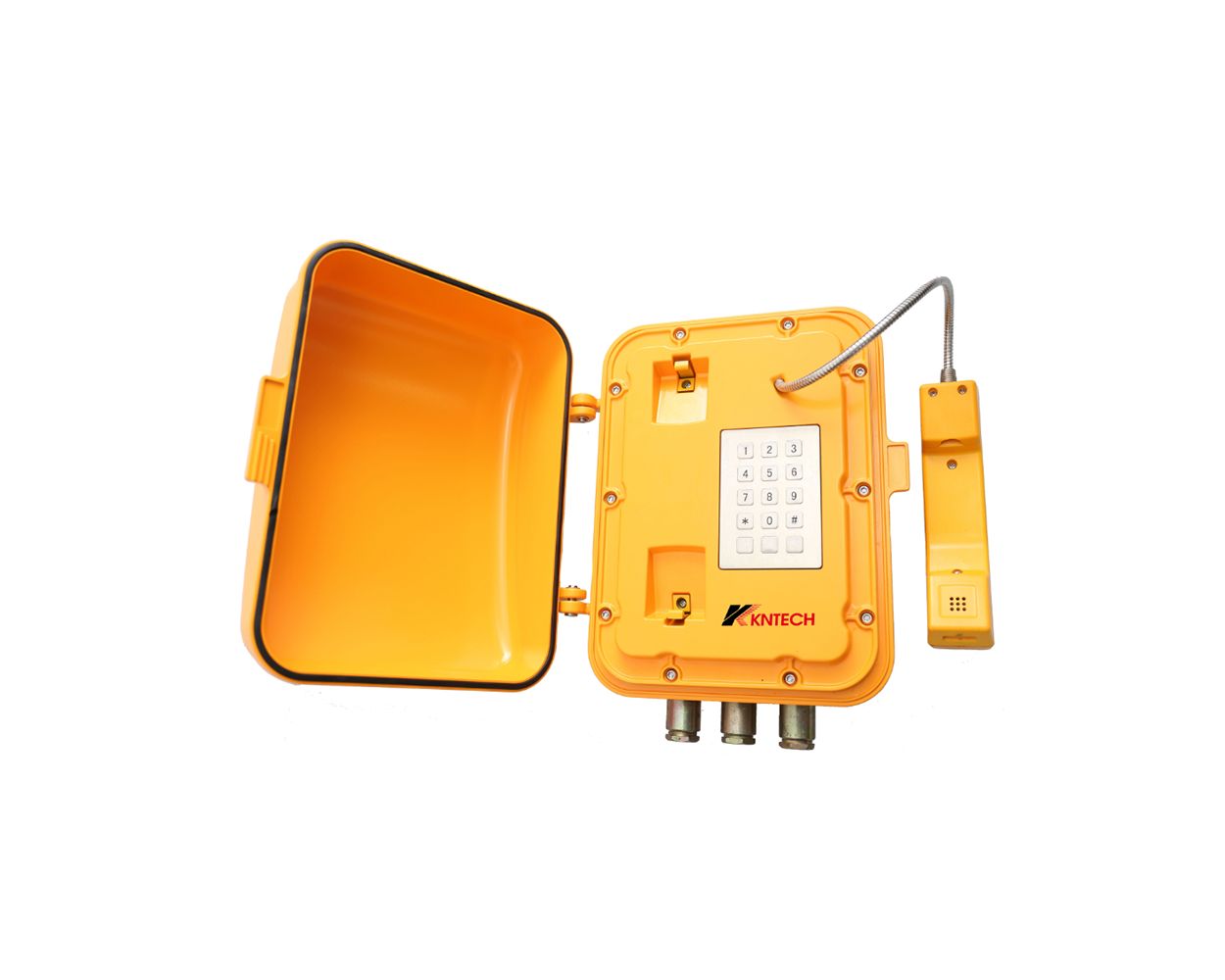

Analogue Explosion proof telephone with loudspeaker

Call for price

Be the first to review this product

Types of protection:     II 2G Ex db ib IIB T4 Gb   -40℃ to 60℃
DTMF dialling               MTBF:100000hours
With built-in amplifier and with external speaker 15-30W

SKU: 650312
Availability: In stock
Details

Analogue Explosion proof telephone with loudspeaker



Specifications:



Types of protection: II 2G Ex db ib IIB T4 Gb -40℃ to 60℃

DTMF dialling MTBF:100000hours

With built-in amplifier and with external speaker 15-30W



With flash light

Power supply:Telephone line

Auxiliary Contacts:1 Aux Output, dry contact

Contact Ratings. Load: Resistive load

Rated load:0.3 A at 125 VAC; 1 A at 30 VDC

Rated carry current:1A

Max.switching voltage:125 VAC,60VDC

Max.switching current:1A

Sound level of ringing:over 120dB(A).

speed dialling keypad:Super strong function is available for dialling 12 groups of numbers stored in the memory



Housing: construction robust aluminium alley die-cast body



Unit size: 278X349X161MM



Weight: 8kg



Environment conditions:



Ambient temperature: -40℃ to 70℃. Relative humidity:10%~95%



Atmospheric pressure: 86~106Kpa Circumstance noise:less than 60dB(A)



Degree of protection: IP66 according to EN60529



Impact protection: IK 09 according to EN50102
