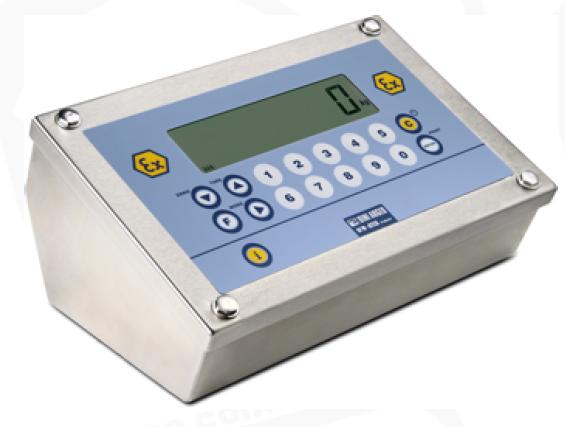

Atex Weight Indicator

Description Atex Weight Indicator

Atex Weight indicator for areas classified as hazardous. Ideal for creating weighing systems, batching, and
automation systems. EC-Type- Examination certificate according to Annex III (94/ 9/ EC directive).
CE-M approvable (OIML R-76 / EN 45501).

Main Features Atex Weight Indicator
o Waterproof 17-key numerical and functional keyboard.
o LCD dis lay with 6 25-mm high contrast digits, clearly visible even in
poor Iig ting conditions and with low temperatures, and with 6 LEDs
for showing the active functions.
o Satined IP68 stainless steel case.
o Dimensions 264x174x115mm.
o Suitable for use on the table, or wall.
o Up to 10.000e or multirange 3 x 3000e @ 0,3 |JV/d for CE-M
approved legal for trade use.
o Up to 100.000 displayable divisions with internal resolution up to
3.000.000 points.
o Up to 8 signal linearization points with DINITOOLS (3 from
keypad).
o A/D 24-bit sigma-delta conversion, up to 200 conv./sec.
autoselect.
o Digital calibration and set-up from keyboard; Instrument
management & configuration from PC with DINITOOLS.
o Power supply through extemal module: with DFWPBP76-ATEX
optional battery pack; or with optional power adapter connectable

to mains at 230 Vac or at 24 Vdc.
o Connection with up to 4 load cells having 350 Ohm input resistance.

Functions Atex Weight Indicator

o SCALE FUNCTIONS
-Zeroing
- Automatic Tare
- Presettable Tare
- ID1 and ID2 10-digit Codes
- Print and data transmission commands
- selectable function command
- on/off switching

o SELECTABLE FUNCTIONING MODES
- High Resolution Weighing x 10
-Net/Gross or Ib/ kg conversion
- Accumulation
- Formula weighing
- Counting (Max. resolution of 1.500.000 divisions).
- In/ Out Truck weighing

- Hold
- Peer-to-peer (up to 4 remote connectable indicators)
- Set Point Control (with optional interface).

I/O Section
o Fiber optic bidirectional port for connection with printer, Iabeller,
PC, or PLC in safe area.
o 4 logic inputs and 4 barriered digital outputs, connectable to other
intrinsic safety devices in a hazardous area.

OPTIONS ONLY AVAILABLE AT TIME OF ORDER
o Rechargeable battery pack in safe area
o Power adapter connectable to mains at 230 Vac or at 24 Vdc with
protection method according to 11(2)/2 G [EEx ib]/EExd IIC T4 and

11(2)/2 D [EEx ib]/tD A21 T140°C.
o Alibi memory
