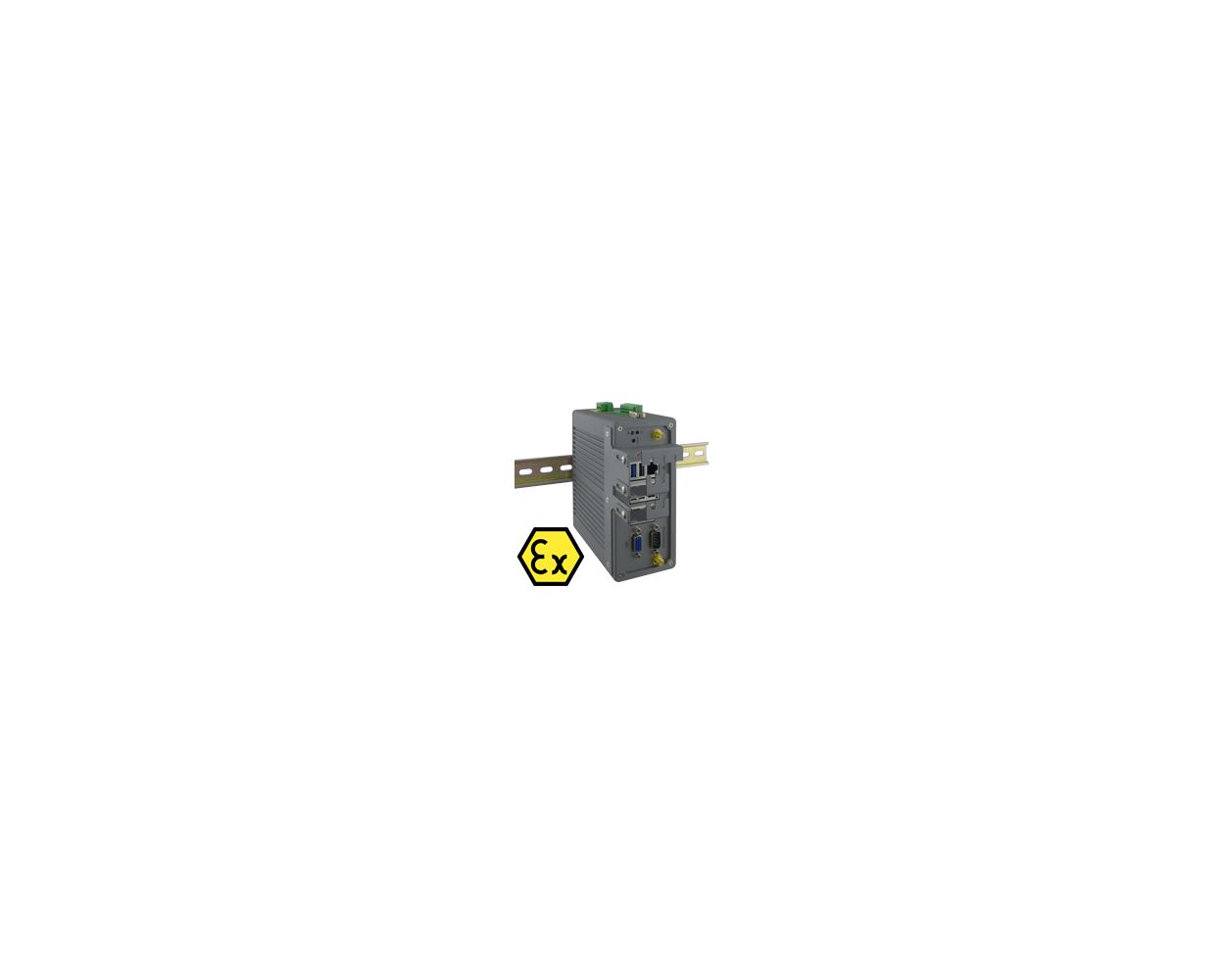

IBDRW100-EX

IBDRW100-EX

System Specification
Processor: Intel® Celeron® Bay Trail-M N2930 1.83GHz
System Chipset: Bay Trail SoC Chipset
System Memory: 1 x DDR3L 1333MHz SO-DIMM, Default 4GB, Max. up to 8GB
Ethernet Controller: Intel® WG82574L GbE LAN
USB: 1 x USB 3.0, 3 x USB 2.0 (external)
2 x USB 2.0 by pin-header (internal)

I/O Connectors
Front Side I/O
1 x Power ON/OFF button with LED indicator
1 x Line Out, Line In, Mic In
4 x RJ-45 (Giga LAN)
1 x RS232/422/485 (Switch by jump) Default: RS232
1 x VGA
1 x USB3.0
3 x USB2.0
1 x DC Power 3pin Terminal Block
1 x RS422/485 (Isolation)
1 x 20 pins terminal block DIDO (9in / 9out)

Mechanical and Environment
Dimensions (L x W): 139mm x 65mm x 152mm(L x W x H)
Color: Dark Silver
Construction: Metal housing
Power Input: 9~36V DC IN (Isolation)

Environment Specification
Operating Temperature: -20 to 60 deg.C
Operating Humidity: 5% to 95% (non condensing)
Certifications: Class 1 Division 2, Group A,B,C,D T4A
ATEX II 3 G Ex nA IIC T4 Gc
Mounting: Desktop / Wall-Mounting
Power consumption: 25W

Product Spec
Storage: Default 64GB mSATA SSD
Optional: 64GB to 256GB 2.5" SSD

OS
Windows Embedded Standard 7
Windows 7 PRO for Embedded system
Windows Embedded 8 Standard
Windows Embedded 8.1 Industrial
Windows 10 IoT Enterprise
* This device is required to be mounted in ATEX certified or IECEx certified IP54 enclosure to meet ATEX and C1D2 certification
