ATEX Zone 1 / 21 certified 34 mm ON METAL RFID TAG LF, HF, NFC, UHF with Extended Temperature Range

Call for price

Be the first to review this product

Features:

ATEX certified universal RFID TAG with multifrequency option LF, HF and UHF for mounting on metal and other surface.
Available as LF, HF, NFC and UHF version
Extended Storage Temperature Range up to 100°C
SKU: 5474568889
Availability: In stock
Details

ATEX Zone 1 / 21 certified 34 mm ON METAL RFID TAG LF, HF, NFC, UHF with Extended Temperature Range



The ATEX Zone 1/21 guaranteed 34 mm ON METAL RFID TAG with Extended Temperature Range is a broadly useful item and helpful in numerous modern applications to streamline object recognizable proof in resource managment, machine stamping, versatile support and administration and all sort of logistics applications where higher capacity temperatures up to 100°C are needed.The strong lodging in mix with the 4.5 mm mounting gap gives the mounting in perilous region and superbly in and on metal environment.



Features:

ATEX certified universal RFID TAG with multifrequency option LF, HF and UHF for mounting on metal and other surface.
Available as LF, HF, NFC and UHF version
Extended Storage Temperature Range up to 100°C


Specifications:

IC Type:
NXP I-Code SLIX
HF 13.56 MHz
(+/- 5 %) ISO: 15693, 18000-3 Read Range:
200 mm
NXP NTAG213
HF 13.56 MHz
(+/- 5 %) ISO: 14443, 18000-3 Read Range:
20 mm
NFC Forum Type 2 compatible.
NXP NTAG216
HF 13.56 MHz
(+/- 5 %) ISO: 14443, 18000-3 Read Range:
20 mm
NFC Forum Type 2 compatible.
Alien Higgs 3
UHF 860 MHz ... 960 MHz
(+/- 5 %) ISO: 18000-6 Read Range:
3000 mm
The read range depends on the environment and the respective country regulations. The allowed frequency band has to be selected. TAG and RFID reader need to be coordinated to each other.
EM4200
LF 125 kHz
(+/- 5 %) ISO: De-Facto Standard Read Range:
100 mm
NXP MIFARE Ultralight C
HF 13.56 MHz
(+/- 5 %) ISO: 14443, 18000-3 Read Range:
20 mm
NDEF formatable NFC version available
Thickness:
6,0mm
Diameter:
34,0mm
Hole Diameter:
4,5mm
Weight:
7,0g

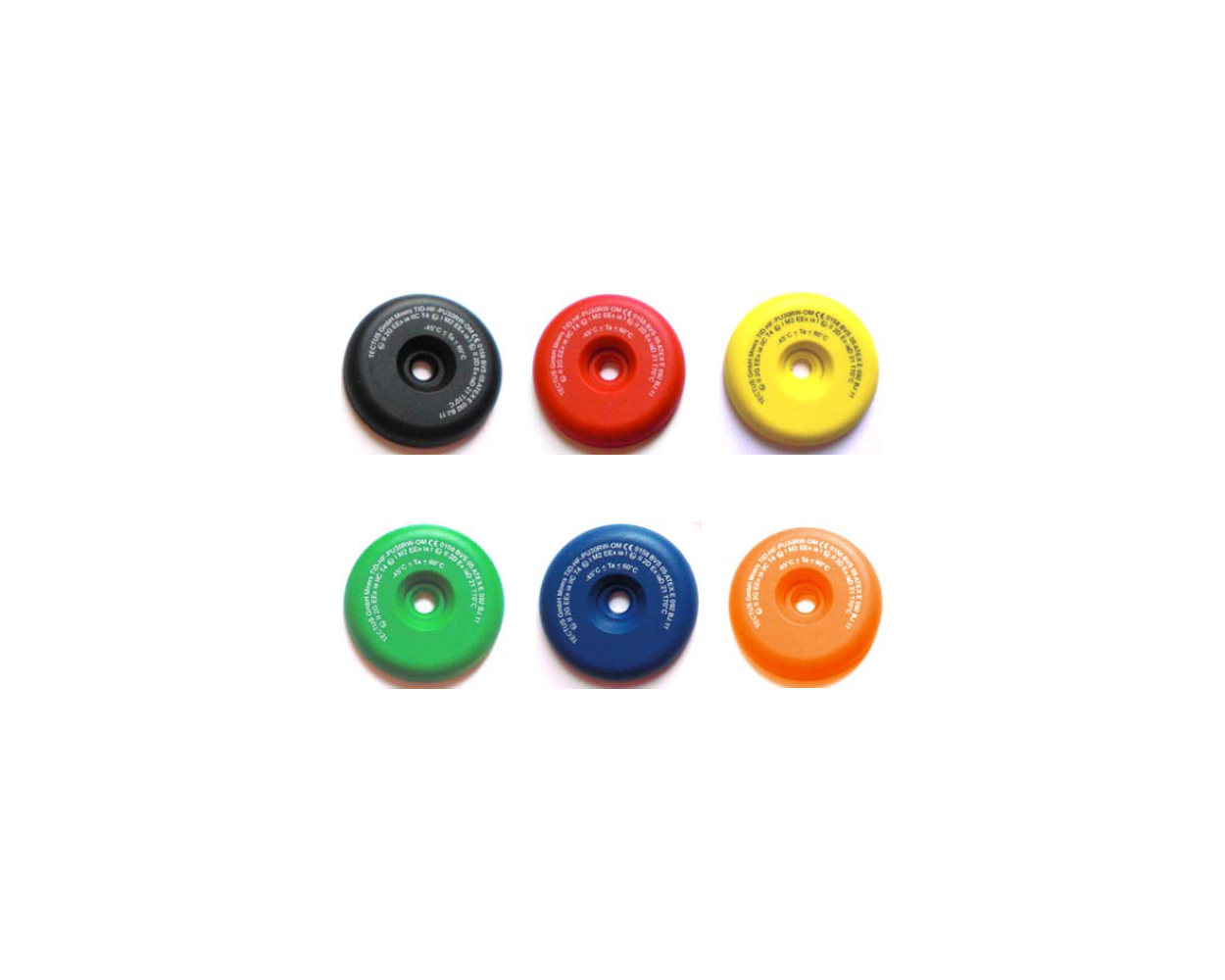

Colors:
Black, Blue, Yellow, Green, Orange, Red
Material:
Polyamide
Operation Temp.
-40°C ... 85°C
Storage Temp.
-40°C ... 100°C
MOQ:
1 000
EX Certificates:
ATEX Zone 1 / 21
EX Marking:
BVS 05 ATEX E 092
II 2G EEx ia IIC T4 CE 0158
I M2 EEx ia I
II 2 D Ex iaD 21 T70 °C
-45°C < Ta < 110°C
Chemical Resistance:
Unleaded gasoline, Mineral- and Vegetable Oil, Petroleum, Saltwater
IP Class:
IP68
Compliance:
CE, RoHS
Mounting:
On Metal
Part Names:
TID-UHF-PU30RWHT-OM-xx
TID-HF-PU30RWHT-OM-xx
TID-HF-PU30RWHT-OM-xx
Suffix xx:
[ ] = BLACK, BL = BLUE, GR = GREEN,
OR = ORANGE, RD = RED, YL = YELLOW
Additional Information:
The maximum surface temperature (Limitation of the temperature of all external surfaces) of 110 °C must not be exceeded according to the ATEX regulations. \
