P571 Flexicoiler Explosion Proof Inspection System

Description P571 Flexicoiler Explosion Proof Inspection System

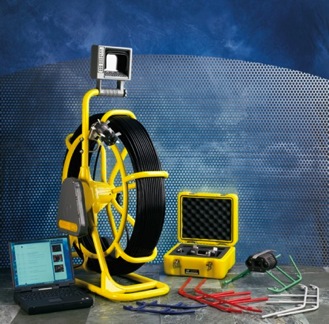

Flexicoiler P571 Ex Inspection System is a fully integrated unit featuring a versatile coiler running 150
metres (500 feet) of rod; built-in integral electronic rod counter; video/in and video/out
VCR connectors for recording and playback of surveys; built-in sonde; on-screen text overlay
for annotation of inspection findings; and QWERTY keyboard built directly into the
monitor case allowing up to 512 characters per page (nine page overlay facility).
Controls such as contrast and brightness are also located on the monitor casing. The P571
is powered by plugging it into a standard outlet. With a choice of either the P415
standard colour camera or the P455 camera, the P571 accepts lightheads up to 40 watts.

Constructed of rugged, rust-proof cast/welded aluminium, painted in Pearpoint’s signature yellow, the P571 is a stand-alone system.

Specifications P571 Flexicoiler Explosion Proof Inspection System

Coiler FlexicoilerExInspectionsystem
- Construction Cast aluminium
- Dimensions 812.8mm x 1168.4mm (32”W x 46.1”H)
- Weight 37kg (81.4 lb s.) w/167m (500’) rod
- Rod Capacity 150m (500 feet )
- Rod Diameter 10.33mm (0.4”)
- Sealing Waterproof to IP54
- Connectors VCR or video printer
- System Auto-selectable NTSC/PAL
- Electrical 100 - 240V AC

Monitor
- Dimensions 5.6”
- Sealing Waterproof to IP65

Keyboard
- Configuration ”qwerty”; built-in monitor

Camera
P415
- Standards :: 760 x 582 PAL; 760 x 492 NTSC
- Sensor :: Transfer Type Interline 1/4”
- Sensitivity :: Better than1 lux
- Horizontal Resolution :: 450 TVL (approx) lines per picture height
- Electronic :: Iris Electronic auto or manual to eight positions
- Focal Length :: 6.35mm (.0.25”)
- Construction :: 300 series stainless steel
- Weight :: 850g (1.87 lbs.)
- Dimensions :: Lens front to rod connector -111mm (4.37”);
- Diameter :: 44mm (1.73”)
- Connector :: 4-way Pearpoint Posiswivel
-   Electrical :: 25 V - 50 V via special control unit
-   Power Consumption :: 4.5W less lights (approx)
-   Output :: Complimentary composite video
-   Control :: Pearplex inter-video control system
-   Remote Functions :: Focus, auto/manual iris, auto/manual rotate
-   Waterproof :: to 11 bar (160 psi)
-   Inspection Capacity :: 101.6mm - 609.6mm

Mechanical
- Full diameter length :: 120mm (4.72”)
- Diameter :: 59mm (2.36”)
- Material :: 300 series stainless steel
- Connector :: 4-way Pearpoint Posiswivel
- Weight :: 1.1kg (2.42Ilbs)
- Waterproof :: 11bar / 150psi

Electrical
- Voltage :: 25v/50v
- Consumption :: 6W approx
- Output :: Complimentary composite video
- Control :: Pearplex inter-video control system
- Remote Functions :: Focus, auto/manual iris, auto/manual
rotate, side/front view

Operating Temperature
- Range :: -10ºC to +40ºC

Optical
- Sensor :: Transfer Type Interline 1/4”
- Pixels :: 760x582 PAL, 760x492 NTSC
- Sensitivity :: w/flexiprobe Better than 1 Lux

Lens
- Focal Length :: 6.35mm (0.25”)
- Iris Control :: Electronic auto or manually to eight positions
- Horizontal Resolution :: 450 TVL lines per picture height
