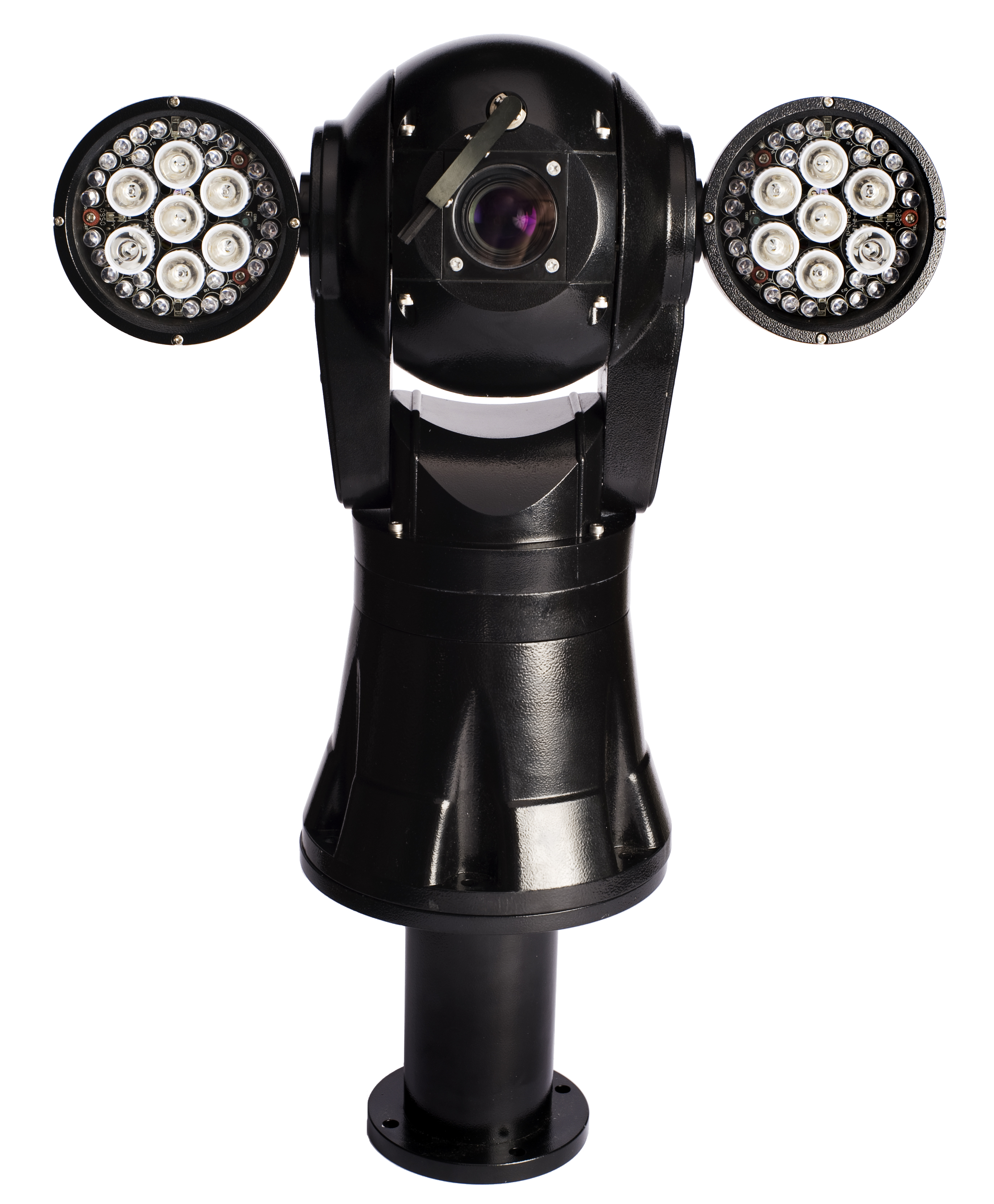

Rugged PTZ Camera with Infrared
Rugged PTZ Camera with Infrared is made from aluminum alloy (5mm thick at thinnest point, up to 15mm), meeting requirements as a shock proof, vandal proof, water proof and corrosion proof camera. The glass in window is 5mm thick effectively eliminating distortion, while providing protecting the lens from impacts. ASC-EX-PTZ Series explosion proof PTZ camera is designed to resist impacts from rocks, and even bullets. It is ideal for high level security and hazardous applications, such as: prisons, navy, military, nuclear plants, seaports, marine vehicles, government embassies, police vehicles, armored vehicles, airports, high crime areas, and government research labs. It is also safe for use in explosive atmospheres found in oil, gas, and chemical processing sites.
| Specifications |
| Resolution : |
540 TV Lines |
| Image pickup : |
1/4" CCD Sensor |
| White balance : |
Auto/Manual |
| Auto electronic shutter : |
Auto 1/60 to 1/100,000 sec |
| Gama characteristic : |
0.45 |
| Infrared luminary : |
2 IR Flood Lights |
| Minimum illumination : |
0 Lux at IR on |
| Illumination distance : |
70m Active IR |
| Synchronous system : |
Internal |
| Gain control : |
Auto |
| Video output : |
1Vp-p / (75 Ohms, Complex) |
| Lens furnished : |
F1.4(f=3.4 - 122.4mm) 36X |
| SN ratio : |
50dB (AGC Off) |
| Other : |
Built-In Wiper |
| Mechanical and Electrical Specifications |
| Operating Temperature : |
-40°C ~ +50°C |
| Dimensions : |
480mm (Height) x 170mm (Diameter) |
| Power Supply: |
220/110/24VAC; 12VDC selectable |
(will be soon in atex av.) (not yet certified)
