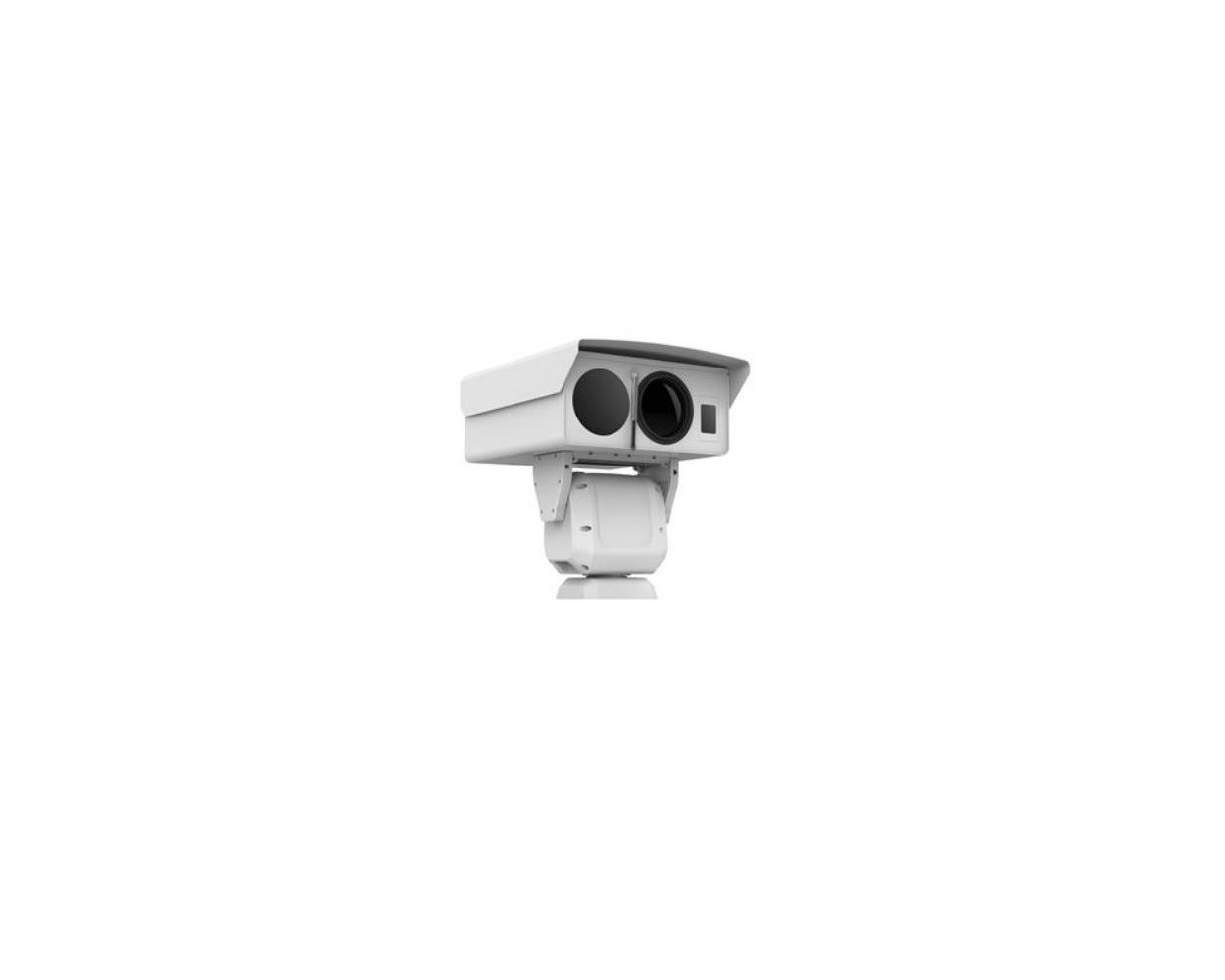

Thermal & Optical Bi-spect Ntw Stable PTZ Camera DS-2TD8166-180ZE2F

€0.00

Be the first to review this product

*No Atex
Thermal Imaging Module Function * 640*512 resolution, high sensitivity sensor, support contrast adjustment * Support shutter adjustment in various modes * 3D DNR, 15 palettes of color adjustable, image detail enhancement Smart Function (Thermal Imaging) * Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD < 40mk (@25°C, F#=1.0) * Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking * Smart tracking linkage: thermal view and optical view * Powerful behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit * Reliable temperature exception alarm function * Advanced fire detection algorithm

SKU: 650109
Availability: Out of stock
Details

*No Atex

Thermal & Optical Bi-spect Ntw Stable PTZ Camera DS-2TD8166-180ZE2F



Hikvision DS-2TD8166-180ZE2F Thermal & Optical Bi-spectrum Network Stable PTZ Camera is applied to
frontier defense occasions, maritime defense occasions, port monitoring, airport perimeter security, and so
on. The pre-alarm system helps you discover unexpected events immediately and protects you from
property loss.



Optical Camera
Image Sensor: | 1/1.8 ” Progressive Scan CMOS
Min. Illumination: | Color : 0.05Lux @ (F1.8, AGC ON)
B/W : 0.01Lux @ (F1.8, AGC ON)
Focal Length: | 12.5-775 mm, 62 x
Field of View: | 31.5 ° × 23.9 ° to 0.51 ° × 0.39 ° (Wide-Tele)
Min. Working Distance: | 5 m (Wide-Tele)
Aperture Range: | F3.5 to Close
Focus Mode: | Auto / Semiautomatic / Manual
WDR: | Digital
Shutter Time: | PAL: 1-1/30,000s / NTSC: 1-1/30,000s
White Balance: | Auto /Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night: | IR Cut Filter
Privacy Mask: | 24 privacy masks programmable; optional multiple colors and mosaics
Optical Defog: | Support
Enhancement: | 3D DNR





Smart Function
VCA: | Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 10 scenes and 8 VCA rules for each scene
Temperature Measurement: | Support 3 temperature measurement rule types, over 256 presets as scene, 21 rules of each scene (10
points, 10 regions, and 1 line)
Temperature Range: | -20 ° C to 150 ° C (-4 ° C to 302 ° F)
Temperature Accuracy: | ±8 ° C (14.4 ° F)
Fire Detection: | Support 10 fire points





Thermal Module
Image sensor: | Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution: | 640*512
Detector Pitch: | 17um
Response Wavebond: | 8um to 14um
NETD: | < 40mk(@25°C,F#=1.0)
Lens (focal length): | 45 mm to 180 mm
MRAD: | 0.38 to 0.09 mrad
Field of View: | WIDE: 13.8° × 11° ; TELE:3.46° × 2.77°
Min. Focusing Distance: | 5m
F number: | 1.2



PTZ
Movement Range: | Pan: 360° Continuous Rotate; Tilt: From -45 ° to + 45 ° (auto flip)
Pan Speed: | Configurable, From 0.01° /s to 40° /s
Tilt Speed: | Configurable, From 0.01° /s to 20° /s
Proportional Zoom: | Support
Presets: | 300
Patrol Scan: | 8; Up to 32 Presets Per Patrol
Pattern Scan: | 4; More Than 10 Minutes Per Pattern
Power Off Memory: | Support
Park: | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PT Status: | Turn On/Turn Off
Scheduled Task: | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama
Scan/Doom Reboot/Doom Adjust/Aux Output






Integration
Alarm Input: | Up to 7-ch Relay Input (0-5V DC)
Alarm Output: | Up to 2-ch; Support Alarm Linkage
Alarm Action: | Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email
linkage
Audio Input: | LINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
Audio Output: | Linear Level; Impedance: 600Ω
Communication Interface: | Built-in RJ45; 10M/100M Ethernet Interface
Onboard Storage: | Built-in Micro SD/SDHC/SDXC Card Slot, Up to 64GB; Support Manual/Alarm Recording
Analog Video Output: | 1.0V [p-p]/75Ω, PAL/NTSC/BNC
RS485: | Half-Duplex; HIKVISION, PELCO-P and PELCO-D Self-adaptive
API: | Open-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
Client: | iVMS-4200
Web Browser: | IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages




Network
Main Stream: | Optical: 50Hz:25fps(1920× 1080), 25fps(1280× 960), 25fps(1280× 720)
Optical: 60Hz:30fps(1920× 1080), 30fps(1280× 960), 30fps(1280× 720)
Thermal: 50fps(640 × 512)
Sub Stream: | Optical: 50Hz: 25fps (704 × 576, 352 × 288, 176 × 144)
Optical: 60Hz: 30fps (704 × 480, 352 × 240, 176 × 120)
Thermal: 50fps (384×288)
Video Compression: | H.264 (Baseline/Main/High Profile) /MJPEG/MPEG4
Audio Compression: | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols: | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,I
GMP,ICMP,DHCP, PPPoE, Bonjour
Simultaneous live view: | Up to 20-ch
User/Host Level: | Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures: | User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control,
IP address filtering



General
Menu: | English
Wiper: | Support
Power: | 48V DC/5A, 220W
Working Temperature/ Humidity: | From -40° C to 60° C (-40° F to 140°F); Humidity: 90% or Less
Protection Level: | IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection



Wide Range Coverage
Lens (focal length): | 180mm
Detection range (Vehicles): | 16235m
Detection range (Humans): | 5294m
Recognition range (Vehicles): | 4059m
Recognition range (Humans): | 1324m
Identification range (Vehicles): | 2029m
Identification range (Humans): | 662m
Smart Functions Range
Lens (focal length): | 180mm
VCA range (humans): | 1296m
VCA range (Vehicles): | 3600m
Temperature measurement (Object:2*2m): | 4212m
Temperature measurement (Object:1*1m): | 2124m
Fire Detection (Object:2× 2 m): | 10584m
Fire Detection (Object:1× 1 m): | 5292m
