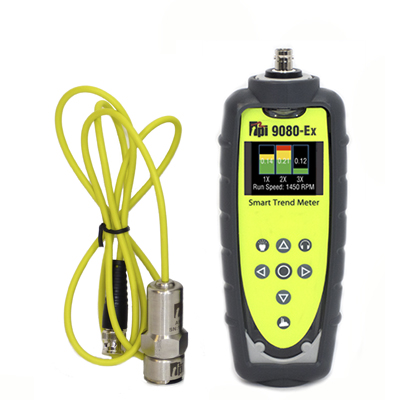

TPI 9080-Ex Intrinsically Safe Smart Vibration Meter Analyses Interprets and Trends readings

The TPI 9080-Ex is an intrinsically safe, simple, easy to use vibration analyser & smart trend meter that records, analyses and displays vibration signals at the push of a button.

Identify the vibration problem: unbalance, misalignment or looseness; in addition to the bearing condition. Included VibTrend standard software gives you greater ease of use and flexibility. Windows 10™ compatible.

* Store analyse and report on all your vibration parameters in one place; unlimited assets with 10 readings per asset with A9084 VibTrend Pro software supplied as standard.
* All information is just a click away. Color coded alarms highlight problems. Trend lines show problems before they happen.
* Overall machine and bearing conditions: vibration values are displayed with color coded alarm levels for ISO values and Bearing Damage (BDU).
* Identify complex issues: 800-line spectrum with zoom and cursor.

Intrinsically Safe Certificate Numbers: IECEx BAS 16. 0131X Baseefa 16ATEX0182X

Intrinsically Safe. IEC Ex/ATEX Ex ib IIC T4 Gb
(-20°C < Ta < +40°C)
Certificate Numbers: IECEx BAS 16. 0131X Baseefa 16ATEX0182X

Model 9080-Ex Features:

* Collect data
* Trend data using VibTrend software
* Intrinsically Safe cable mounted accelerometer with magnet
* Built-in Bluetooth communication capability
* USB docking station to download to a PC
* ISO built-in Alarms
* Easily identify bearing problems with BDU Reading
* Easily identify problems with built-in band filters:
* 1X (unbalance)
* 2X (misalignment)
* 3X (looseness)
* 800 line FFT (spectrum)
* Listen to bearing noise with optional Bluetooth headphones
* Ruggedized IP67 case
* 1-year Limited Warranty

Please Note: The 9080-Ex can be used with non-intrinsically safe accessories in non hazardous areas. Only the 9080-Ex and A9093 intrinsically safe accelerometer should be taken into hazardous areas.

Downloads

 IECEx_BAS_16.0131X_0.pdf

 Q8-A4-9080-Ex-Data-Sheets-0818_Mid-comm-co.pdf
