CK7xA ATEX - PDA / handheld PC for Zone 2/22

Call for Price
*Price may change due to echange rate.
SKU
6758675676

This product is EOL (End Of Life)

Balancing cost control with customer satisfaction requires true supply chain agility. Delivering on that vision requires your staff to be equally agile, with the ability to react to every situation quickly, confidently and accurately. However, finding the optimal rugged mobile business solution to achieve supply chain agility can often present another balancing act: satisfying the needs and preferences of operations management, users and IT, without trade-offs and sacrifices. CONFIGURE NOW INQUIRE NOW

This product is EOL (End Of Life)

CK7xA ATEX - PDA / handheld PC for Zone 2/22



Every Second Counts

When workload demands shift unexpectedly, the CKx gives you the flexibility to redeploy staff without consideration to the tools needed to get the job done.

As a result, workers can quickly and confidently transition to tasks that require near or far scanning, speech, voice, and image capture, without wasting time finding and reorienting themselves on unfamiliar devices.



Features:

CK70A / CK71A ATEX

* ATEX / IECEx certified (Zone 2/22)

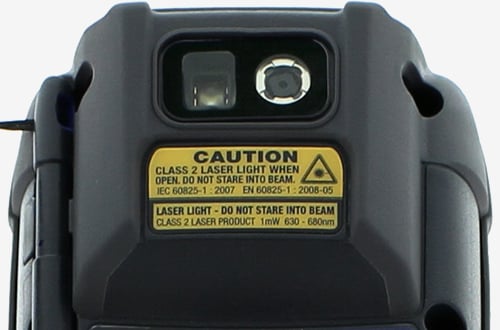

* Industry's fastest imaging engine delivering superior motion tolerance, laser aiming system, and optimized scanning angle for maximum productivity
* On-board diagnostics and INcontrol Managed Services provide device health visibility
* Best in class battery life for longer run time



Technical Data:

CK70A ATEX

* 12% smaller and lighter than leading devices in the ultra-rugged class
* Flexible radio technology provides optimal network coverage and a superior solution for implementing least cost routing strategies

CK71A ATEX

* 31% smaller and lighter than leading devices in the ultra rugged class
* Dual band 802.11n radio for pervasive wireless coverage



CK70A ATEX Dimensions with battery L x W x D: 23.7 x 8.0 x 4.3 cm (9.33 x 3.16 x 1.69 in)
Weight: 562 g (19 oz) with battery
Width: grip area 6.42 cm (2.53 in)
CK71A ATEX Dimensions with battery L x W x D: 23.7 x 8.0 x 5.0 cm (9.33 x 3.16 x 1.98 in)
Weight: 584 g (19.75 oz) with battery
Width: grip area 6.42 cm (2.53 in)
Operating Temperature -20° C to +50° C (-4° F to +122° F)
Storage Temperature -30° C to +70° C (-22° F to +158° F)
Charging Temperature +5° C to +35° C (41° F to 95° F)
Relative Humidity Non-condensing, 95%
Rain & Dust Resistance IP67
Drop Specification 2.4 m (8ft.) to concrete per MIL-STD 810G,
1.8m (6 ft) to concrete across operating temperature range per MIL-STD 810G
2,000 (1m) tumbles per IEC 60068-2-32 specification
Electrostatic Discharge +/- 15 kV air discharge;
+/- 8 kV direct discharge
Battery Pack 3.7 V, 5200 mAh; IEEE 1725 compliant, Li-Ion, removable, rechargeable
Operating System Microsoft Windows Embedded Handheld built on Windows 6.5.3 technology
Multi-Engine Processor Architecture Texas Instruments 1GHz OMAP3 multi-engine processor architecture
Memory and Storage RAM: 512 MB
ROM: 1 GB Flash
Customer-accessible microSD slot for removable memory cards up to 32 GB
Display • 8.9 cm (3.5 in) Transmissive VGA
• 480 x 640 pixels
• 65,536 (16 bit RGB) Colors
• High-Durability Touch Screen
• LED Backlight
• Ambient Light Sensor
Standard Communications USB - Full Speed 2.0 Host©, USB - Full Speed 2.0 Client© IrDA
Device Management Intermec SmartSystems™ support includes ScanNGo provisioning for use alone or with device management software from Intermec ISVs
Device Health Monitoring Remote access requires SmartSystem Management option
Application Development Intermec Developer Library www.intermec.com/dev
Imaging Solutions Intermec Shipment Address
Verification (SAV) and Mobile Document Imaging (MDI) are compatible, licensed and sold separately
Web Browsing Intermec HTML5 Browser
Data Management Skynax® Mobile Communications
Wireless LAN IEEE® 802.11 a/b/g/n Dual Band WLAN
Security WiFi Certified for WPA and WPA2, WAPI Certified
Authentication 802.1x
Cisco Compatibility CCXv4
Encryption WEP (64 or 128 bit), AES, TKIP
Wireless PAN: BT Class II, Version 2.1+EDR
Operating channels 0 to 78 (2402-2480 MHz)
Data Rates 1, 2, 3 Mbps
Antenna: Internal
Accelerometer Embedded accelerometer enables automatic or application-specific features such as screen rotation or system suspend
Audio Support Supports VoIP / Speech recognition / Push to talkapplications;front and rear speakers;rear speaker >80 dB at 40 cm (15.7 in);Front receiver and front panel microphone for handset audio communication and audio recording;Wireless Bluetooth headset support;Wired headset support via snap on adapter
Integrated Scanner Options EV12 linear Imager with laser-like aimer;
Capable of scanning 1D barcodes at standard range EA30 high performance motion-tolerant 2D Imager;
white LED illumination;red laser aimer optimized for all lighting conditions;
Capable of scanning all common 1D and 2D barcodes;
1D as small as 5 mil;PDF as small as 6.6 mil;
Data Matrix as small as 7.5 mil;and standard UPC codes from distances up to 33 cm (13 in) EX25 near/far 2D Imager;
Capable of scanning 1D and 2D barcodes from 15.2 cm to 15.2 m (6 in to 50 ft)
Integrated Camera Option 5 Megapixel auto focus color camera with LED flash





Ex Certificates:




  • II 3G Ex ic IIC T4 Gc
  • II 3D Ex ic IIIB T130°C Dc IP54






  • Ex ic IIC T4 Gc IP64
  • Ex ic IIIB T130°C Dc IP54

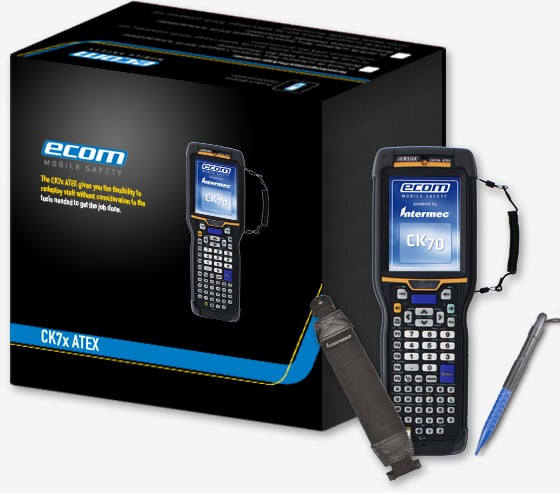

Scope of Supply:

* CK7xA ATEX
* Battery
* Stylus
* Hand strap
* Quick Start Guide
* Safety Instructions

Downloads

 CK7xA-datasheet.pdf



*bij order waarde beneden de 450 euro 25 euro klein order toeslag!
Prices as shown on this store are indicational and subject to 21% tax,
currency changes and shipping costs. For an accurate and special price please call or e-mail our support.

More Information
Discontinued Yes
