Agile X tablet Atex Zone 2 Windows 10 LTE
*Price may change due to echange rate.
The BARTEC Agile X industrial tablet PC is a purpose-built UL Division 2 and ATEX Zone 2 device for enterprise use in rugged environments. Packed with features, the Agile X is the perfect tool for maintenance technicians, operators, engineers and project managers in the field. BARTEC has optimized this device for maximum productivity. It includes 5 MP rear camera for worksite capture, 2 MP front-side camera for video calling, high accuracy GPS, and optional integrated barcode reader. The Agile X also features a rear-side expansion slot, allowing the tablet to be extended with custom-designed sensors.
This product is EOL (End Of Life)
Agile X tablet Atex Zone 2 Windows 10 LTE
The BARTEC Agile X industrial tablet PC is a purpose-built UL Division 2 and ATEX Zone 2 device for enterprise use in rugged environments. Packed with features, the Agile X is the perfect tool for maintenance technicians, operators, engineers and project managers in the field. BARTEC has optimized this device for maximum productivity. It includes 5 MP rear camera for worksite capture, 2 MP front-side camera for video calling, high accuracy GPS, and optional integrated barcode reader. The Agile X also features a rear-side expansion slot, allowing the tablet to be extended with custom-designed sensors.
The device leverages the full power of Windows Embedded 8.1 Industry, the ultimate industry-ready enterprise-level operating system. Windows Embedded 8.1 Industry has all the power of Windows 8.1 Pro but with added security features such as device lockdown to avoid, for example, registry alteration or USB device addition. A seamless transition from the office to the field with office and vehicle docks can be created. Wireless LAN, Bluetooth and optional LTE also provides realtime data transfer and connectivity to field workers.
The Agile X is a military-spec rugged mobile device, withstanding shock, vibration and 4-foot drops to concrete. It can be operated in a wide temperature range of -20 °C up to +40 °C, allowing the tablet to be used in the toughest of industrial environments. With IP 65 rating, the device is dust tight, and can withstand water jets against the device enclosure. So, it is easily cleaned after a rough day in the field.

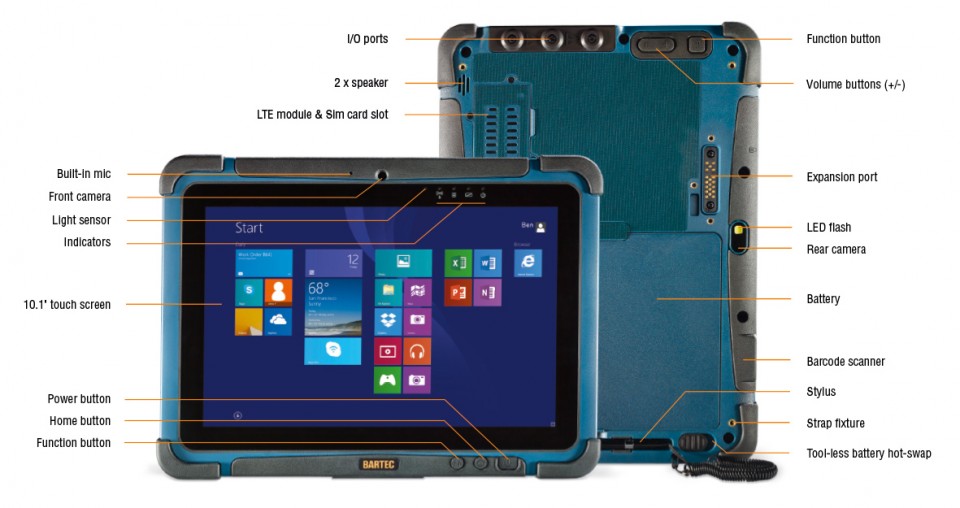

Features:
- 10.1" High Resolution
- multi-touch display
- Light, thin-form device
- for easy handling
- Enterprise-ready with Windows Embedded 8.1 Industry pro
- High-efficiency Intel BayTrail-M Quad-Core 1.8 GHz processor
- Tool-less, hot swappable 8-hour battery option
- Built-in Wireless LAN and
- Bluetooth 4.0
- Optional LTE modules
- Optional integrated 1D/2D Imager
- Extra expansion port in rear for custom-designed sensors
| Ex protection | Data Capture | ||
| ATEX | Ex II 3G Ex ic IIC T4 Gc | Front Camera | 2MP |
| UL | Class I Division 2 Groups A, B, C, D T4 A | Rear Camera | 5 MP with 1W LED flash |
| System | Barcode Capture | Optional 1D/2D imager | |
| Processor | Intel BayTrail-M Quad-Core 1.8 GHz | Storage Option | 1 x Micro SD slot |
| Memory | 8GB SODIMM DDR3L-1600 | Warranty and Service | |
| Storage | 128GB mSATA MLC SSD | Warranty | Standard 3 years additionally |
| Operating System | Windows Embedded 8.1 Industry Pro | Extended Warranty | 2 years on request |
| Ruggedness | Service Options | Full service packages available | |
| Shock, Vibration, Drop | Military grade: MIL-STD-810G | External I/0 | |
| Protection Class | IP 65 | Microphone | 1 x Built-in mic |
| Certifications | CE, FCC, UL60950, ISA12.12.01, EN60601 | Speakers | 2 x 1W Built-in speakers |
| Display and touch | HDMI | 1 x Micro HDMI | |
| Size | 10.1" | Combo Connector | 30-pin (Giga-LAN or RS232) |
| Resolution | 1920 x 1200 | USB | 1 x USB 3.0 |
| Brightness | 700 nits (full daylight viewable) | Audio Connector | Combo mic in/line out |
| Contrast Ratio | 800:01:00 | In the box | |
| Touch | Projective capacitive multitouch | Battery | 8-hour standard battery |
| Temperature range | Power | Adapter and cable (US or EU) | |
| Inside Ex Area | -20 °C up to +40 °C | Strap | Rear-mountable hand scrap |
| Outside Ex Area | -20 °C up to +60 °C | Stylus | Yes. Spare cap also included. |
| Storage | -30 °C up to +70 °C | Covers | Standard I/O cover |
| Operating Humidity | 30 % ~ 90 % (non-condensing) | Sensors | |
| Communication | Light Sensor | Yes | |
| Wi-Fi | IEEE 802.11 a/b/g/n | Gyrometer | Yes |
| Bluetooth | Bluetooth 4.0 (Class I) | G Sensor | Yes |
| GPS | up to 2.5m accuracy | E-compass | Yes |
| LTE Module | US and EU network options | Power | |
| Security | Battery Life | up to 8 hours | |
| Lockable | Password security for user & HDD | Battery | 7.4 V, min. 5300 mAh Li-Polymer |
| Securable | Kensington lock slot | Charge Time | 2.5 hours |
| Trustable | Trusted Platform Module V1.2 | Adapter | 100 to 240 Vac, 50 to 60 Hz / 19 Vdc |
| Traceable | Computrace® theft protection support | Size and Weight | |
| Size | 271.8 x 197.2 x 19 mm | ||
| Weight | 1.2 kg with standard battery | ||
DOWNLOADS
Certificate
| Discontinued | Yes |
|---|
-

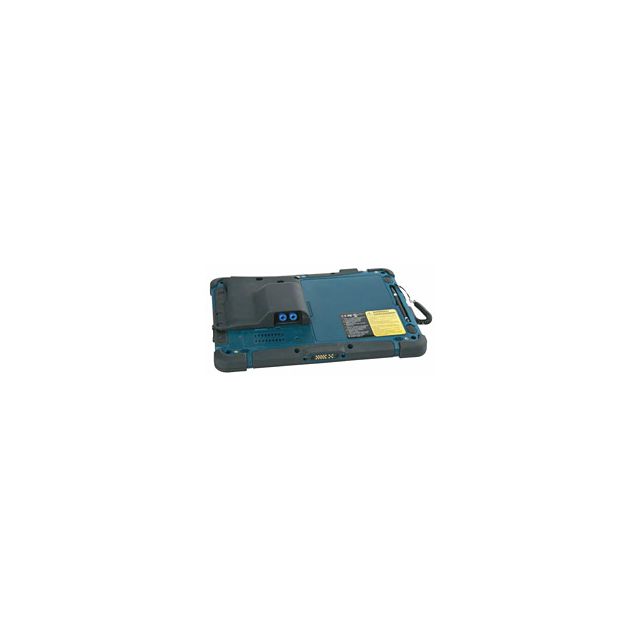

![HART Add-On Module Zone 2/22 - Agile X Tablet PC]()
