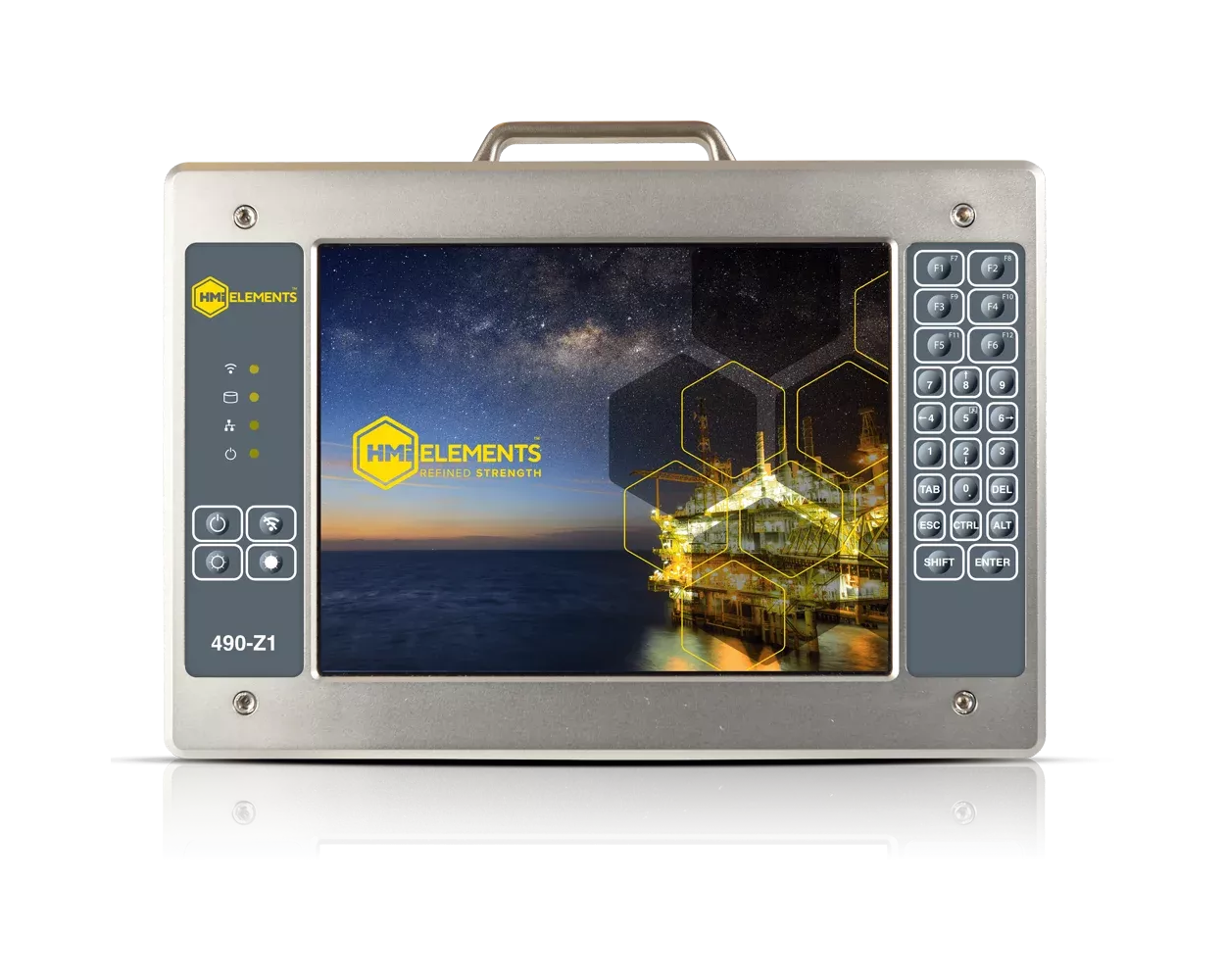

Zone 1 PC - HMI 490-Z1 - ATEX Zone 1/21
SKU: 490-Z1-HMI
- Certified for ATEX Zone 1 & 21 - Full hazardous area compliance
- Modular design for easy field maintenance
- Windows 10 Enterprise powered by Intel Quad Core
- Lightweight at just 15kg (33 lbs) - Easy installation
- 12.1" sunlight-readable touchscreen, glove-friendly
- IP66 rated for harshest industrial environments
ZONE 1 HUMAN-MACHINE INTERFACE - HMI 490-Z1 - ATEX ZONE 1/21
ATEX/IECEx/UKEX/NEC 505 Certificate Available.
The latest generation 12.1" Zone 1 HMI unit - Innovative modular design for unmatched field serviceability.
The HMI Elements 490-Z1 is a fully certified Zone 1 Human-Machine Interface designed for the most demanding hazardous environments. Certified for ATEX Zone 1 & 21, IECEx, UKEX, NEC 505, and CSA 22.2 Section 18, this makes it the complete solution for explosive atmospheres where gas, vapor, and dust risks are present across global markets.
This stand-alone, IP66-rated unit is engineered to perform in the harshest Zone 1 environments while maintaining exceptional usability and reliability. Its innovative modular construction allows for easy field maintenance, reducing downtime and operational costs significantly.
Built for industrial excellence, it features a Quad Core Intel Celeron N2930 processor, 8GB DDR3 RAM, and high-brightness 600-nit display that remains readable in direct sunlight. The multi-touch, glove-friendly PCT touchscreen ensures reliable operation even with protective equipment.
WHY YOU NEED THIS HMI
Operating in Zone 1 environments demands uncompromising safety without sacrificing functionality. Whether you're in oil & gas facilities, petrochemical plants, pharmaceutical manufacturing, or offshore installations, you need a fully functional HMI that delivers reliable performance while meeting the strictest safety certifications.
The 490-Z1's modular design means reduced maintenance costs and minimal downtime - critical factors in hazardous area operations. Unlike traditional sealed units, field-serviceable components can be replaced on-site, keeping your operations running.
With its rugged aluminum construction, IP66 protection, and extreme temperature range (-40°C to +60°C), plus versatile mounting options, it adapts to any industrial scenario while maintaining consistent, reliable performance.
INDUSTRY-LEADING FEATURES
Certifications:
- ATEX: II 2(2) GD, Ex eb ib mb [ib] IIC T4 Gb, Ex tb [ib] IIIC T135°C Db
- IECEx: Ex eb ib mb [ib] IIC T4 Gb, Ex tb [ib] IIIC T135°C Db
- USA: Class 1, Zone 1, AEx eb ib mb [ib] IIC T4, Class II, Zone 21, AEx tb [ib] IIIC T135°C
- Canada: Ex eb ib mb [ib] IIC T4 Gb, Ex tb [ib] IIIC T135°C Db
Performance:
- Intel® Quad Core Celeron N2930 1.83GHz processor
- Windows 10 Enterprise LTSB/LTSC
- 8GB DDR3 SDRAM
- 160GB or 320GB mSATA SSD storage
Display:
- 12.1" LCD with LED backlight, 600 nits sunlight-readable
- 1024 x 768 resolution
- Projected Capacitive Technology (PCT) - Multi-touch, glove-friendly
Connectivity:
- 10/100/1000 Mbps Ethernet (optional)
- Fiber optic port via 850nm or 1310nm (optional)
- Wi-Fi 802.11 ac/a/b/g/n (2.4 and 5 GHz), Bluetooth
- Intrinsically Safe PS/2 interface (optional)
- USB 2.0 ports (internal and optional external)
Construction:
- Precision-machined aluminum enclosure
- IP66 rated, NEMA 4X compliant
- Modular design for field maintenance
- Operating temperature: -40°C to +60°C (-40°F to +140°F)
Installation:
- Lightweight: <15kg (33 lbs)
- Compact: W 385 x H 260 x D 116mm (15.2 x 10.2 x 4.6 inches)
- Versatile mounting: Yoke, VESA, and Panel mounting options
- Flexible connectors: Rear or bottom mounted
Standards Compliance:
- Shock: BS EN60068-2-27:2009
- Vibration: BS EN60068-2-6:2008
- Humidity: 10-90% non-condensing (operating)
