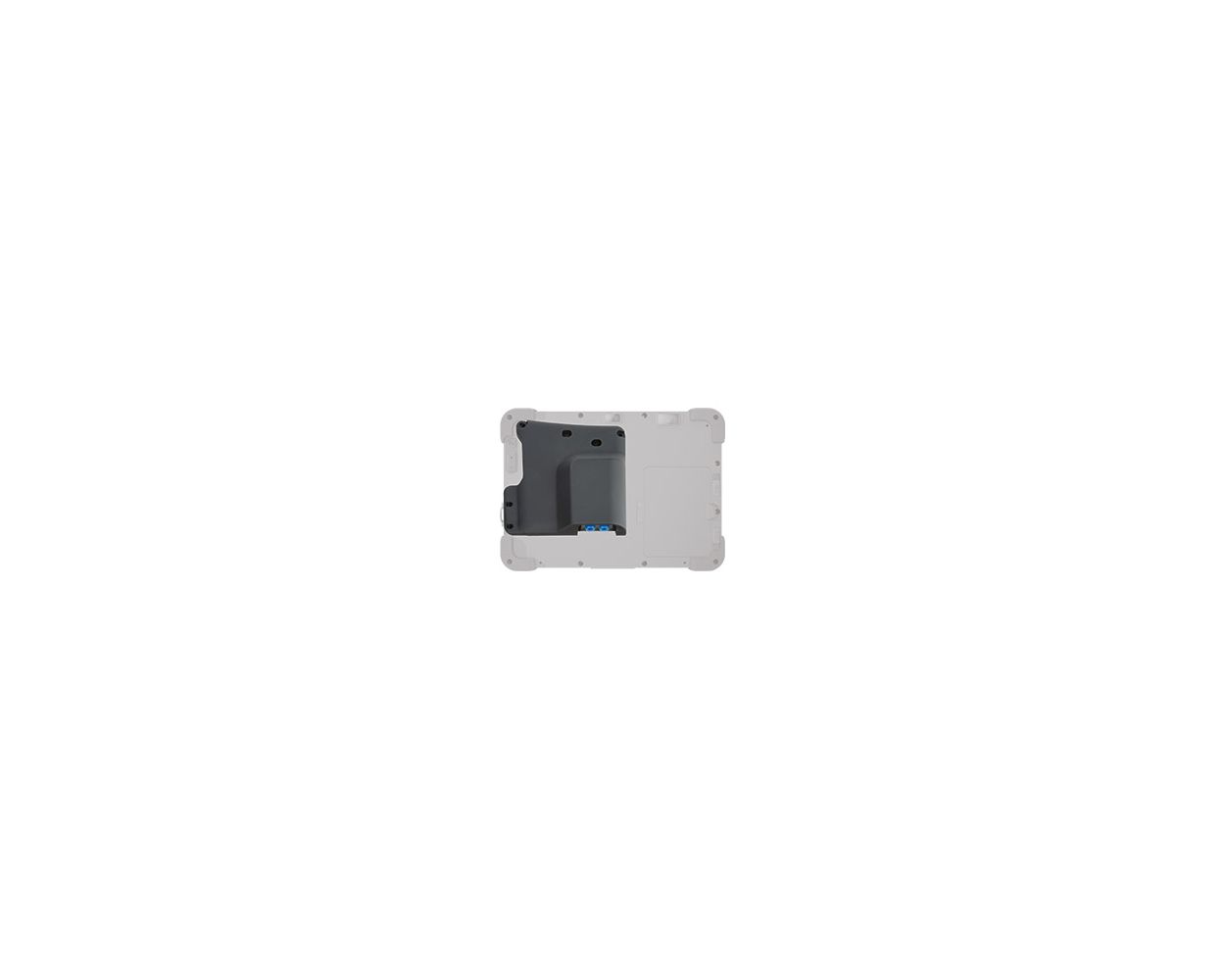

HART Add-On Module Zone 1 - Agile X IS 10.1 Tablet PC
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
The HART Add-on module is a new extension module for Agile X and offers a HART modem function. It may be connected to a HART loop as secondary master and facilitates applications such as configuring the HART devices. Due to the Windows operating system, the user can deploy all current software solutions and communicate using the FDT/DTM industrial standard. Agile X equipped with HART Add-on module is the new safe solution when working in potentially explosive and non potentially explosive atmospheres: parameter assignment, configuration, measurement and office tasks can be carried out much easier, faster and more safely.
HART Add-On Module Zone 1 - Agile X IS 10.1 Tablet PC
The intrinsically safe combination of the Agile X IS tablet PC system and the newly developed HART Add-On Module makes it possible to perform diagnostics, set parameters and manage field devices much more quickly and efficiently.
Previously considerable time and effort was needed to diagnose problems and set the parameters on field devices. It was necessary to equip a laptop with a separate HART modem, but this was not allowed to be used simultaneously in an Ex area and non-Ex area. Use in the Ex area required a fire certificate with complicated approval procedure. The HART modem is used as an add-on module for the Agile X IS tablet PC system in its extension interface. Since the user is now able to switch safely between the Ex and non-Ex area, only one device is then needed for the wireless uploading or adjusting of the field devices distributed there, completely independently of the control system. The usual software solutions on the market may also be used on the Windows-based Agile X IS. Communication using the industrial standard FDT/DTM is therefore also possible.
Features
- Configure, set parameters, read out and measure HART devices in the Ex area
- Extension for the Agile X IS
- Available driver software makes it simple to install and set up
- Connection to HART loop as secondary master
- Hardware supports network diagnosis
Specifications
| Certification: |
ATEX Certification: II 2G Ex ia [ia Ga] IIC T4 Gb, EPS 15 ATEX 1 069 X IECEx Certification/UL: Ex ia [ia Ga] IIC T4 Gb , EPS 15.0065X |
| Size (length x width x height): |
125 mm x 125 mm x 24 mm |
| Weight: | 200 g |
|
Protection class: (IEC 60529): |
Mounted on tablet PC IP 54 Connector strip (PoGo pins) IP 20 |
| Operating temperature: |
In the Ex area -20 °C to +50 °C In the safe area -20 °C to +60 °C |
| Storage temperature: | -30 °C to +70 °C |
| Air humidity during operation: | 30 % to 95 % (non-condensing) |
Downloads
Datasheet.pdf17-A1Z0-0005
For orders under € 450 we charge € 25 order costs.
Prices shown on this website are before taxes, currency changes and shipping costs.
For an accurate price please contact our sales team at info@comm-co.com
| Discontinued | Yes |
|---|
-
![AGILE X IS 10.1 TABLET PC ZONE 0 + DIV 1 INDUSTRY TABLET PC - COVER MODULE]()
AGILE X IS 10.1 TABLET PC ZONE 0 + DIV 1 INDUSTRY TABLET PC - COVER MODULEEnd of life
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate. -

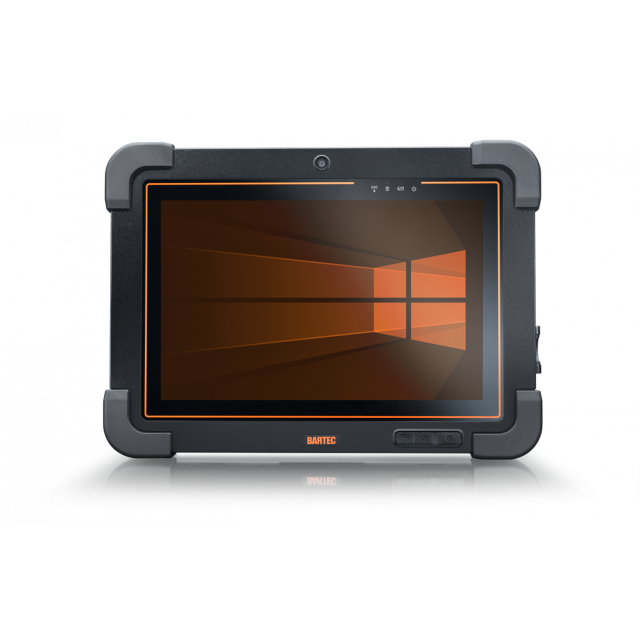

![AGILE X IS 10.1 TABLET PC ZONE 0 + DIV 1 INDUSTRY TABLET PC]()
