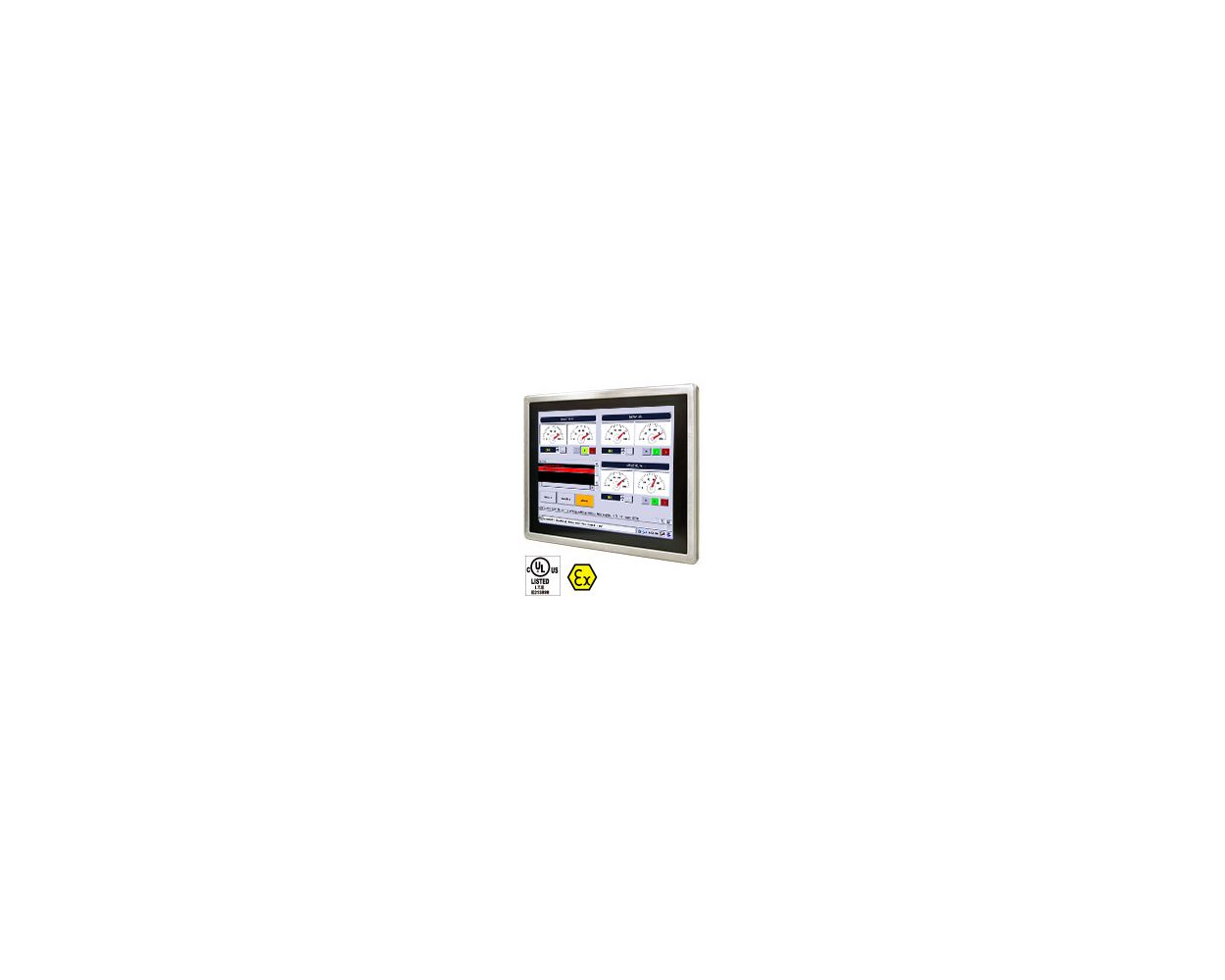

R15ID3S-65EX

€7,500.00
*Price may change due to echange rate.
SKU
646544442

Features:

This Equipment is ATEX Zone 2 certified for Hazardous area applications and suitable for use in Class I, Division 2, Hazardous area

‧Wide power input 9-36V DC with isolation protection
‧Special IP65 connectors with cover plate
‧Designed with NEMA 4 (IP65) dust proof and water protection
‧Robust and fanless design for reliable operation
‧Fanless Cooling System and Ultra Low power consumption
‧Support Intel Atom N2600 processor
‧ELO 5W Resistive Touch ( Explosion-proof )

R15ID3S-65EX

LCD Panel Specification
Panel_Size 15"
Active Display Area 304.1 (H) x 228.1 (V)
Pixel Pitch 0.297 (H) x 0.297 (V)
Panel_Display Resolution
1024 x 768
Panel_Contrast Ratio 700:1 (typ.)
Display Color 16.2M (6 bits + FRC)
Panel_Brightness 550 (typ.)
Panel_Viewing Angle -80~80 (H); -70~70 (V)
Recommend Resolution
1024 x 768
@60Hz, 75Hz
Power Management VESA DPMS Compliant
Plug Play VESA DDC 1/2B
Touch_SensorType 5-Wire Resistive

System Specification
FormFactor 3.5"
Processor Socket Onboard
Processor Intel® Atom Dual Core N2600 1.6GHz
Chipset Intel® NM10
Memory 1 x DDR3 SO-DIMM 1333 MHz (default 4GB)
BIOS AMI 16 Mbit Flash
VGA Controller Integrated Graphics
LCD Support 24 bit single-channel LVDS
Ethernet Dual Broadcom BCM57780 GbE controller
Audio Realtek ALC886 HD Audio Codec
SATA 1 x SATA II
Serial 1 x RS-232,1 x RS-232/422/485(inside)*
USB 2 x USB
Watchdog Timer 256 Levels
Expansion Slots 1 x Mini PCI (internal)
Storage mSATA SSD (default 64GB, option up to 128GB)
OS Windows Embedded Standard 7 Windows 7 Pro for Embedded Systems
Power Adapter DC IN 12V
Environment Environment & Dimensions
Temperature Operating: -10°C to +50°C
Humidity 10% to 95% (non-condensing)
Cooling Fanless cooling concept
Shock MIL-STD-810F/G Method 516.6
Vibration MIL-STD-810F/G Method 514.6Packing:: 5 Hz ~ 500 Hz/ 2.16 Grms/ 3 Axis

I/O Connectors
Back Panel I/O Port
  • 1 x COM
  • 1 x LAN
  • 2 x USB
  • 1 x Power input

Standard and Certification
Certification
  • UL60950-1, CSA C22.2 No. 60950-1-07, EN60950-1, IEC60950-1
  • ATEX zone 2 EX II 3 G Ex ic nA IIC Gc
  • UL Class I, Div.2, Groups ABCD T4 ANSI/ISA12.12.01 CAN/CSA C22.2 No. 213-M1987
  • Note: All Specifications are subject to change without prior notice!
    *If you use SBC on-board RS485, you need to set appropriate state of RTS line before sending/receiving data in your software program.We offer additional board that can perform auto-direction hardware function.



*bij order waarde beneden de 450 euro 25 euro klein order toeslag!
Prices as shown on this store are indicational and subject to 21% tax,
currency changes and shipping costs. For an accurate and special price please call or e-mail our support.
