ATEX CorDEX UT5000 Ultrasonic Thickness Gauge Tester
*Price may change due to echange rate.

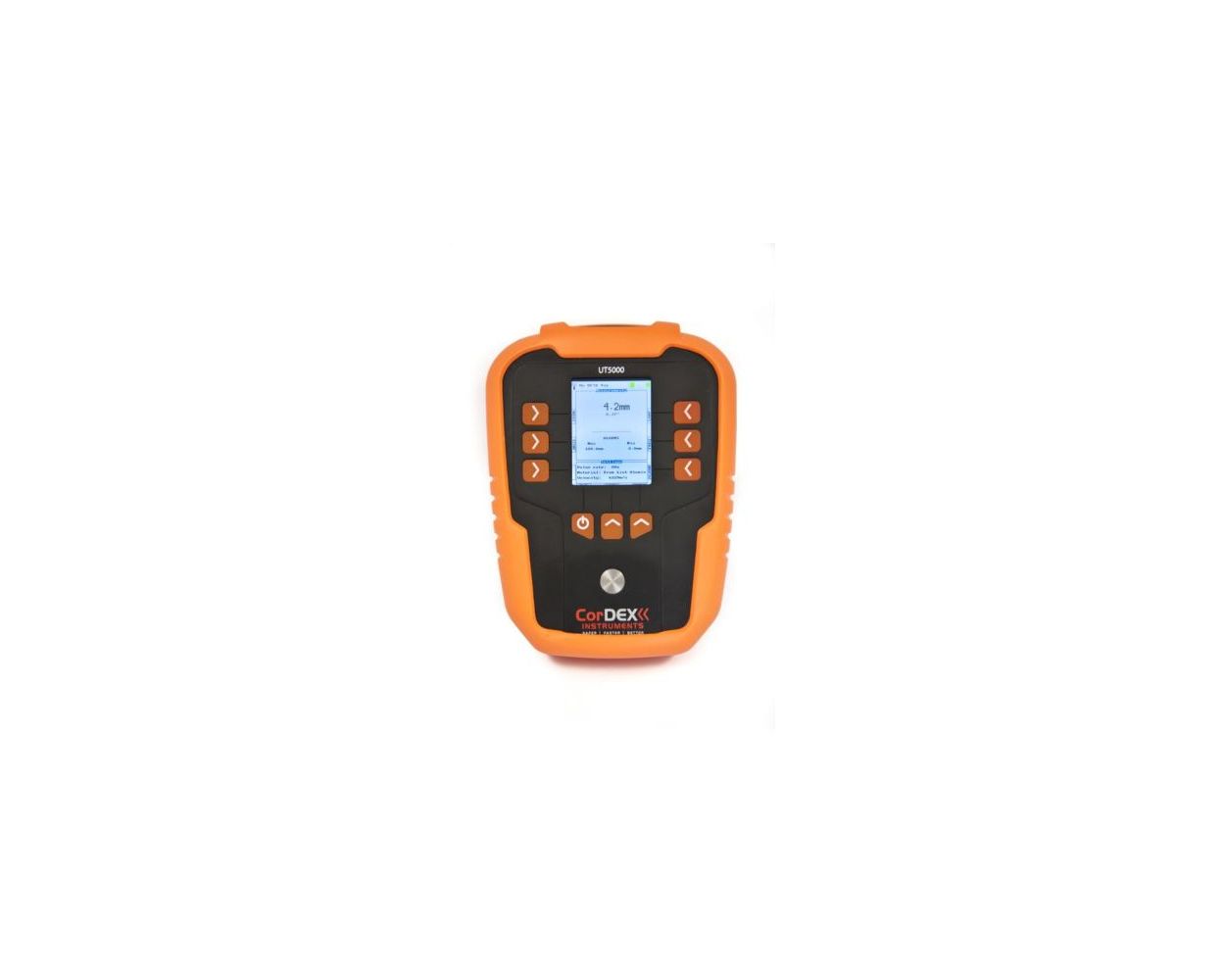

ATEX UT5000 Ultrasonic Thickness Gauge Tester
ATEX/IECEx II 2G Ex ib IIC T4 Gb certified)
Advanced RFID Ultrasonic ATEX Tester
The ATEX UT5000 Ultrasonic Thickness Gauge Tester is a top of te range Thickness Gauge Meter with ATEX and CSA Certification. The The ATEX UT5000 Ultrasonic Thickness Gauge Tester is certified for use in Zone 1 ICC T4. The ATEX Gauge Tester is for nondestructive testing of wall thickness where access is restricted to one side only.
A compact, simple to use ultrasonic thickness gauge, typically used for corrosion surveys and general thickness measurements on metallic and non-metallic materials. The ATEX UT5000 Ultrasonic Thickness Gauge Tester has an onboard selection table plus user defined value and a setpoint stored in the device memory and is automatically recalled when the RFID tag is scanned. The ATEX UT5000 Ultrasonic Thickness Gauge Tester has a internal storage for up to 1000 measurement points.
The New Standard For Ultrasonic Thickness Gauges
The ATEX UT5000 Ultrasonic Thickness Gauge Tester has a corrosion mode with continuous real time measurement and uses MultiECHO technology to reduce false readings from irregular echoes. The UTG uses an inbuilt material velocity table and has standard 4MHZ probe.
| ATEX/ IECEx Certified: | Zone 1 IIC T4 |
| CSA/ FM Certified: | CSA Class 1 Div 1 expected end 2011 |
| Display: | Multi-Function, Full Colour, Backlight |
| Data Storage: | 1000 Point Storage |
| Material Velocity Data: | Onboard selection table plus user defined value. Setpoint stored in device memory and automatically recalled when RFID tag is scanned. |
| Single Point Mode: | Yes |
| Continuous Mode: | Yes, Continuous measurement with Max, Min and Avg stored over inspected period |
| RFID Reader: | Yes |
| MultiEcho: | Yes, 4 consistent readings required |
| Accuracy: | +/- 0.05mm |
| Alarms: | High/Low, setpoints stored in device memory and automatically recalled when RFID tag is scanned |
| Probe: | 4MHZ (3mm-100mm) included |
Downloads
Product DatasheetImages
Videos
*Prices as shown on this store are indicational and subject to 21% tax, currency changes and shipping costs. For an accurate and special price please call or e-mail our support.
ATEX UT5000 Ultrasonic Thickness Gauge Tester
ATEX/IECEx II 2G Ex ib IIC T4 Gb certified)
Advanced RFID Ultrasonic ATEX Tester
The ATEX UT5000 Ultrasonic Thickness Gauge Tester is a top of te range Thickness Gauge Meter with ATEX and CSA Certification. The The ATEX UT5000 Ultrasonic Thickness Gauge Tester is certified for use in Zone 1 ICC T4. The ATEX Gauge Tester is for nondestructive testing of wall thickness where access is restricted to one side only.
A compact, simple to use ultrasonic thickness gauge, typically used for corrosion surveys and general thickness measurements on metallic and non-metallic materials. The ATEX UT5000 Ultrasonic Thickness Gauge Tester has an onboard selection table plus user defined value and a setpoint stored in the device memory and is automatically recalled when the RFID tag is scanned. The ATEX UT5000 Ultrasonic Thickness Gauge Tester has a internal storage for up to 1000 measurement points.
The New Standard For Ultrasonic Thickness Gauges
The ATEX UT5000 Ultrasonic Thickness Gauge Tester has a corrosion mode with continuous real time measurement and uses MultiECHO technology to reduce false readings from irregular echoes. The UTG uses an inbuilt material velocity table and has standard 4MHZ probe.
| ATEX/ IECEx Certified: | Zone 1 IIC T4 |
| CSA/ FM Certified: | CSA Class 1 Div 1 expected end 2011 |
| Display: | Multi-Function, Full Colour, Backlight |
| Data Storage: | 1000 Point Storage |
| Material Velocity Data: | Onboard selection table plus user defined value. Setpoint stored in device memory and automatically recalled when RFID tag is scanned. |
| Single Point Mode: | Yes |
| Continuous Mode: | Yes, Continuous measurement with Max, Min and Avg stored over inspected period |
| RFID Reader: | Yes |
| MultiEcho: | Yes, 4 consistent readings required |
| Accuracy: | +/- 0.05mm |
| Alarms: | High/Low, setpoints stored in device memory and automatically recalled when RFID tag is scanned |
| Probe: | 4MHZ (3mm-100mm) included |
Downloads
Images
Videos
*Prices as shown on this store are indicational and subject to 21% tax, currency changes and shipping costs. For an accurate and special price please call or e-mail our support.
| Discontinued | Yes |
|---|
