Radiation Dosage Monitor DoseRAE II (Non atex!)
*Price may change due to echange rate.
Non Atex!
This product is EOL (End Of Life)
Non Atex!
This product is EOL (End Of Life)

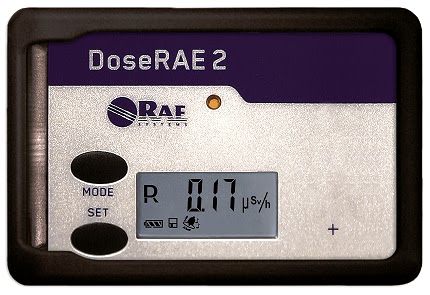

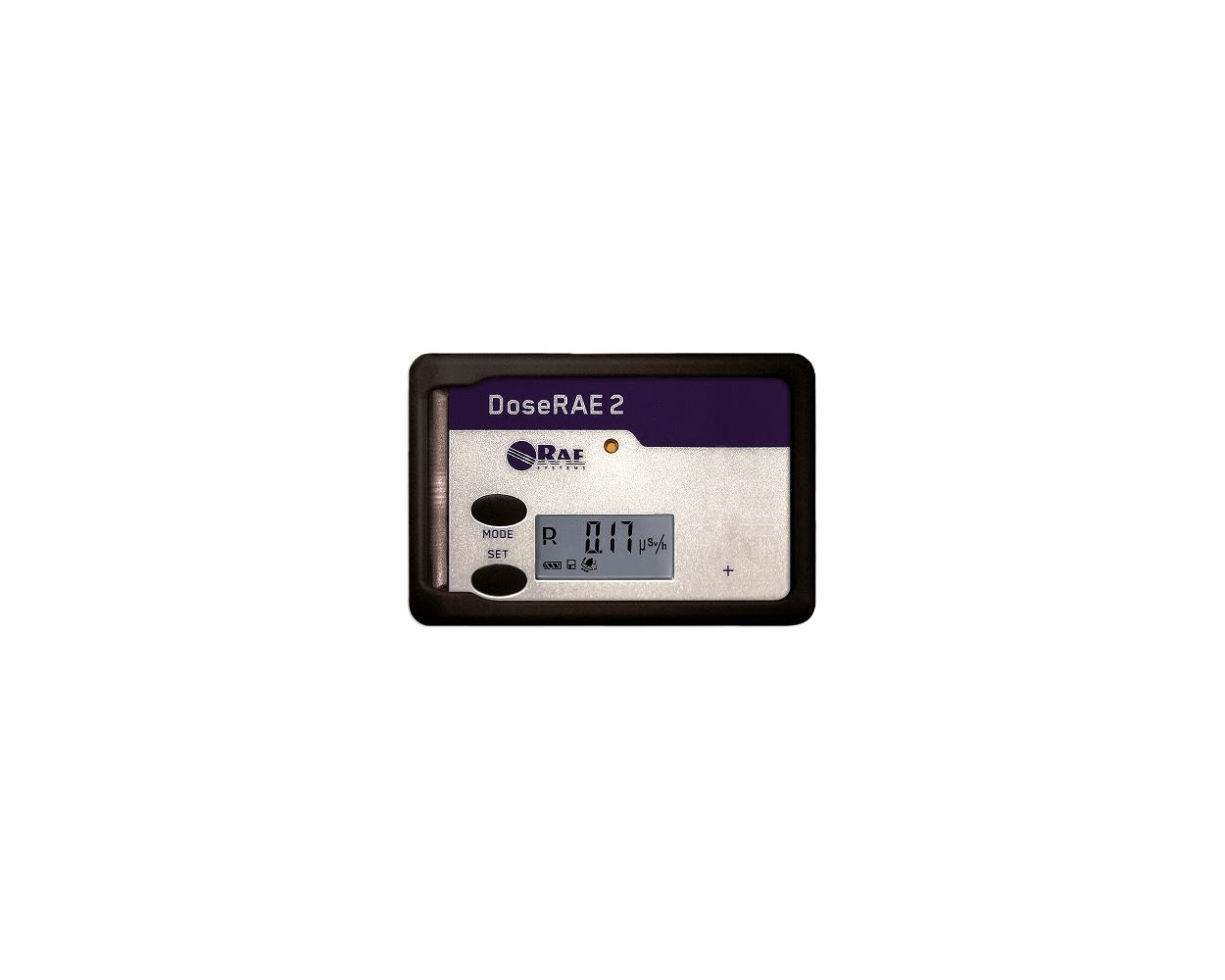

ATEX Radiation Dosage Monitor DoseRAE 2
Intrinsically Safe Personal Electronic Dosimeter
The ATEX Radiation Monitor DoseRAE 2 is a compact, direct-reading and alarming electronic personal radiation detector. The ATEX Radiation Monitor uses a diode and a scintillation crystal to detect X- and Gamma radiation. The ATEX Radiation Monitor provides real time monitoring of personal dose and dose rate, with real time monitoring allowing for immediate reaction in case of radiation occurences thus reducing the radiation exposure.
The ATEX Radiation Monitor measures dose equivalent and dose equivalent rate, the Personal ATEX Dosimeter provides the functions of both radiation meter and dosimeters. The ATEX Radiation Monitor measures radiation exposure and exposure rate, which is appropriate for controlling the exposure of emergency responders to photon radiation.
Dosimeter meets Detector
The ATEX Radiation Monitor contains two separate sensors, a Csl scintillator which provides fast response to low level radiation and a PIN diode which provides high dose rate range coverage and accurate measurements. The ATEX Radiation Monitor has a large 3000 point datalog capacity and an integrated loud audible, bright LEDs and vibration alarms.
The ATEX Radiation Monitor features:
- Stand-alone electronic dosimeter with LCD display
- Multiple units with reader and software can be used as a dosimetry system
- Continuous digital dose rate readout in rem/h, Sv/h and R/h
- Continuously accumulated total dose readout in rem, Sv and R
- Prominent visible, audible and vibration alarms
- Long calibration life
- Two operation keys, simple intuitive programming
Specifications
|
Gamma Sensors: |
CsI (TI) + photodiode (low environment radiation) |
|
Dose Rate Range: |
0.01 μSv/h to 10 Sv/h (1 μR/h to 1140 R/h) |
|
Accuracy of Dose Rate: |
±20% (from 10 μSv/h to 10 Sv/h or from 1.14 mR/h to 1140 R/h ) |
|
Dose Range: |
0 μSv to 10 Sv (0 μR to 1140 R) |
|
Dose Accuracy: |
±15% |
|
Energy Range: |
20 keV to 6 MeV for X- and gamma radiations |
|
Size: |
3.3" x 2.2" x 0.4" (85 x 55 x 9.6 mm) without clip |
|
Weight: |
1.8 oz. (50g) with battery and clip |
|
Battery: |
LIR2450 Rechargeable batteries |
|
Operating Hours: |
Up to 200 hours after each charge (one week continuous use) |
|
Datalog Size: |
More than 3000 data points |
|
Datalog Interval: |
User programmable, from 30 to 3,600 seconds |
|
Communication: |
USB interfaces with computer for datalog download |
|
Alarms: |
|
|
Alarm Settings: |
Dose alarm (adjustable from 1.0 μSv to 10 Sv or 114μR to 1140 R ) |
|
Temperature: |
-20º C to 50º C (-4º F to 122º F) |
|
Humidity: |
0% to 95% (non-condensing) |
|
IP Rating: |
IP-54 |
|
Shock Resistance: |
Passes drop test from 1.5 m (59") |
The ATEX Dosimeter Radiation Detector Comes With:
- DoseRAE 2 electronic personal dosimeter with clip

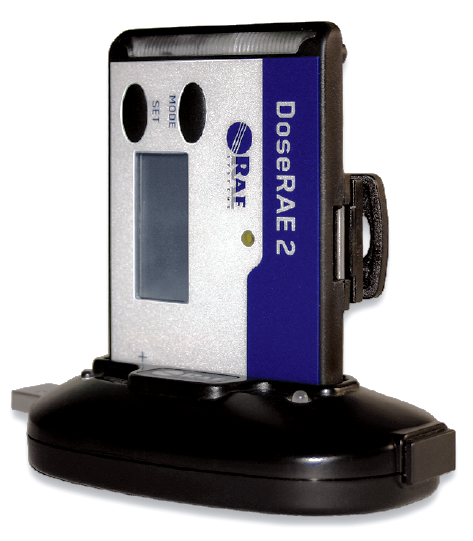

- Charging and PC communication cradle
- USB communication cable
- Protective silicone boot
- CD with (1) ProRAE Dosimeter instrument configuration and data management software and (2) User's Guide
- Protective pouch with alligator clip
- Calibration and test certificate
- Warranty/registration card
Downloads
Gallery
*Prices as shown on this store are indicational and subject to 21% tax, currency changes and shipping costs. For an accurate and special price please call or e-mail our support.
| Discontinued | Yes |
|---|
-
![ATEX Radiation Monitor T202]()

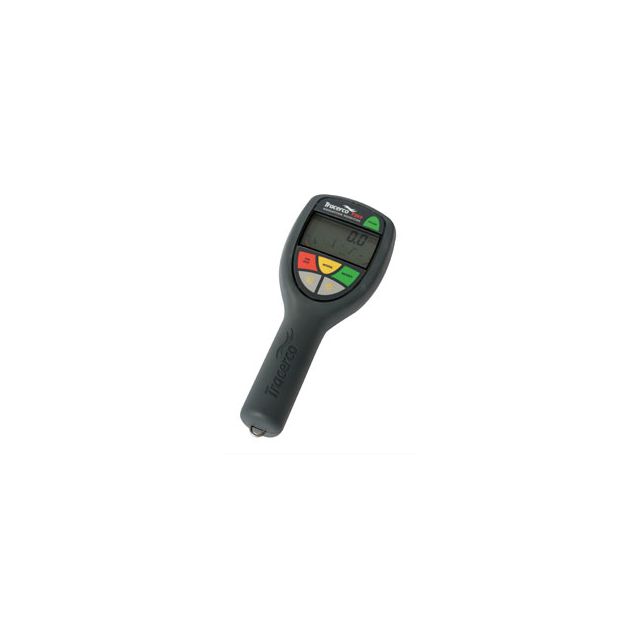

ATEX Radiation Monitor T202€6,723.82
