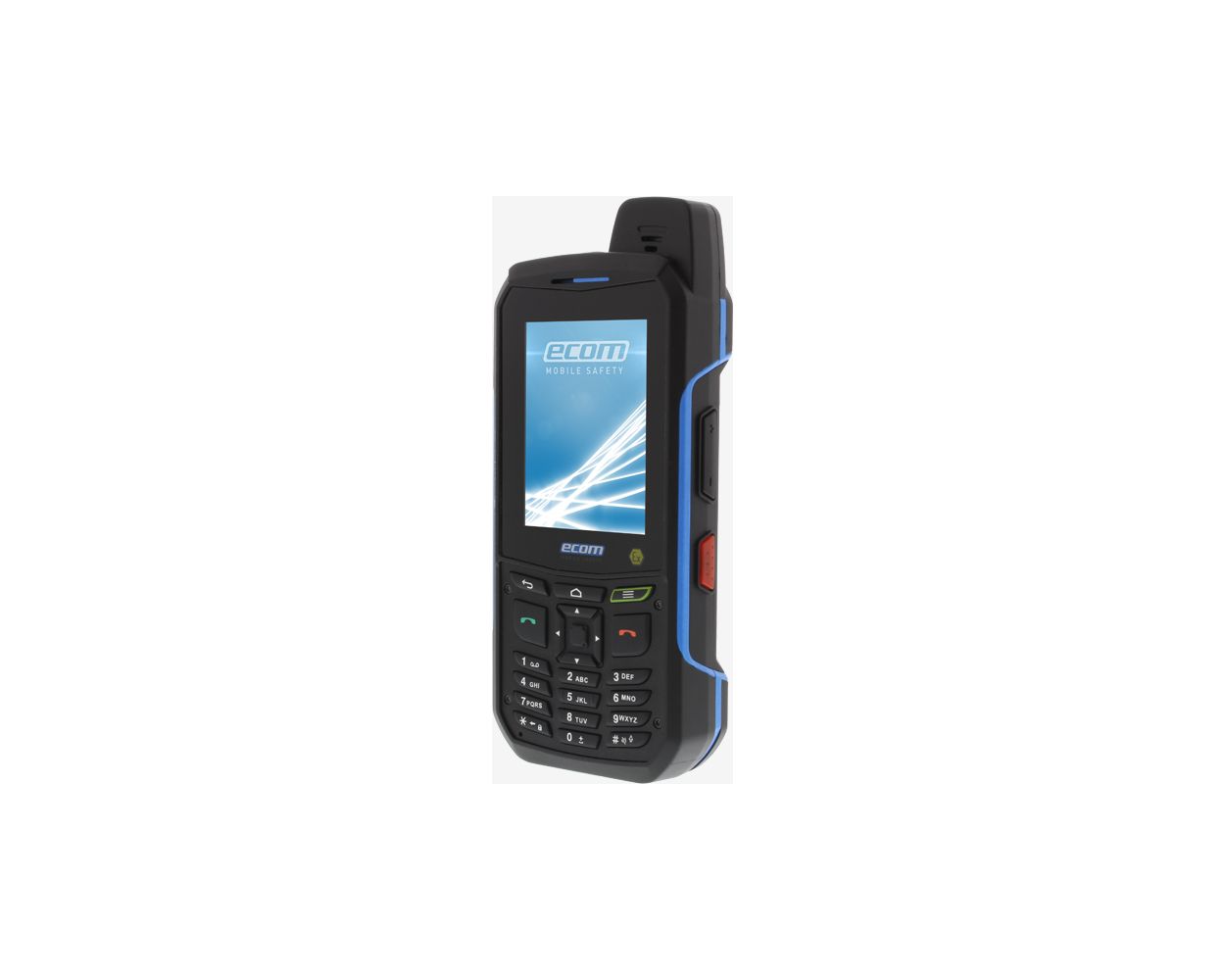

Atex Handy 09 atex zone 1

Discontinued
*Price may change due to echange rate.
SKU
Ex Handy 09

This product is EOL (End Of Life)

For clients who require a more propelled cell telephone yet not a Smartphone, The zone 1 Handy-09 Featurephone is intended to address this issue like giving both push-catch and touchscreen The helpful 09 cellular telephones abilities in addition to the execution and network to bolster basic and more concentrated Android™ applications so it can be customized for your need, for example, Lone Worker Protection, Push-to-Talk and other modern application.



This product is EOL (End Of Life)

Delivering Mobility in Hazardous Areas handy 09 FeaturePhone (not a smartphone) atex zone 1 IECEx)

Ex ib IIC T4 Gb IP64 - Ex ib IIIC T135°C Db IP6X

For clients who require a more propelled cell telephone yet not a Smartphone, The zone 1 Handy-09 Featurephone is intended to address this issue like giving both push-catch and touchscreen The helpful 09 cellular telephones abilities in addition to the execution and network to bolster basic and more concentrated Android™ applications so it can be customized for your need, for example, Lone Worker Protection, Push-to-Talk and other modern application.

Intrinsically Safe Mobile Phone Handy-09 for Zone 1 / 21, Zone 2 / 22 , Class 1 / Div 1, Class 1 / Div 2.

Intrinsically Safe, Zone 1 / 21 Approved, 3G Phone with Optional Camera & Man Down / Lone Worker Protection


INCLUDES A 3 YEAR, NO QUESTIONS ASKED WARRANTY

The Handy 09 provides a range of functions like:

  • Shock / Vibration Resistant
  • Temperature Resistant
  • Resistant to extreme pressure
  • Puncture resistant
  • Resistant to oils and chemicals
  • Optional Service Level Agreemeent (SLA)



Features of the Handy-09

  • Touch Screen and Numeric Keypad
  • High Visibility Display in Direct Sunlight
  • 4G LTE
  • Android™ 4.4, KitKat
  • Wifi 802.11 a/b/g/n with hotspot feature
  • Long Battery Life
  • Glove usability
  • Powerful Audio
  • Protection from micro particles
  • Waterproof



Technical Data of the Handy 09

  • Operating System Android™ 4.4, KitKat
  • Chipset MSM8926 1.2 GHz Quad core
  • Band 4G / LTE-standard
  • EU: B1, B3, B7, B8, B20, B38 (TDD)
  • Quad Band UMTS 850 / 900 / 1900 / 2100 MHz
  • US: B1, B2, B3, B4, B5, B7, B8, B12, B14, B17
  • Quad Band GSM 850 / 900 / 1800 / 1900 MHz
  • WiFi 802.11 a / b / g / n dual-band, with Hotspot feature
  • Memory 8GB Internal Storage / 1GB RAM
  • User memory 4GB
  • Applications Google Play
  • Connectivity, Bluetooth®, SMS, MMS, (text, image, audio, video) Bluetooth® 4.0 / BLE (Bluetooth® Low Energy)
  • Support SMS and MMS
  • GPS, NFC GPS, GLONASS
  • Languages supported Arabic, Simplified Chinese, Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Turkish
  • Email Client EAS, Gmail, POP3, IMAP
  • Capacity (mAh) 3600 mAh
  • Battery Life Up to 1000 hours Stand by, up to 40 hours talk time
  • Physical Characteristics
  • Ambient temperature -20°C…+55°C
  • Protection class IP68
  • Size 137 mm x 65 mm x 26.9 mm (5.39“ x 2.54“ x 1.05“)
  • Weight approx. 330 g
  • Dedicated Keys PTT key / Alarm key / Power key
  • Ports 3.5 mm audio connector / Magnetic USB connector plug
  • Display
  • Size 2.6 inch
  • Type Corning® Gorilla® Glass 2 with Glove Touch, Blanview Display
  • Resolution 432 x 320
  • Outdoor Visibility Yes
  • Capacity 16.7 M color
  • Audio
  • Microphone Dual Mic Solution with Noise cancellation
  • Speaker 19 mm Loud Speaker with Gore® Protective Vents, Output up to 103 dB
  • Multimedia
  • Audio Formats MP3, WMA 9, AAC, ACC+, eAAC+, AMR-NB/WB
  • Video Formats Support AV I, MP4, 3GPP
  • Media Player Android™ native + GMS
  • FM Radio Yes
  • LED torch light Yes
  • Art. No.
  • AS050288 Ex-Handy 09 -E, I.S. Featurephone EU incl. Charger, Safety Box, Belt Clip
  • AS050289 Ex-Handy 09 -A, I.S Featurephone US incl. Charger, Safety Box, Belt Clip



Service Level Agreement

A worldwide service level agreement. We aim to partner with our customers in every sector of industry: not only before and during but also after the sale and when our products are in daily use. Our focus is that you consistently benefit from all our mobile devices each and every day. To ensure this, ecom's support and services are at your disposal with professional assistance and outstanding customer care throughout the world.

This service contract covers a range of costs like for spare parts and repairs. Additionally it ensures that your device is returned in an optimum state. Our service includes proactive repairs, firmware updates and a detailed service history. All this ensures that the device is back in the field quickly - without any additional costs.



DOWNLOADS

 Productsheet





*Prices as shown on this store are indicational and subject to 21% tax, currency changes and shipping costs. For an accurate and special price please call or e-mail our support.

More Information
Discontinued Yes
