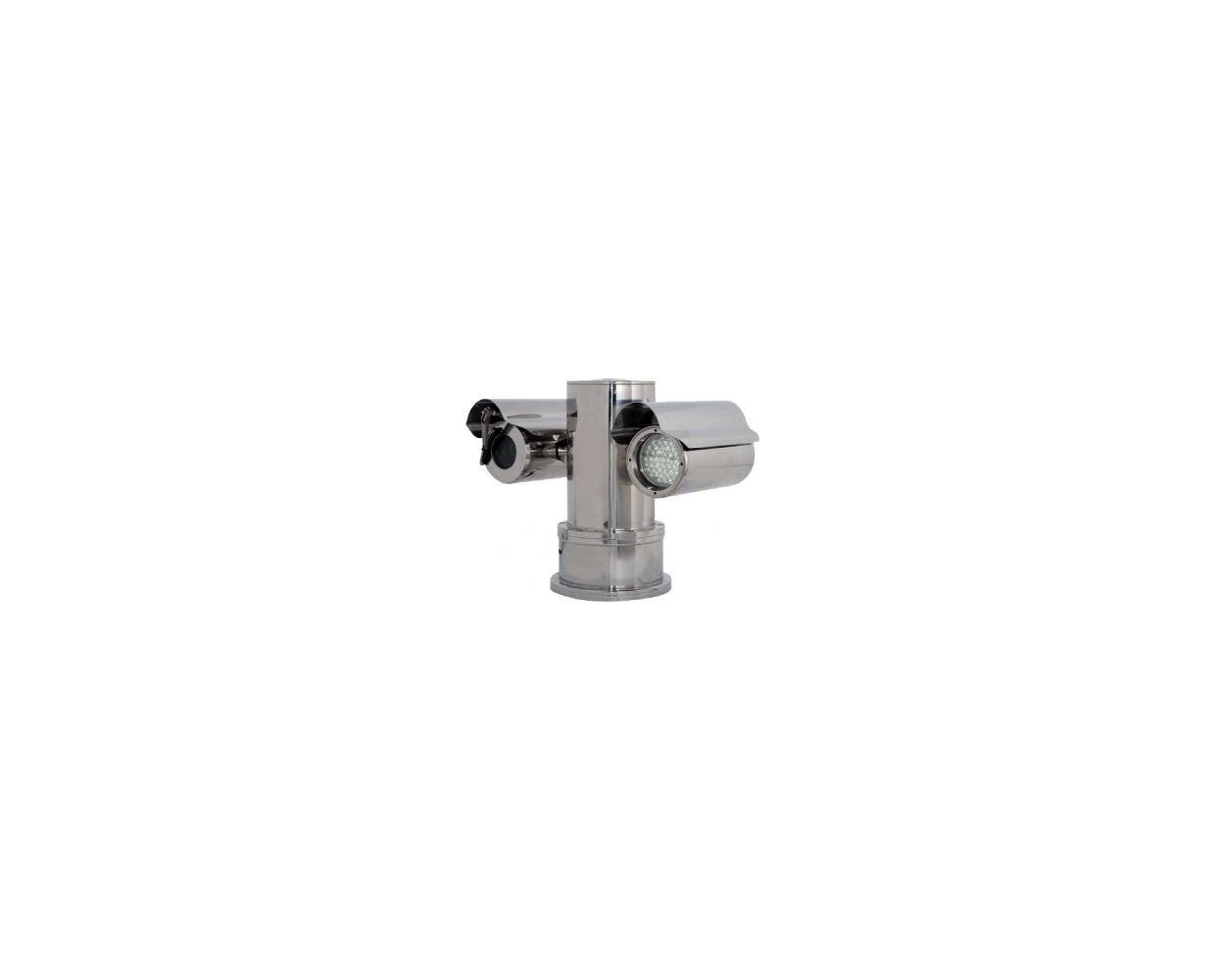

ATEX Integrated PTZ Camera System with IR illuminator

Call for Price
*Price may change due to echange rate.
SKU
SHEX920

ATEX Integrated PTZ Camera System with IR illuminator

Explosion Proof Pan Tilt Zoom Camera System

The ATEX PTZ CCTV System can be used in place where the zone is classified as Zone 1 or Zone 2. The ATEX PTZ Camera has a combined iR illuminator for surveillance even in low light situations, the camera is perfect for use in weak light, hazardous environment where far range control is needed.

The ATEX PTZ CCTV Camera has an outside washer with reservoir and an integrated design with compact structure and small shape for easy instalation and maintenance.

Specifications

Certification Parameter
Manufacturers Standard: EN60079-0:2006, EN60079-1:2007,EN61241-0:2006,EN61241-1:2004

GB3836.1--2000, GB3836.2--2000, GB12476.1-2000
Configuration Mode: Integrated configuration without external connection; Fixed cable entry
Explosion-proof Mark: Ex II2GD Ex d IIC T6; Ex tD A21 T80°C
IP: IP68(2m/2h)
Operating Temperature (°C): -25~60°C
Cable Entries: 1x G1/2''Explosion-proof cable entry , Dia. of inner hole 12
Mechanical Features
Material: 304 / 316L(Stainless steel)
Pan/Tilt Range (°): 360 (continuously) / ±90
Pan/Tilt Rotate Speed (°/s): Fixed speed(6°~20°/s)note2 / 4°~20°/s adjustable / 0.1°~40°/s adjustable
Electric Motor: The permanent magnetism DC motor of high torque matches the planetary gear reducer of high precision
Control System Bus structure, servo-controlled system
Communication: RS-485 semiduplex
Protocol: PELCO-D (other protocols replaced according to consumer's demands)
Baud Rate: 1200 / 2400 / 4800 / 9600 / 19200
Construction Dimension
Sight Glass Dimensions: φ64

Outside Dimensions(L x W x H) mm 450 × 400 × 160
Weight (Kg) 26
 Power Supply

Voltage (V): AC110~240V, 50/60Hz, AC24V, 50/60Hz
Current(A): 500mA
Accessories

Fitted as standard: Sunshield
Optional Washer and reservoir; Wiper; Heater; Preset positioning; Camera
IR Illuminator

Voltage(V): DC12V
Wave length: 850nM
Power: 10W



Downloads

 Coming Soon

Gallery
