BLE Gateway ATEX Zone 1 - (300642)
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
Freely programmable (PAWN) instrument for transferring data via Bluetooth Smart (BLE).

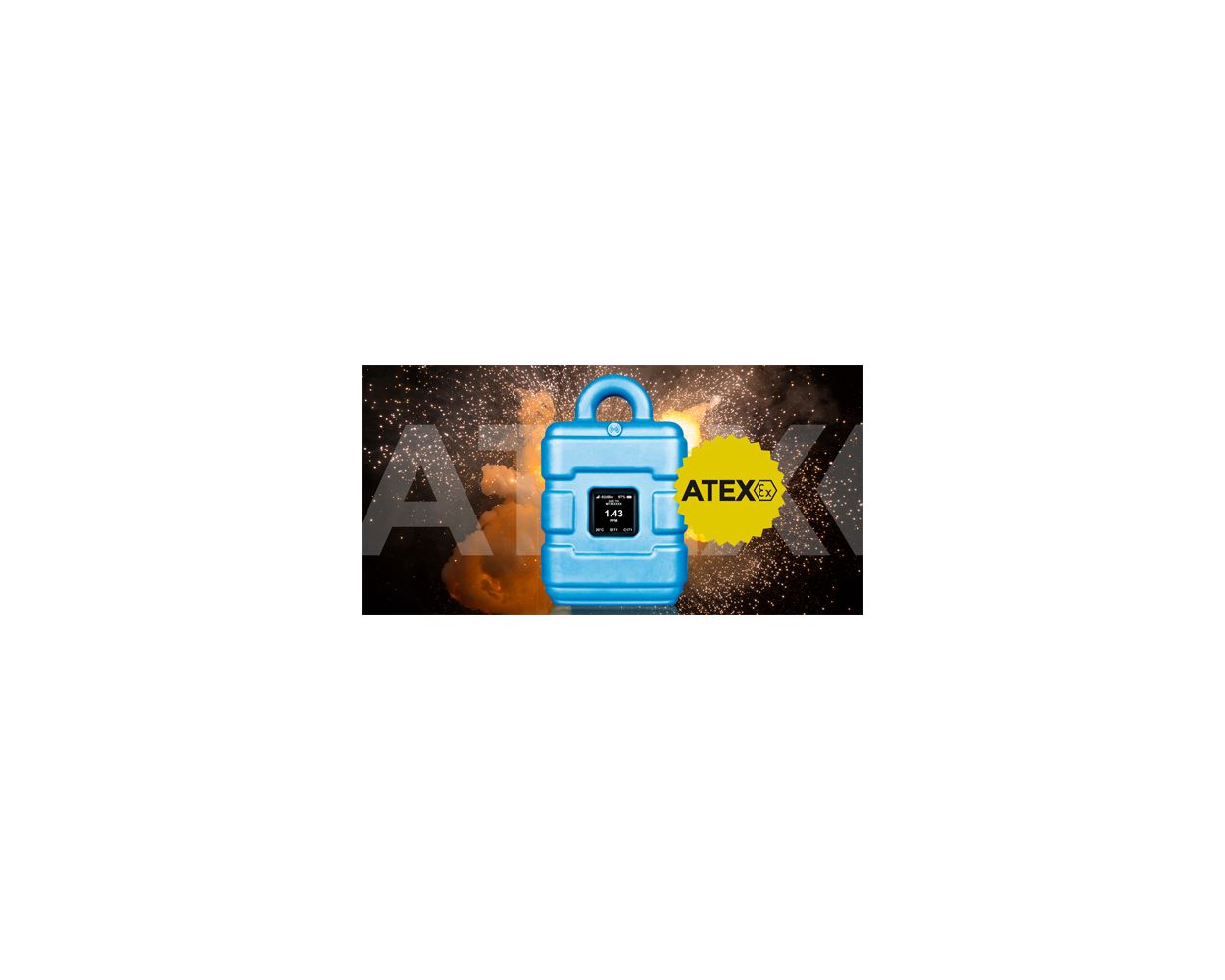

BLE Gateway ATEX Zone 1
Freely programmable (PAWN) instrument for transferring data via Bluetooth Smart (BLE). To view information on the spot, the device has a color display. In use, the internal temperature, the internal moisture, the battery state of charge and the BLE signal quality of the gateways are available.
Cellular & Wireless
Bluetooth Smart
Display
1.5 –Inch (diagonal) Full Color OLED Resolution: 128 x 128
Battery life time
up to 36 months
Environment
Protection class: IP 67
-20°C ... +50 °C
15%rH ... 90%rH
Protection class: <Ex> II 2 G Ex ib IIB T3 Gb
Memory
3MByte Data Flash (app. 200.000 Values)
64kByte RAM & 256kByte Flash for PAWN skript engine
Dimensions & Housing
BHT: 166mm x 106mm x 61mm
Weight: 650g (incl. battery)
Material: Noryl GTX 973 / PC
Delivery
1x BLE gateway
1x protection case
1x magnet key
(300642)
