Flameproof (Ex db) aluminium enclosure from Xciel for the Apple iPad mini 7 (A17 Pro). It is ATEX certified II 2 G Ex db IIB T6 Gb and IECEx certified Ex db IIB T6 Gb for Zone 1 and Zone 2 gas areas: gas group IIB, so not for hydrogen or acetylene, and no dust zones. The iPad is fitted by Xciel or an authorised partner. Enclosure only EUR 3,022 excl. VAT; complete sets with iPad mini 7 from EUR 3,994 excl. VAT.
ATEX iPad mini 7 Zone 1 - Xciel XCZ1 Explosion Proof Enclosure
Certifications: ATEX • IECEx | Zones: Zone 1 and Zone 2, gas only | Protection: Flameproof enclosure, II 2 G Ex db IIB T6 Gb | Tablet: Apple iPad mini 7 (A17 Pro), iPadOS | Manufacturer: Xciel Inc.

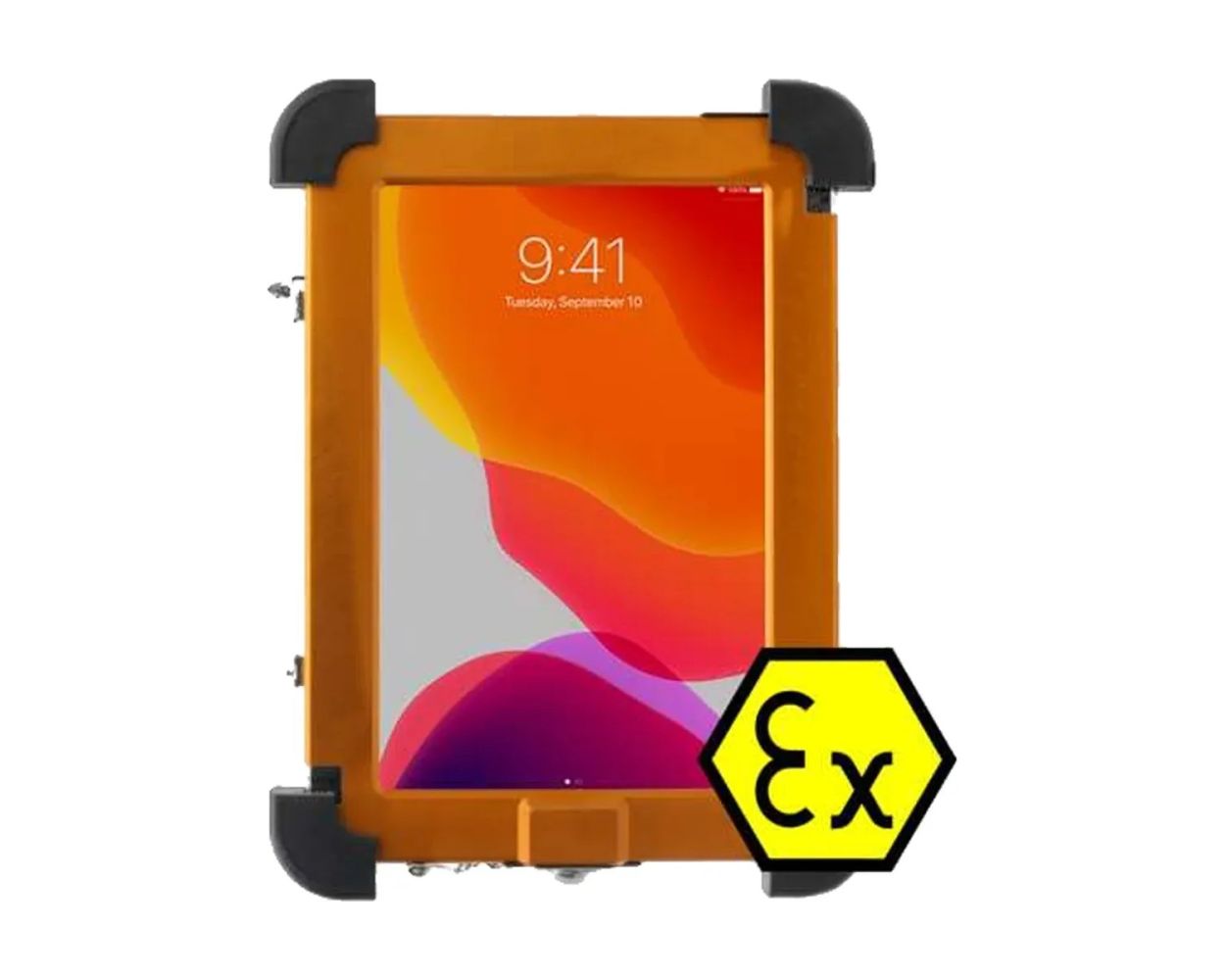

The Xciel XCZ1 iPad mini 7 is an aluminium enclosure with glass windows for the Apple iPad mini 7 (A17 Pro). It allows the iPad to be used in Zone 1 and Zone 2 areas with explosive gas atmospheres. For buyers looking for an explosion proof or intrinsically safe iPad: the protection concept of the XCZ1 is a flameproof enclosure, Ex db, as stated on the certificates. It is not intrinsic safety.
The enclosure is certified under ATEX (EU-type examination certificate ExVeritas 23ATEX1721X, issue 1; marking II 2 G Ex db IIB T6 Gb) and IECEx (IECEx EXV 23.0054X, issue 1; marking Ex db IIB T6 Gb), for an ambient temperature of -20 °C to +50 °C. The certification covers gas group IIB and gas atmospheres only. The XCZ1 is therefore not suitable for IIC gases such as hydrogen or acetylene, and it is not certified for dust zones (Zone 21 and Zone 22).
The iPad is fitted into the enclosure by Xciel or an authorised partner. The enclosure must not be opened by the user.
Configurations and prices
| Configuration | Order code | Price excl. VAT |
|---|---|---|
| XCZ1 iPad mini 7 enclosure only, without iPad (your iPad mini 7 is fitted by Xciel or an authorised partner) | XCZ1MINI7 | EUR 3,022 |
| XCZ1 enclosure with iPad mini 7 (A17 Pro) 128 GB Wi-Fi, installed | XCZ1MINI7-128GB | EUR 3,994 |
| XCZ1 enclosure with iPad mini 7 (A17 Pro) 256 GB Wi-Fi, installed | XCZ1MINI7-256GB | EUR 4,097 |
| XCZ1 enclosure with iPad mini 7 (A17 Pro) 512 GB Wi-Fi, installed | XCZ1MINI7-512GB | EUR 4,302 |
| XCZ1 enclosure with iPad mini 7 (A17 Pro) 128 GB Wi-Fi + Cellular (5G), installed | XCZ1MINI7-128GB-5G | EUR 4,170 |
| XCZ1 enclosure with iPad mini 7 (A17 Pro) 256 GB Wi-Fi + Cellular (5G), installed | XCZ1MINI7-256GB-5G | EUR 4,251 |
| XCZ1 enclosure with iPad mini 7 (A17 Pro) 512 GB Wi-Fi + Cellular (5G), installed | XCZ1MINI7-512GB-5G | EUR 4,455 |
Mention the order code of the configuration you need in your order or quote request.
Enclosure only: Xciel states that self-installation is not an option for the ATEX/IECEx Zone 1 enclosure. If you order the enclosure only, your iPad mini 7 is fitted by Xciel or an authorised partner. Please contact us about the fitting procedure before you order.
Wi-Fi + Cellular: according to Apple, the Wi-Fi + Cellular iPad mini 7 supports 5G and uses eSIM only. It does not accept physical SIM cards.
Why choose the XCZ1 iPad mini 7?
Flameproof Ex db, not intrinsic safety
The iPad mini 7 inside is a standard Apple tablet. Protection comes from the flameproof aluminium enclosure (type of protection "d" to IEC 60079-1), which is designed to withstand an internal explosion and prevent its transmission to the surrounding atmosphere.
Zone 1 and Zone 2, gas group IIB
Category 2 G, equipment protection level Gb, for Zone 1 and Zone 2. Gas groups IIA and IIB, temperature class T6. Not for IIC gases such as hydrogen or acetylene. No dust marking, so not for Zone 21 or Zone 22.
iPad mini 7 with A17 Pro
For the Apple iPad mini 7 with A17 Pro chip, 8.3 inch Liquid Retina display and iPadOS. Available with 128, 256 or 512 GB, as Wi-Fi or Wi-Fi + Cellular (5G) model.
Fitted by Xciel
The iPad is fitted by Xciel or an authorised partner. Under the certificate conditions the aluminium case must not be opened. The end user may only remove the fasteners of the USB charging port cover and the SIM card cover.
Aluminium and glass
Aluminium enclosure with glass windows and rubber corner bumpers. General dimensions 247.6 x 187.1 x 35.6 mm according to the certificates. Xciel's datasheet states IP54.
Optional accessories
Xciel lists a magnet mounting system, locking system, stylus, ballistic nylon case, carrying handle, shoulder strap, chest harness and hard shell carrying case as options. Ask us if you need one of these.
Certification
| ATEX marking | II 2 G Ex db IIB T6 Gb, Tamb -20 °C to +50 °C |
| ATEX certificate | EU-type examination certificate ExVeritas 23ATEX1721X, issue 1 (12 February 2025). Issue 0 (2 February 2024) covered the iPad mini 6 model; issue 1 adds the iPad mini 7 model. |
| Notified body | ExVeritas ApS, Denmark, notified body number 2804 |
| Standards (ATEX) | EN IEC 60079-0:2018, EN 60079-1:2014 |
| IECEx marking | Ex db IIB T6 Gb (-20 °C < Tamb < +50 °C) |
| IECEx certificate | IECEx EXV 23.0054X, issue 1 (2025-01-20), issued by ExVeritas Limited, United Kingdom |
| Standards (IECEx) | IEC 60079-0:2017 (Ed. 7.0), IEC 60079-1:2014 (Ed. 7.0) |
| Type of protection | Flameproof enclosure "d", level of protection db |
| Certified equipment | iPad Mini Flameproof Case, models XCZ1 iPad mini6 and XCZ1 iPad mini7 |
| Rated values | 3.82 Vdc cell voltage, 4.35 Vdc maximum charging voltage |
| Manufacturer | Xciel Inc., Richmond, Texas, United States |
Reading the marking
II 2 G: equipment group II (places other than mines susceptible to firedamp), category 2 for explosive gas atmospheres, for use in Zone 1 and Zone 2.
Ex db: flameproof enclosure, level of protection "db". This is not intrinsic safety (Ex ia, ib or ic).
IIB: gas group IIB, which also covers IIA. Not for gas group IIC, which includes hydrogen and acetylene.
T6: temperature class T6, maximum surface temperature 85 °C.
Gb: equipment protection level Gb, for Zone 1 and Zone 2.
Not for Zone 0 and not for dust: the enclosure is category 2 equipment and carries no dust marking, so it is not certified for Zone 0, Zone 21 or Zone 22.
Specific conditions of use (X)
The certificate numbers carry the suffix X. The ATEX and IECEx certificates state the following specific conditions of use:
- Do not open the aluminium case.
- The iPad shall not be charged, by cable or wireless, when hazardous atmospheres are present. The equipment shall only be charged with a suitably approved charger.
- Flameproof joints shall not be modified or repaired. Contact the manufacturer for information on the flameproof joints.
- Fasteners in the equipment are thread locked and shall not be removed or replaced without the manufacturer's approval. The only fasteners the end user may remove or replace are those of the USB charging port cover and the SIM card cover. Refer to the manufacturer's safety instructions for installation and fastener type.
- The rubber bumpers must be installed on the equipment at all times to protect the corners of the aluminium case, and must be visually inspected for good condition before each use.
Technical Specifications
XCZ1 enclosure
| Model | XCZ1 iPad mini7 (Xciel order code XCZ1MINI7) |
| Compatible tablet | Apple iPad mini 7 (A17 Pro). The same certificates also cover the XCZ1 for the iPad mini 6 as a separate model. |
| Construction | Flameproof (Ex db) aluminium enclosure with glass windows and rubber corner bumpers |
| Dimensions | 247.6 x 187.1 x 35.6 mm (general dimensions according to the ATEX and IECEx certificates) |
| Weight | 1,338 g including iPad (Xciel datasheet) |
| Ingress protection | IP54 (Xciel datasheet; not part of the Ex certificates) |
| Ambient temperature (Ex) | -20 °C to +50 °C according to the certificates. Apple specifies an operating ambient temperature of 0 °C to 35 °C for the iPad mini itself. |
| Charging | Through the USB charging port behind its cover, only when no hazardous atmosphere is present and only with a suitably approved charger |
Apple iPad mini 7 (A17 Pro)
Specifications of the tablet itself according to Apple. They apply to the configurations with iPad.
| Chip | A17 Pro: 6-core CPU with 2 performance cores and 4 efficiency cores, 5-core GPU, 16-core Neural Engine |
| Capacity | 128 GB, 256 GB or 512 GB |
| Operating system | iPadOS |
| Display | 8.3 inch Liquid Retina display, 2266 x 1488 pixels at 326 ppi, 500 nits |
| Cameras | 12 MP Wide rear camera, f/1.8; 12 MP Center Stage front camera, f/2.4 |
| Wireless | Wi-Fi 6E (802.11ax) with 2x2 MIMO, Bluetooth 5.3 |
| Cellular | Wi-Fi + Cellular models: 5G (sub-6 GHz) and Gigabit LTE, eSIM only |
| Location | Digital compass on all models; GPS/GNSS on Wi-Fi + Cellular models |
| Sensors | Touch ID, three-axis gyro, accelerometer, barometer, ambient light sensor |
| Connector | USB-C (USB 3, up to 10 Gb/s) |
| Battery | Built-in 19.3 Wh lithium-polymer battery; up to 10 hours of web browsing on Wi-Fi or watching video, up to 9 hours of web browsing on cellular (Wi-Fi + Cellular models) |
| Size and weight of the iPad | 195.4 x 134.8 x 6.3 mm; 293 g (Wi-Fi), 297 g (Wi-Fi + Cellular) |
| Operating temperature of the iPad | 0 °C to 35 °C |
Applications
Zone 1 and Zone 2 gas areas
Use in areas classified as Zone 1 or Zone 2 where the gas group is IIA or IIB and the required temperature class is T1 to T6.
Inspection and maintenance
Running iPadOS apps on site, for example for work orders, checklists, inspection rounds and documentation with the 12 MP rear camera.
Organisations that use iPad
For teams that already work with iPad and need an iPad mini for Zone 1 and Zone 2 gas areas (gas group IIA/IIB).
Not suitable for
Gas group IIC atmospheres such as hydrogen or acetylene, Zone 0, and dust zones (Zone 21 and Zone 22).
Documentation
- IECEx certificate IECEx EXV 23.0054X, issue 1 (IECEx website)
- Xciel rugged iPad enclosures overview (xciel.com)
- iPad mini technical specifications (apple.com)
A copy of the EU-type examination certificate ExVeritas 23ATEX1721X is available on request.
