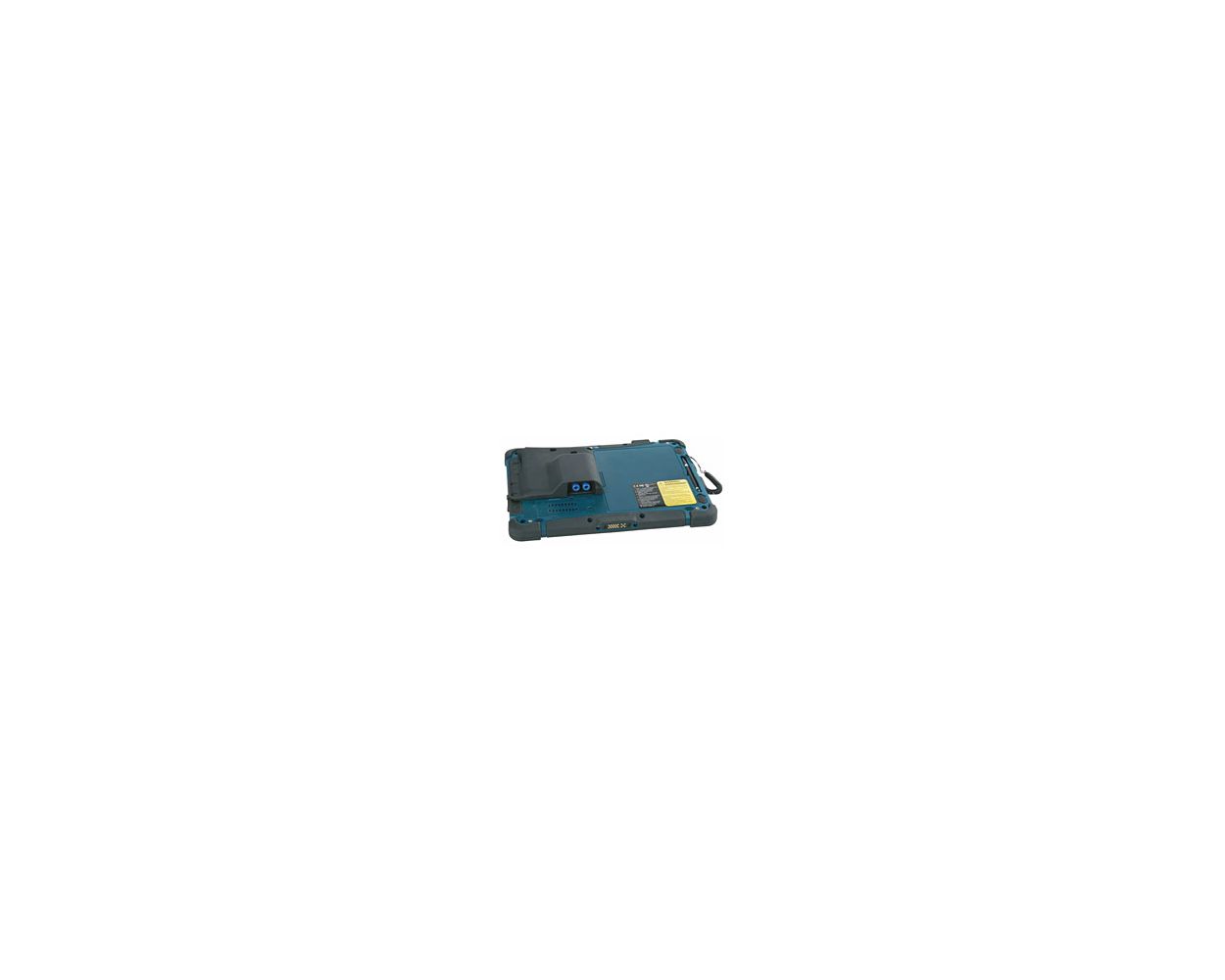

HART Add-On Module Zone 2/22 - Agile X Tablet PC
*Price may change due to echange rate.
The HART Add-on module is a new extension module for Agile X and offers a HART modem function. It may be connected to a HART loop as secondary master and facilitates applications such as configuring the HART devices. Due to the Windows operating system, the user can deploy all current software solutions and communicate using the FDT/DTM industrial standard. Agile X equipped with HART Add-on module is the new safe solution when working in potentially explosive and non potentially explosive atmospheres: parameter assignment, configuration, measurement and office tasks can be carried out much easier, faster and more safely.
HART Add-On Module Zone 2/22 - Agile X Tablet PC
The HART Add-on module is a new extension module for Agile X and offers a HART modem function. It may be connected to a HART loop as secondary master and facilitates applications such as configuring the HART devices. Due to the Windows operating system, the user can deploy all current software solutions and communicate using the FDT/DTM industrial standard. Agile X equipped with HART Add-on module is the new safe solution when working in potentially explosive and non potentially explosive atmospheres: parameter assignment, configuration, measurement and office tasks can be carried out much easier, faster and more safely.
Features
- Configure, set parameters, read out and measure HART devices in the Ex area
- Extension for the Agile X
- Available driver software makes it simple to install and set up
- Connection to HART loop as secondary master
- Hardware supports network diagnosis
Specifications
| Certification: |
ATEX Certification: II 3G Ex ic [ia Ga] IIC T4 Gc, II 3D Ex ic [ia Da] IIIB T135 °C Dc, EPS 15 ATEX 1 823 X IECEx Certification/UL: Ex ic [ia Ga] IIC T4 Gc, Ex ic [ia Da] IIIB T135 °C Dc, EPS 15.0010X |
| Size (length x width x height): |
125 mm x 125 mm x 24 mm |
| Weight: | 200 g |
|
Protection class: (IEC 60529): |
Mounted on tablet PC IP 54 Connector strip (PoGo pins) IP 20 |
| Operating temperature: |
In the Ex area -20 °C to +50 °C In the safe area -20 °C to +60 °C |
| Storage temperature: | -30 °C to +70 °C |
| Air humidity during operation: | 30 % to 95 % (non-condensing) |
Downloads
Datasheet.pdfB7-A2Z0-0033
For orders under € 450 we charge € 25 order costs.
Prices shown on this website are before taxes, currency changes and shipping costs.
For an accurate price please contact our sales team at info@comm-co.com
| Discontinued | Yes |
|---|
-
![650118]()
Agile X tablet Atex Zone 2 Windows 10 LTEEnd of life
