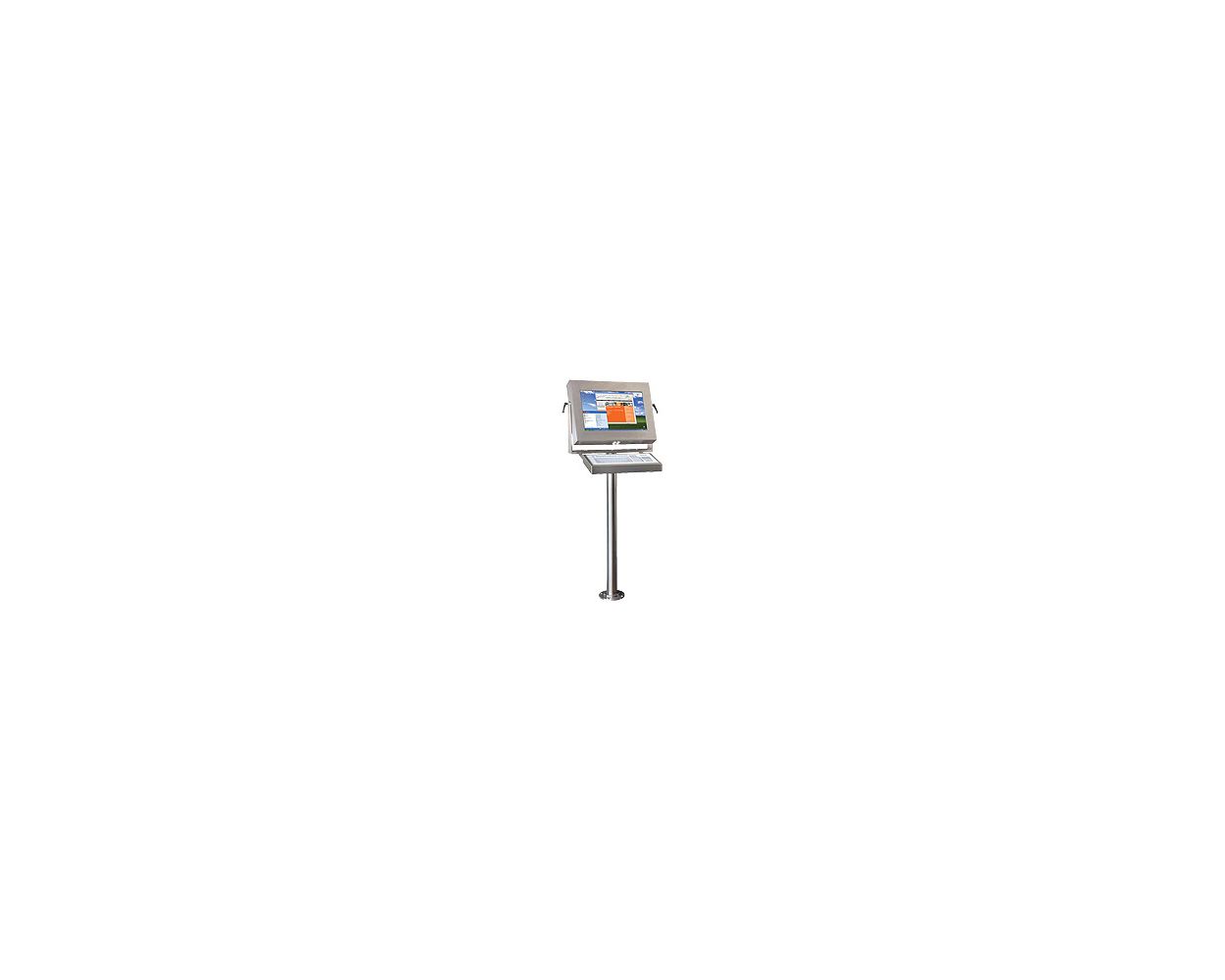

POLARIS PROFESSIONAL II Panel PC HMI 19.1" - Zone 2/21 - Windows 7/10
*Price may change due to echange rate.
The panel PC is equipped with the Intel® Celeron® J1900 as standard. The Ethernet interface enables individual computers or network devices such as a printer to be connected to an existing local network (LAN) (WLAN is also a possible option) or local networks to be set up completely wirelessly.
POLARIS PROFESSIONAL II Panel PC HMI 19.1" - Zone 2/21 - Windows 7/10
DESCRIPTION
The panel PC is equipped with the Intel® Celeron® J1900 as standard. The Ethernet interface enables individual computers or network devices such as a printer to be connected to an existing local network (LAN) (WLAN is also a possible option) or local networks to be set up completely wirelessly. Allows high-performance visual display and operation of the processes directly on site. State-of-the-art display technology provides optimum contrast even with a large viewing angle. To allow the greatest ease in utilisation the devices are available for wall, floor or table mounting. A keyboard with integrated trackball or touchpad can be connected. There is also the option of a touchscreen for the ultimate in operating ease. Windows 7® Ultimate or Windows® 10 lot Enterprise are available as possible operating systems. This means that the Panel PCs are open for many different software packages, for example customised software or various types of commercially available standard visualisation software.
Features
- In the stainless enclosure tiltable
- Ethernet interface
- Graphics-capable LED colour display
- Direct linkage in hazardous areas
- Optional touchscreen
- Optional WLAN
TECHNICAL DATA
| Protection class | IP 65 |
| Structure | Stainless-steel enclosure |
| Dimensions | 610 mm x 450 mm x approx. 100 mm |
| Storage temperature | -25 °C to +60 °C |
| Weight | approx. 17 kg |
| Display | 19.1" graphics-capable TFT colour display 16.7 million colours SXGA resolution, 1280 x of 1024 pixels Brightness 300 cd/m² Visible surface approx. 376 x 301 mm Contrast 1300:1 Optional touchscreen (resistive) |
| Backlighting | LED technology Service life approx. 50,000 hours (at +25 °C) |
| Interface | basic version: 2 x Ethernet 100BaseT 4 x USB (on version with keyboard and mouse, 1 x on terminals) Optional: RS232/422/485 Serial Interface |
| Operating system | Windows 7® Ultimate (32 Bit) Windows® 10 Iot Enterprise (32 Bit) in preparation: Windows® 10 IoT Enterprise (64 Bit) |
| CPU | Intel® Celeron® J1900 (quad-core up to 2.42 GHz) |
| Memory | 4 GB RAM with 32-bit operating system 8 GB RAM with 64-bit operating system 128 GBytes SSD (MLC Type) |
| Input voltage | AC 90 to 253 V DC 24 V ± 10 % |
| Power | Pmax. < 75 W |
Accessories
| Accessory | Price | Datasheet |
| Keyboard | Call For Price |  Datasheet.pdf |
| Enclosure for Mouse and Keyboard | Call For Price | Datasheet.pdf |
| Mouse | Call For Price | Datasheet.pdf |
| Trackball, Joystick | Call For Price | Datasheet.pdf |
| Touchpad | Call For Price | Datasheet.pdf |
| USB Ex d Enclosure | Call For Price | Datasheet.pdf |
| Ex i USB Stick | Call For Price | Datasheet.pdf |
| Connection Cable for Keyboard and Mouse | Call For Price | Datasheet.pdf |
| Reinforcement Frame | Call For Price | Datasheet.pdf |
| Mounting Clamps Set | Call For Price | Datasheet.pdf |
| LAN STP Cable | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure for Floor Mounting | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure Without Supporting Bracket | Call For Price | Datasheet.pdf |
| Basic Stainless Steel Enclosure for Wall Mounting | Call For Price | Datasheet.pdf |
| Stainless Steel Enclosure "Exklusiv II" with Adapter Connection | Call For Price | Datasheet.pdf |
| Stainless Steel Enclosure - Swivel/Tilt Without Desktop Mount | Call For Price | Datasheet.pdf |
| Desktop Mount for Stainless Steel Enclosure for 15" Series/19.1" Series | Call For Price | Datasheet.pdf |
| Support Arm for Wall Mounting | Call For Price | Datasheet.pdf |
| Stand for Floor Mounting Stainless Steel Enclosure | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure with Addtional Fitted Components | Call For Price | Datasheet.pdf |
APPROVALS
ATEX Zone 2:
II 3G Ex nA ic IIC T5 Gc
ATEX Zone 21/22: II 2D Ex ib tb IIIC T100°C Db
-25°C ≤ Ta ≤ +50 °C
