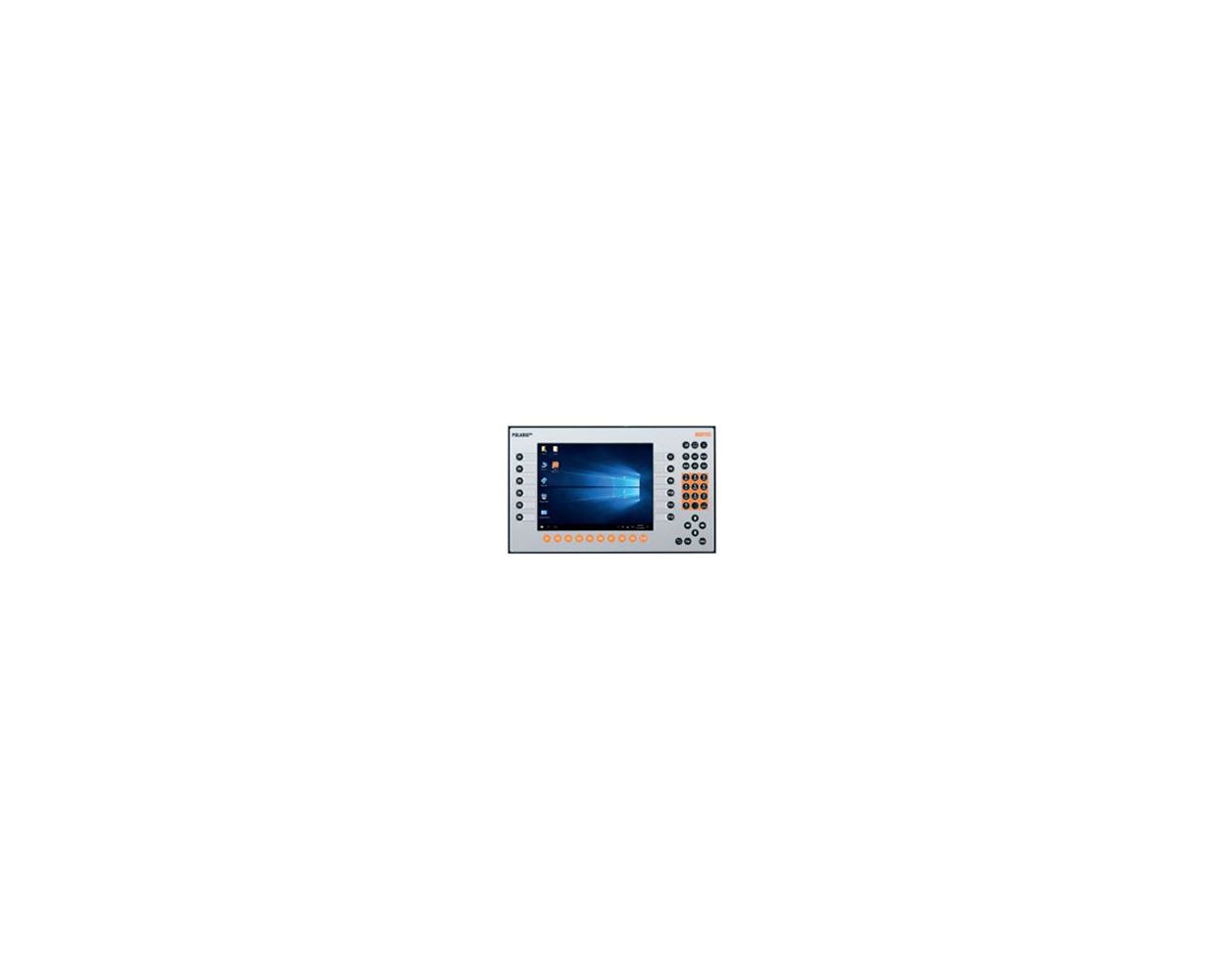

POLARIS PROFESSIONAL Panel PC HMI 10.4" - Zone 1/21 - Windows 7/10
*Price may change due to echange rate.
High-resolution displays with LED technology and touchscreen for intuitive as well as comfortable operation are available now in the standard variant. State-of-the-art LED display technology ensures the optimum contrast even with a large viewing angle. The panel PC has been equipped as standard with the Dual Core Processor AMD T40E/2 x 1.0 GHz; 4 GB RAM. Windows 7® Ultimate or Windows 7® Embedded MUI can be used as an operating system.
POLARIS PROFESSIONAL Panel PC HMI 10.4" - Zone 1/21 - Windows 7/10
DESCRIPTION
High-resolution displays with LED technology and touchscreen for intuitive as well as comfortable operation are available now in the standard variant. State-of-the-art LED display technology ensures the optimum contrast even with a large viewing angle. The panel PC has been equipped as standard with the Dual Core Processor AMD T40E/2 x 1.0 GHz; 4 GB RAM. Windows 7® Ultimate or Windows 7® Embedded MUI can be used as an operating system. Thanks to the integrated keyboard customisation for Windows®, Siemens WinCC flexible®, RS View® or BMS-Graf-pro, the POLARIS Touch panels can be used for all visualisation tasks. They can be connected to the control or the process control system through Ethernet, PROFIBUS-DP or various serial COM interfaces. Of course, here too the user can work with the latest BMS-Graf-Pro Version 7, allowing for example the transfer of projects through Ethernet, the use of graphics lists and the integrated user administration. Wired electrical connections are facilitated by integrated terminal compartments. The front-panel fitting design ensures easy installation. On request, the devices are also available as readymade system solutions in Stainless-steel enclosures for wall or floor mounting. They also feature an intrinsically safe USB interface for a USB Ex i flash drive. Intrinsically safe input devices can also be connected.
Features
- LED technology
- Higher screen resolution
- Touchscreen
- Processor 1.6 GHz
- Remote desktop solution
- Presentation of HTML pages
- Direct connection in hazardous areas
- Option of Windows 7
- Integrated keyboard customisation
TECHNICAL DATA
| Protection class | IP 65 (front) IP 54 (back) |
| Structure | Front-panel fitting |
| Dimensions | 400 mm x 246 mm x approx. 130 mm |
| Wall cut-out | 386 mm x 226 mm + 0.5 mm |
| Material | Front: polyester foil on anodised aluminium plate (conditionally UV-resistant) Back: bichromated sheet steel |
| Storage temperature | -20 °C to +50 °C |
| Humidity | 5 % to 95 % non-condensing |
| Vibration | 0.7 g/1 mm; 5 Hz - 500 Hz pulse in all 3 axes |
| Shock resistance | 15 g/11 ms pulse in all 3 axes |
| Weight | approx. 14 kg |
| Display | 10.4" TFT graphic display 16.7 million colours Resolution SVGA 800 x 600 pixels Brightness 400 cd/m² Visible surface approx. 211 x 158 mm Contrast 900:1 Touchscreen (resistive) |
| Interface | (basic version) 1 x Ex e Ethernet 100/10BaseT 1 x Ex e RS422 1 x Ex i USB for Ex i memory stick 1 x Ex i PS/2 for intrinsically safe mouse |
| Keyboard | (short-stroke keys) Alphanumeric key block 04 cursor keys 10 special keys 12 function keys able to be labelled with LEDs |
| Operating system | Windows 7® Ultimate or Windows 7® Embedded MUI |
| CPU | AMD T40E/2 x 1.0 GHz |
| Memory | 4 GB RAM/100 GB HD optional: 128 GB SSD |
| Voltage | DC 24 V ± 10 % |
| Power | Pmax. < 30 W |
Accessories
| Accessory | Price | Datasheet |
| Keyboard | Call For Price |  Datasheet.pdf |
| Enclosure for Mouse and Keyboard | Call For Price | Datasheet.pdf |
| Mouse | Call For Price | Datasheet.pdf |
| Trackball, Joystick | Call For Price | Datasheet.pdf |
| Touchpad | Call For Price | Datasheet.pdf |
| USB Ex d Enclosure | Call For Price | Datasheet.pdf |
| Ex i USB Stick | Call For Price | Datasheet.pdf |
| Connection Cable for Keyboard and Mouse | Call For Price | Datasheet.pdf |
| Reinforcement Frame | Call For Price | Datasheet.pdf |
| Mounting Clamps Set | Call For Price | Datasheet.pdf |
| LAN STP Cable | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure for Floor Mounting | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure Without Supporting Bracket | Call For Price | Datasheet.pdf |
| Basic Stainless Steel Enclosure for Wall Mounting | Call For Price | Datasheet.pdf |
| Stainless Steel Enclosure "Exklusiv II" with Adapter Connection | Call For Price | Datasheet.pdf |
| Stainless Steel Enclosure - Swivel/Tilt Without Desktop Mount | Call For Price | Datasheet.pdf |
| Desktop Mount for Stainless Steel Enclosure for 15" Series/19.1" Series | Call For Price | Datasheet.pdf |
| Support Arm for Wall Mounting | Call For Price | Datasheet.pdf |
| Stand for Floor Mounting Stainless Steel Enclosure | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure with Addtional Fitted Components | Call For Price | Datasheet.pdf |
APPROVALS
ATEX:
II 2G Ex db eb q [ib] IIC T4 Gb II 2D Ex tb IIIC T120 °C Db
IECEx:
Ex db eb q [ib] IIC T4 Gb
Ex tb IIIC T120 °C Db
DOWNLOADS
Prices
| ATEX and IECEx Zone 1 and 21 | 17-71V1-9037/K000 000 | € 7.153,00 |
| ATEX Zone 2 and 22 | B7-72V1-9037/K000 000 | € 5.722,00 |
