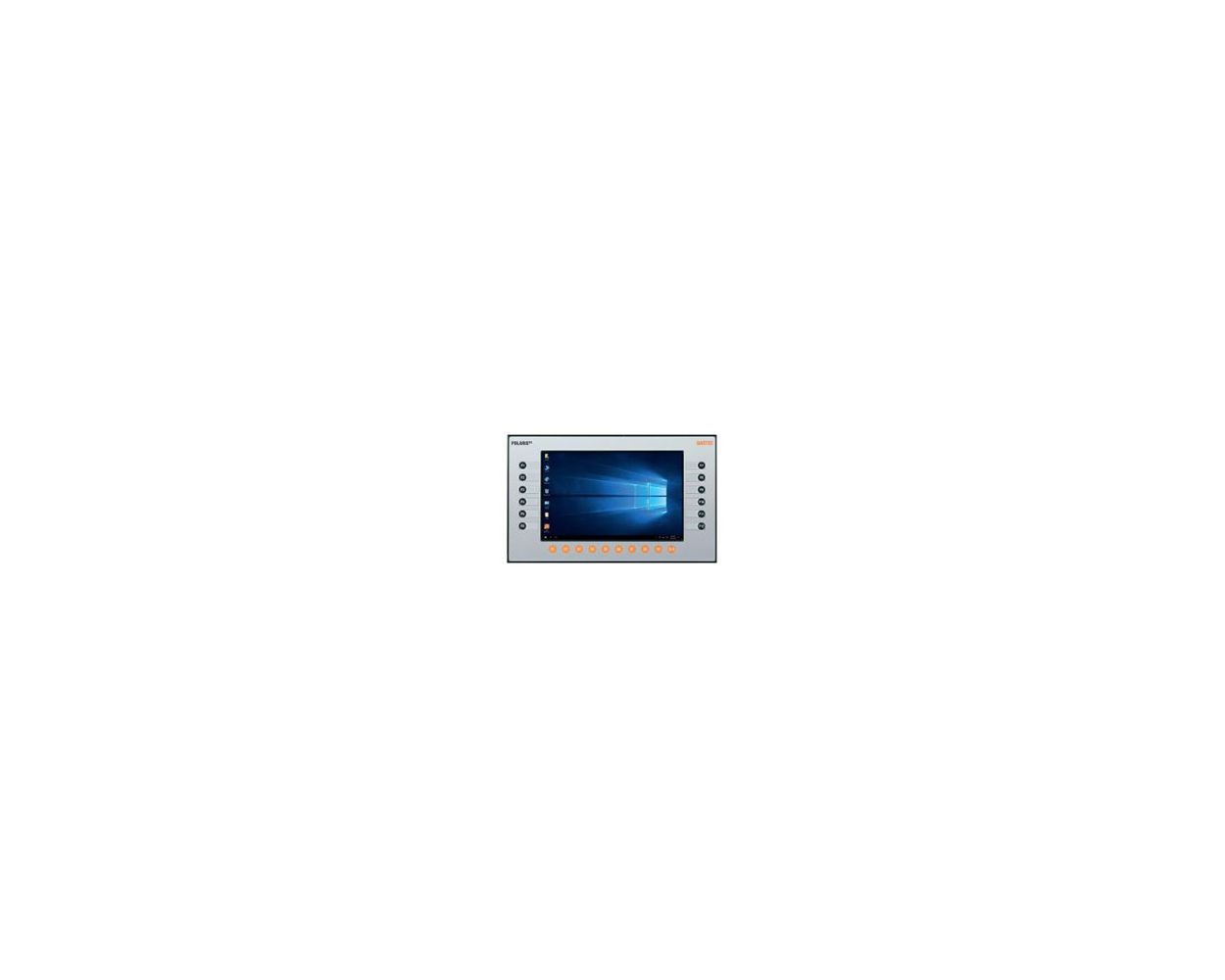

POLARIS PROFESSIONAL Panel PC HMI 12.1" W - Zone 1/21 - Windows 7/10

€7,153.00
*Price may change due to echange rate.
SKU
42326164

The POLARIS Panel PC 12.1" W is an innovative new development of the POLARIS PROFESSIONAL series. The high-resolution display with LED backlighting and touchscreen allow intuitive and comfortable operation. Even with wide viewing angles or when lighting is poor, the state-of-the-art LED display technology assures the optimum in contrast.

POLARIS PROFESSIONAL Panel PC HMI 12.1" W - Zone 1/21 - Windows 7/10

DESCRIPTION

The POLARIS Panel PC 12.1" W is an innovative new development of the POLARIS PROFESSIONAL series. The high-resolution display with LED backlighting and touchscreen allow intuitive and comfortable operation. Even with wide viewing angles or when lighting is poor, the state-of-the-art LED display technology assures the optimum in contrast. The panel PC has been equipped as standard with the Dual Core Processor AMD T40E/2 x 1.0 GHz; 4 GB RAM. Windows 7® Ultimate or Windows 7® Embedded MUI can be used as an operating system. Thanks to the integrated keyboard customisation for Windows®, Siemens WinCC flexible®, RS View® or BMS-Graf-pro, the POLARIS Touch panels can be used for all visualisation tasks. They can be connected to the control or the process control system through Ethernet, PROFIBUS-DP or various serial COM interfaces. Of course, here too the user can work with the latest BMS-Graf-Pro Version 7, allowing for example the transfer of projects through Ethernet, the use of graphics lists and the integrated user administration. Wired electrical connections are facilitated by integrated terminal compartments. The front-panel fitting design ensures easy installation. On request, the devices are also available as readymade system solutions in Stainless-steel enclosure for wall or floor mounting. They also feature an intrinsically safe USB interface for a USB Ex i flash drive. Intrinsically safe input devices can also be connected.

Features

  • LED technology
  • High screen resolution
  • Touchscreen
  • 1.6 GHz processor power
  • Direct connection in hazardous areas
  • Option of Windows 7
  • Integrated keyboard customisation

TECHNICAL DATA



Protection class IP 65 (front)
IP 54 (back)
Structure Front-panel fitting
Dimensions 400 mm x 246 mm x approx. 130 mm
Wall cut-out 386 mm x 226 mm + 0.5 mm
Material Front: polyester foil on anodised aluminium plate
(conditionally UV-resistant)
Back: bichromated sheet steel
Storage temperature -20 °C to +50 °C
Humidity 5 % to 95 % non-condensing
Vibration 0.7 g/1 mm; 5 Hz - 500 Hz pulse in all 3 axes
Shock resistance 15 g/11 ms pulse in all 3 axes
Weight approx. 14 kg
Display 12.1" W graphics-capable TFT colour display
16.7 million colours
WXGA resolution, 1280 x 800 pixels
Brightness 400 cd/m²
Visible surface approx. 264 x 166 mm
Contrast 1000:1
Touchscreen (resistive)
Interface (basic version)
1 x Ex e Ethernet 100/10BaseT
1 x Ex e RS422
1 x Ex i USB for Ex i memory stick
1 x Ex i PS/2 for intrinsically safe mouse
Variant without front-panel keys: 2 x Ex i PS/2
Keyboard 10 special keys and
12 inscribable function keys with LEDs
Optional variant: Without front-panel keys
Operating system Windows 7® Ultimate or
Windows 7® Embedded MUI
CPU AMD T40E/2 x 1.0 GHz
Memory 4 GB RAM/100 GB HD
optional: 128 GB SSD
Voltage DC 24 V ± 10 %
Power Pmax. < 35 W


Accessories

Accessory Price Datasheet
Keyboard Call For Price  Datasheet.pdf
Enclosure for Mouse and Keyboard Call For Price  Datasheet.pdf
Mouse Call For Price  Datasheet.pdf
Trackball, Joystick Call For Price  Datasheet.pdf
Touchpad Call For Price  Datasheet.pdf
USB Ex d Enclosure Call For Price  Datasheet.pdf
Ex i USB Stick Call For Price  Datasheet.pdf
Connection Cable for Keyboard and Mouse Call For Price  Datasheet.pdf
Reinforcement Frame Call For Price  Datasheet.pdf
Mounting Clamps Set Call For Price  Datasheet.pdf
LAN STP Cable Call For Price  Datasheet.pdf
Standard Stainless Steel Enclosure for Floor Mounting Call For Price  Datasheet.pdf
Standard Stainless Steel Enclosure Without Supporting Bracket Call For Price  Datasheet.pdf
Basic Stainless Steel Enclosure for Wall Mounting Call For Price  Datasheet.pdf
Stainless Steel Enclosure "Exklusiv II" with Adapter Connection Call For Price  Datasheet.pdf
Stainless Steel Enclosure - Swivel/Tilt Without Desktop Mount Call For Price  Datasheet.pdf
Desktop Mount for Stainless Steel Enclosure for 15" Series/19.1" Series Call For Price  Datasheet.pdf
Support Arm for Wall Mounting Call For Price  Datasheet.pdf
Stand for Floor Mounting Stainless Steel Enclosure Call For Price  Datasheet.pdf
Standard Stainless Steel Enclosure with Addtional Fitted Components Call For Price  Datasheet.pdf


Approvals

ATEX:
Ex II 2G Ex db eb q [ib] IIC T4 Gb
Ex II 2D Ex tb IIIC T120 °C Db


IECEx:
Ex db eb q [ib] IIC T4 Gb
Ex tb IIIC T120 °C Db


DOWNLOADS

 Datasheet.pdf

 Atex-certificate.pdf

 IECEx-certificate.pdf

PRICES

ATEX and IECEx Zone 1 and 21 17-71V1-B.37/K000 000 € 7.153,00
ATEX Zone 2 and 22 B7-72V1-B.37/K000 000 € 5.722,00
