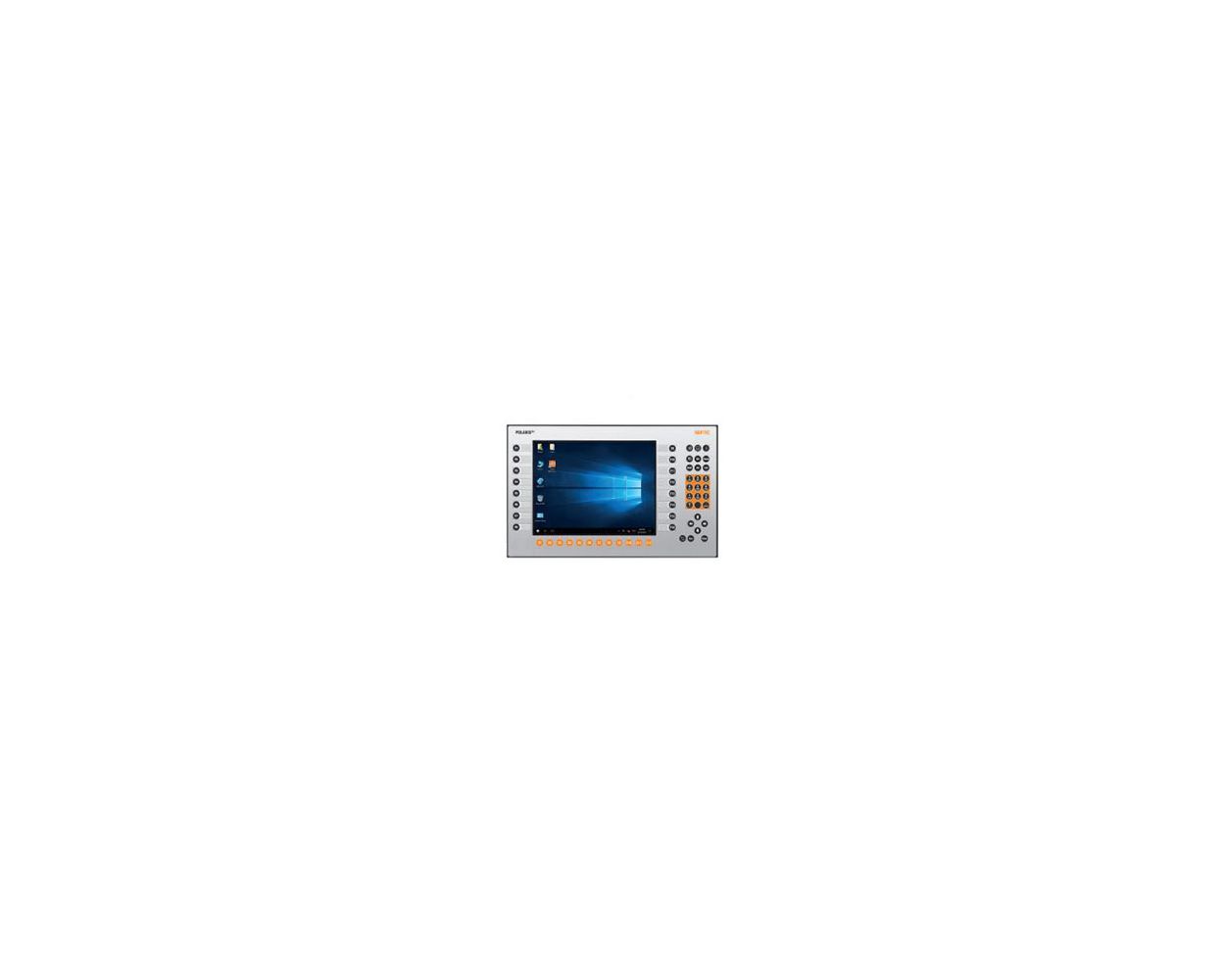

POLARIS PROFESSIONAL Panel PC HMI 12.1" - Zone 1/21 - Windows 7/10
*Price may change due to echange rate.
High-resolution displays with LED technology and touch screen for intuitive and convenient operation are now available in the standard version. State-of-the-art LED display technology ensures the optimum contrast even with a large viewing angle. The panel PC has been equipped as standard with the Intel® Atom™ SoC E3845, 1.91 GHz. Windows 7® Ultimate or Windows 10® IoT can be used as an operating system.
POLARIS PROFESSIONAL Panel PC HMI 12.1" - Zone 1/21 - Windows 7/10
DESCRIPTION
High-resolution displays with LED technology and touch screen for intuitive and convenient operation are now available in the standard version. State-of-the-art LED display technology ensures the optimum contrast even with a large viewing angle. The panel PC has been equipped as standard with the Intel® Atom™ SoC E3845, 1.91 GHz. Windows 7® Ultimate or Windows 10® IoT can be used as an operating system. Thanks to the integrated keyboard customisation for Windows®, Siemens WinCC flexible®, RS View® or BMS-Graf-pro, the POLARIS Touch panels can be used for all visualisation tasks. They can be connected to the control or the process control system through Ethernet, PROFIBUS-DP or various serial COM interfaces. Of course, here too the user can work with the latest BMS-Graf-Pro Version 7, allowing for example the transfer of projects through Ethernet, the use of graphics lists and the integrated user administration. Wired electrical connections are facilitated by integrated terminal compartments. The front-panel fitting design ensures easy installation. On request, the devices are also available as ready-made system solutions in Stainless-steel enclosure for wall or floor mounting. They also feature an intrinsically safe USB interface for a USB Ex i flash drive. Intrinsically safe input devices can also be connected.
Features
- Touchscreen
- Intel® Atom™ E3845, 4 x 1.91 GHz
- SSD with Power Protected
- Direct connection in hazardous areas
- Windows® 10 IoT LTSB
- Integrated keyboard customisation
TECHNICAL DATA
| Construction | Front-panel fitting |
| Protection class | IP 65 (front) IP 54 (back) |
| Display | 12.1" TFT graphic display 16.7 million colors Resolution XGA 1024 x 768 pixels Brightness 500 cd/m² Visible surface approx. 246 x 184 mm Contrast 700:1 Touchscreen (resistive) |
| Backlighting | LED technology Service life approx. 50,000 hours (at +25 °C |
| Computer capacity | Processor: Intel® Atom™ E3845, 4 x 1.91 GHz 4 or 8 GB RAM 100 GB HD or 128 GB SSD (MLC) |
| Operating system | Windows 7® Ultimate or Windows® 10 IoT LTSB |
| Keyboard (short-stroke keys) |
Alphanumeric key block 4 cursor keys 12 special keys 16 function keys able to be labelled with LEDs |
| Interfaces (basic version) |
1 x Ex e Ethernet 100/10BaseT 1 x Ex e USB 1 x Ex e RS422 1 x Ex i USB for Ex i memory stick 1 x Ex i PS/2 for intrinsically safe mouse |
| Optional accessories | Hand-held scanner on request |
| Dimensions (W x H x D) | 440 mm x 275 mm x approx. 130 mm |
| Wall cut-out | 425 mm x 255 mm + 0.5 mm |
| Weight | approx. 18 kg |
| Power supply | DC 24 V ± 10 % |
| Max. power consumption | n Pmax.< 35 W |
| Permissible ambient temperatures | Storage -20 °C to +50 °C Operation 0 °C to +50 °C Variant Operation -20 °C to +50 °C on request (without external heating) |
| Relative air humidity | 5 % to 95 % non-condensing |
| Vibration | 0.7 g/1 mm; 5 Hz to 500 Hz pulse in all 3 axes |
| Shock | 15 g/11 ms pulse in all 3 axes |
| Material | Front: polyester foil on anodised aluminium plate (conditionally UV-resistant) Back: bichromated sheet steel |
Accessories
| Accessory | Price | Datasheet |
| Keyboard | Call For Price |  Datasheet.pdf |
| Enclosure for Mouse and Keyboard | Call For Price | Datasheet.pdf |
| Mouse | Call For Price | Datasheet.pdf |
| Trackball, Joystick | Call For Price | Datasheet.pdf |
| Touchpad | Call For Price | Datasheet.pdf |
| USB Ex d Enclosure | Call For Price | Datasheet.pdf |
| Ex i USB Stick | Call For Price | Datasheet.pdf |
| Connection Cable for Keyboard and Mouse | Call For Price | Datasheet.pdf |
| Reinforcement Frame | Call For Price | Datasheet.pdf |
| Mounting Clamps Set | Call For Price | Datasheet.pdf |
| LAN STP Cable | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure for Floor Mounting | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure Without Supporting Bracket | Call For Price | Datasheet.pdf |
| Basic Stainless Steel Enclosure for Wall Mounting | Call For Price | Datasheet.pdf |
| Stainless Steel Enclosure "Exklusiv II" with Adapter Connection | Call For Price | Datasheet.pdf |
| Stainless Steel Enclosure - Swivel/Tilt Without Desktop Mount | Call For Price | Datasheet.pdf |
| Desktop Mount for Stainless Steel Enclosure for 15" Series/19.1" Series | Call For Price | Datasheet.pdf |
| Support Arm for Wall Mounting | Call For Price | Datasheet.pdf |
| Stand for Floor Mounting Stainless Steel Enclosure | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure with Addtional Fitted Components | Call For Price | Datasheet.pdf |
APPROVALS
ATEX:
II 2G Ex db eb q [ib] IIC T4 Gb II 2D Ex tb IIIC T120 °C Db
IECEx:
Ex db eb q [ib] IIC T4 Gb
Ex tb IIIC T120 °C Db
DOWNLOADS
Prices
| ATEX and IECEx Zone 1 and 21 | 17-71V1-8037/K000 000 | € 7.585,50 |
| ATEX Zone 2 and 22 | B7-72V1-8037/K000 000 | € 6.069,50 |
