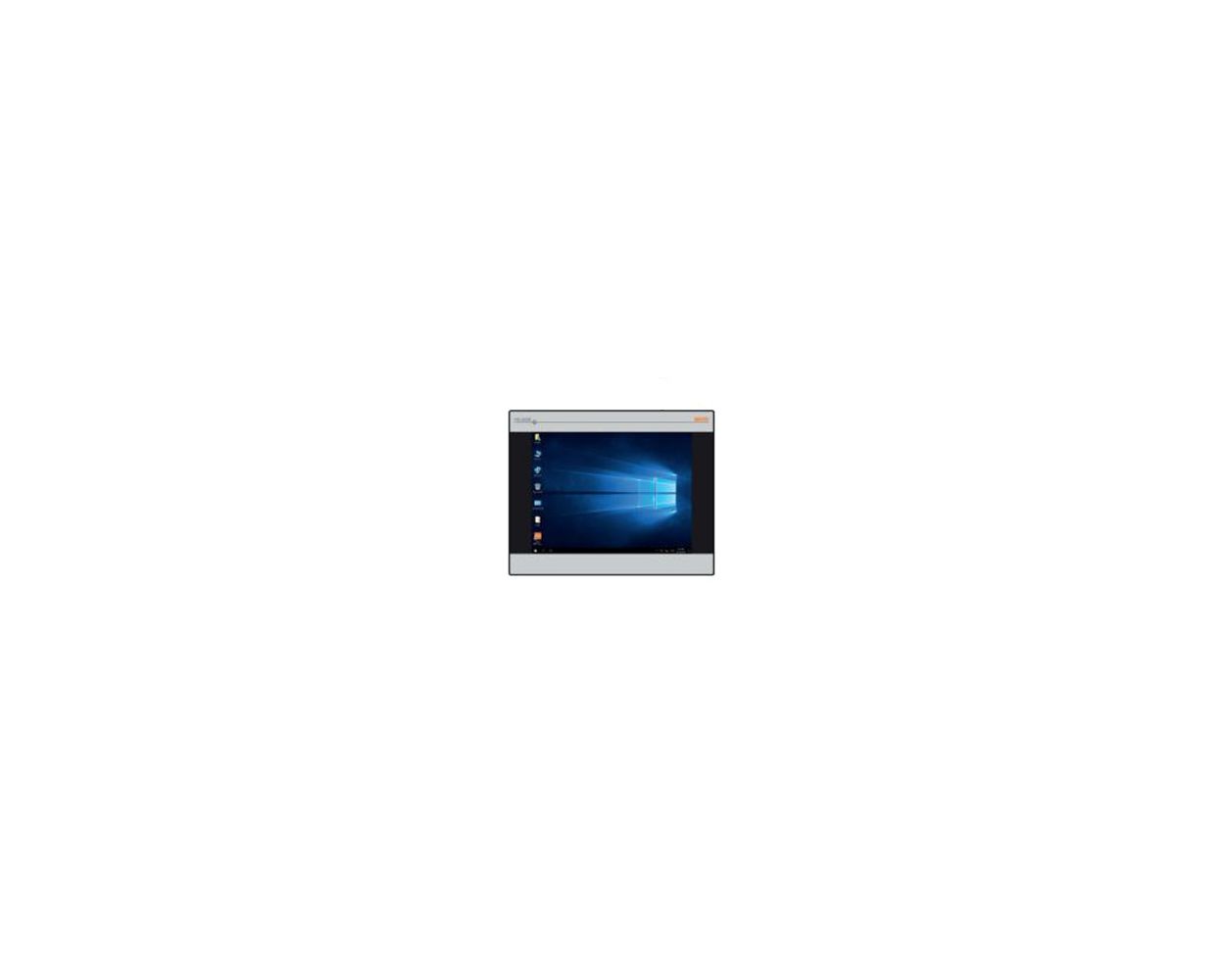

POLARIS PROFESSIONAL Panel PC HMI 15" - Zone 1/21 - Windows 7/10

€7,865.50
*Price may change due to echange rate.
SKU
42326165

The panel PC has been equipped as standard with the Dual Core Processor AMD T40E/2 x 1.0 GHz; 4 GB RAM. The Ethernet interface can be used to connect individual computers or network devices, e. g. a printer, to an existing local network (LAN) (WLAN is also a possible option) or local networks can be set up completely wirelessly.

POLARIS PROFESSIONAL Panel PC HMI 15" - Zone 1/21 - Windows 7/10

DESCRIPTION

The panel PC has been equipped as standard with the Dual Core Processor AMD T40E/2 x 1.0 GHz; 4 GB RAM. The Ethernet interface can be used to connect individual computers or network devices, e. g. a printer, to an existing local network (LAN) (WLAN is also a possible option) or local networks can be set up completely wirelessly. This facilitates a high-performance visualisation and operation of the processes directly on site. The wired electrical connections are realised via a terminal compartment of the “e” type of protection (increased safety). The state-of-the-art display technology guarantees an optimum contrast, even with large viewing angle. The Front-panel fitting assures easy installation. On request, the devices are also available as ready-made system solutions in Stainless-steel enclosure for wall or floor mounting. An intrinsically safe USB interface is available for a USB Ex i memory stick. Intrinsically safe input devices can also be connected. The optional (intrinsically safe) touchscreen offers the optimum in operating comfort. Windows 7® Ultimate or Windows 7® Embedded MUI can be used as an operating system. The Panel PCs therefore support the installation of numerous software packages, such as customer-specific software or other commercially available standard visualisation software. Of course, here too the operator can also work with the BARTEC “BMS-Graf-pro“ programming package (Version 7.xxx or newer). The BARTEC PROFIBUS-DP interface can only be used in connection with the BARTEC “BMS-Graf-pro” software.

Features

  • Ethernet interface
  • Easy front panel fitting
  • Intrinsically safe USB interface
  • Graphics-capable TFT colour display
  • Direct linkage in explosive areas
  • Optional touch screen
  • Optional WLAN
  • Siemens PROFIBUS-DP/MPI interface

TECHNICAL DATA

Protection class IP 65 (front)
IP 54 (back)
Structure Front-panel fitting
Dimensions 411 mm x 332 mm x approx. 135 mm
Wall cut-out 394.5 mm x 315.5 mm + 0.5 mm
Material Front: polyester foil on anodised aluminium plate
(conditionally UV-resistant)
Back: bichromated sheet steel
Storage temperature -20 °C to +50 °C
Vibration 0.7 g/1 mm; 5 Hz - 500 Hz pulse in all 3 axes
Shock resistance 15 g/11 ms pulse in all 3 axes
Weight approx. 23 kg
Display 15” graphics-capable TFT colour display
16.2 million colours
XGA resolution, 1024 x 768 pixels
Brightness 500 cd/m2
Visible area approx. 304 x 228 mm
Contrast 800:1
Antireflection-coating glass pane
Optional touchscreen (resistive)
Operating system Windows 7® Ultimate or
Windows 7® Embedded MUI
CPU AMD T40E/2 x 1,0 GHz
Memory 4 GB RAM/100 GB HD
optional: 128 GB SSD
Voltage AC 90 to 253 V, 50 to 60 Hz
DC 24 V ± 10 % on request
Power Pmax. < 70 W


Accessories

Accessory Price Datasheet
Keyboard Call For Price  Datasheet.pdf
Enclosure for Mouse and Keyboard Call For Price  Datasheet.pdf
Mouse Call For Price  Datasheet.pdf
Trackball, Joystick Call For Price  Datasheet.pdf
Touchpad Call For Price  Datasheet.pdf
USB Ex d Enclosure Call For Price  Datasheet.pdf
Ex i USB Stick Call For Price  Datasheet.pdf
Connection Cable for Keyboard and Mouse Call For Price  Datasheet.pdf
Reinforcement Frame Call For Price  Datasheet.pdf
Mounting Clamps Set Call For Price  Datasheet.pdf
LAN STP Cable Call For Price  Datasheet.pdf
Standard Stainless Steel Enclosure for Floor Mounting Call For Price  Datasheet.pdf
Standard Stainless Steel Enclosure Without Supporting Bracket Call For Price  Datasheet.pdf
Basic Stainless Steel Enclosure for Wall Mounting Call For Price  Datasheet.pdf
Stainless Steel Enclosure "Exklusiv II" with Adapter Connection Call For Price  Datasheet.pdf
Stainless Steel Enclosure - Swivel/Tilt Without Desktop Mount Call For Price  Datasheet.pdf
Desktop Mount for Stainless Steel Enclosure for 15" Series/19.1" Series Call For Price  Datasheet.pdf
Support Arm for Wall Mounting Call For Price  Datasheet.pdf
Stand for Floor Mounting Stainless Steel Enclosure Call For Price  Datasheet.pdf
Standard Stainless Steel Enclosure with Addtional Fitted Components Call For Price  Datasheet.pdf


APPROVALS

ATEX:
Ex II 2G Ex db eb q [ib] IIC T4 Gb
Ex II 2D Ex tb IIIC T120 °C Db


IECEx:
Ex db eb q [ib] IIC T4 Gb
Ex tb IIIC T120 °C Db

DOWNLOADS

 Datasheet.pdf

 Atex-certificate.pdf

 IECEx-certificate.pdf

PRICES

ATEX and IECEx Zone 1 and 21 17-71V1-4076/K000 000 € 7.865,50
ATEX Zone 2 and 22 B7-71V1-4076/K000 000 € 6.404,00
