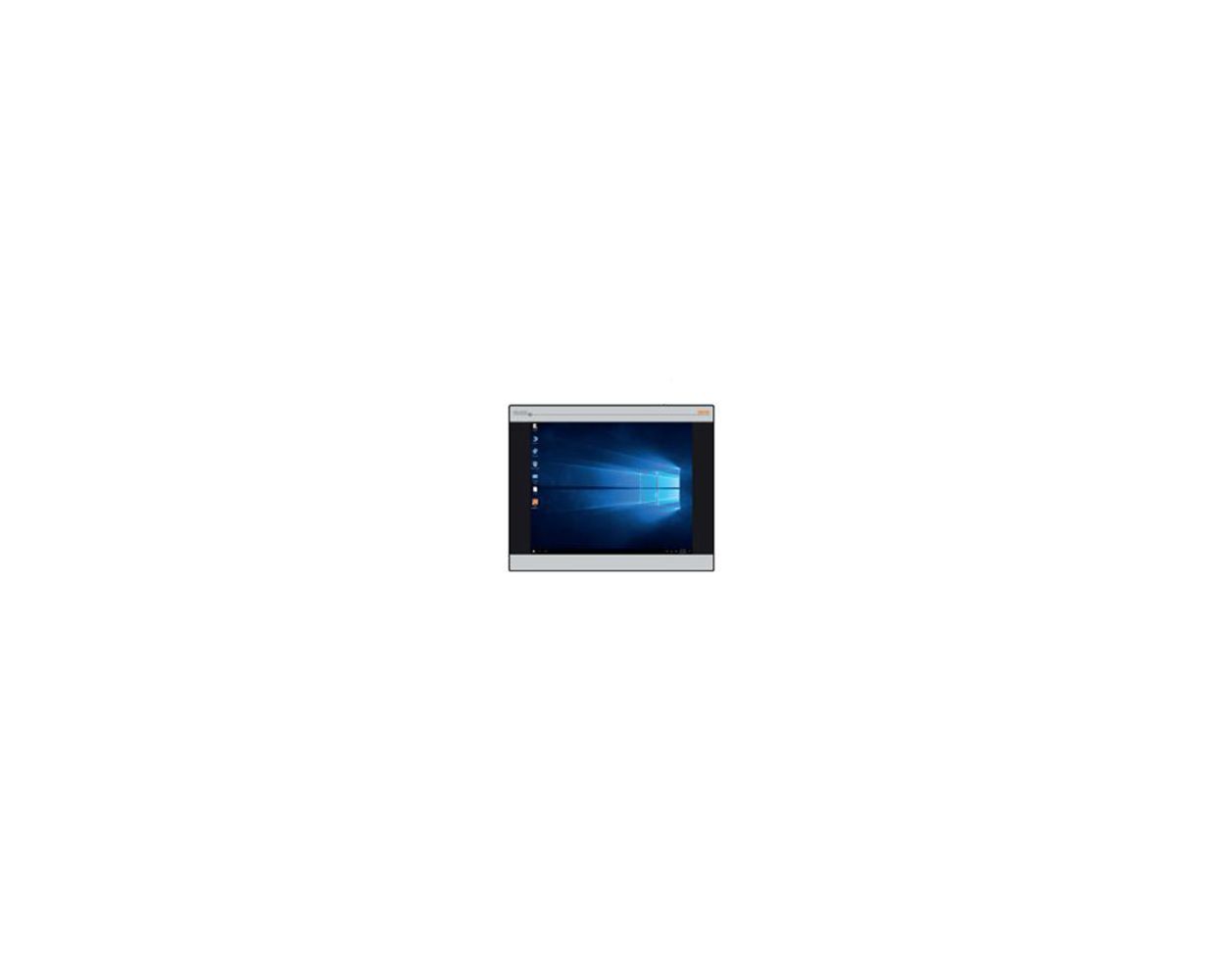

POLARIS PROFESSIONAL Panel PC HMI 19.1" - Zone 1/21 - Windows 7/10
*Price may change due to echange rate.
The panel PC has been equipped as standard with the Intel® Atom™ SoC E3845, 1.91 GHz. The Ethernet interface can be used to connect individual computers or network devices, e. g. a printer, to an existing local network (LAN) (WLAN is also a possible option) or local networks can be set up completely wirelessly.
POLARIS PROFESSIONAL Panel PC HMI 19.1" - Zone 1/21 - Windows 7/10
DESCRIPTION
The panel PC has been equipped as standard with the Intel® Atom™ SoC E3845, 1.91 GHz. The Ethernet interface can be used to connect individual computers or network devices, e. g. a printer, to an existing local network (LAN) (WLAN is also a possible option) or local networks can be set up completely wirelessly. This facilitates a high-performance visualisation and operation of the processes directly on site. The wired electrical connections are realised via a terminal compartment of the “e” type of protection (increased safety). The state-of-theart display technology guarantees an optimum contrast, even with large viewing angle. The Front-panel fitting assures easy installation. On request, the devices are also available as ready-made system solutions in Stainless-steel enclosure for wall or floor mounting.An intrinsically safe USB interface is available for a USB Ex i memory stick. Intrinsically safe input devices can also be connected. The optional (intrinsically safe) touchscreen offers the optimum in operating comfort. Windows 7® Ultimate or Windows 10® IoT can be used as an operating system. This means that the PCs are open for many different software packages, for example customised software or various types of commercially available standard visualisation software. Of course, here too the operator can also work with the BARTEC “BMS-Graf-pro” programming package (Version 7.xxx or newer). The BARTEC PROFIBUS-DP interface can only be used in connection with the BARTEC “BMS-Graf-pro” software.
Features
- Touchscreen
- Intel® Atom™ E3845, 4 x 1.91 GHz
- SSD with Power Protected
- Direct connection in hazardous areas
- Windows® 10 IoT LTSB
TECHNICAL DATA
Download the datasheet to view all technical data.
Accessories
| Accessory | Price | Datasheet |
| Keyboard | Call For Price |  Datasheet.pdf |
| Enclosure for Mouse and Keyboard | Call For Price | Datasheet.pdf |
| Mouse | Call For Price | Datasheet.pdf |
| Trackball, Joystick | Call For Price | Datasheet.pdf |
| Touchpad | Call For Price | Datasheet.pdf |
| USB Ex d Enclosure | Call For Price | Datasheet.pdf |
| Ex i USB Stick | Call For Price | Datasheet.pdf |
| Connection Cable for Keyboard and Mouse | Call For Price | Datasheet.pdf |
| Reinforcement Frame | Call For Price | Datasheet.pdf |
| Mounting Clamps Set | Call For Price | Datasheet.pdf |
| LAN STP Cable | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure for Floor Mounting | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure Without Supporting Bracket | Call For Price | Datasheet.pdf |
| Basic Stainless Steel Enclosure for Wall Mounting | Call For Price | Datasheet.pdf |
| Stainless Steel Enclosure "Exklusiv II" with Adapter Connection | Call For Price | Datasheet.pdf |
| Stainless Steel Enclosure - Swivel/Tilt Without Desktop Mount | Call For Price | Datasheet.pdf |
| Desktop Mount for Stainless Steel Enclosure for 15" Series/19.1" Series | Call For Price | Datasheet.pdf |
| Support Arm for Wall Mounting | Call For Price | Datasheet.pdf |
| Stand for Floor Mounting Stainless Steel Enclosure | Call For Price | Datasheet.pdf |
| Standard Stainless Steel Enclosure with Addtional Fitted Components | Call For Price | Datasheet.pdf |
APPROVALS
ATEX:
II 2G Ex db eb q [ib] IIC T4 Gb II 2D Ex tb IIIC T120 °C Db
IECEx:
Ex db eb q [ib] IIC T4 Gb
Ex tb IIIC T120 °C Db
DOWNLOADS
PRICES
| ATEX and IECEx Zone 1 and 21 | 17-71V1-5076/K000 000 | € 8.371,00 |
| ATEX Zone 2 and 22 | B7-72V1-5076/K000 000 | € 6.696,50 |
