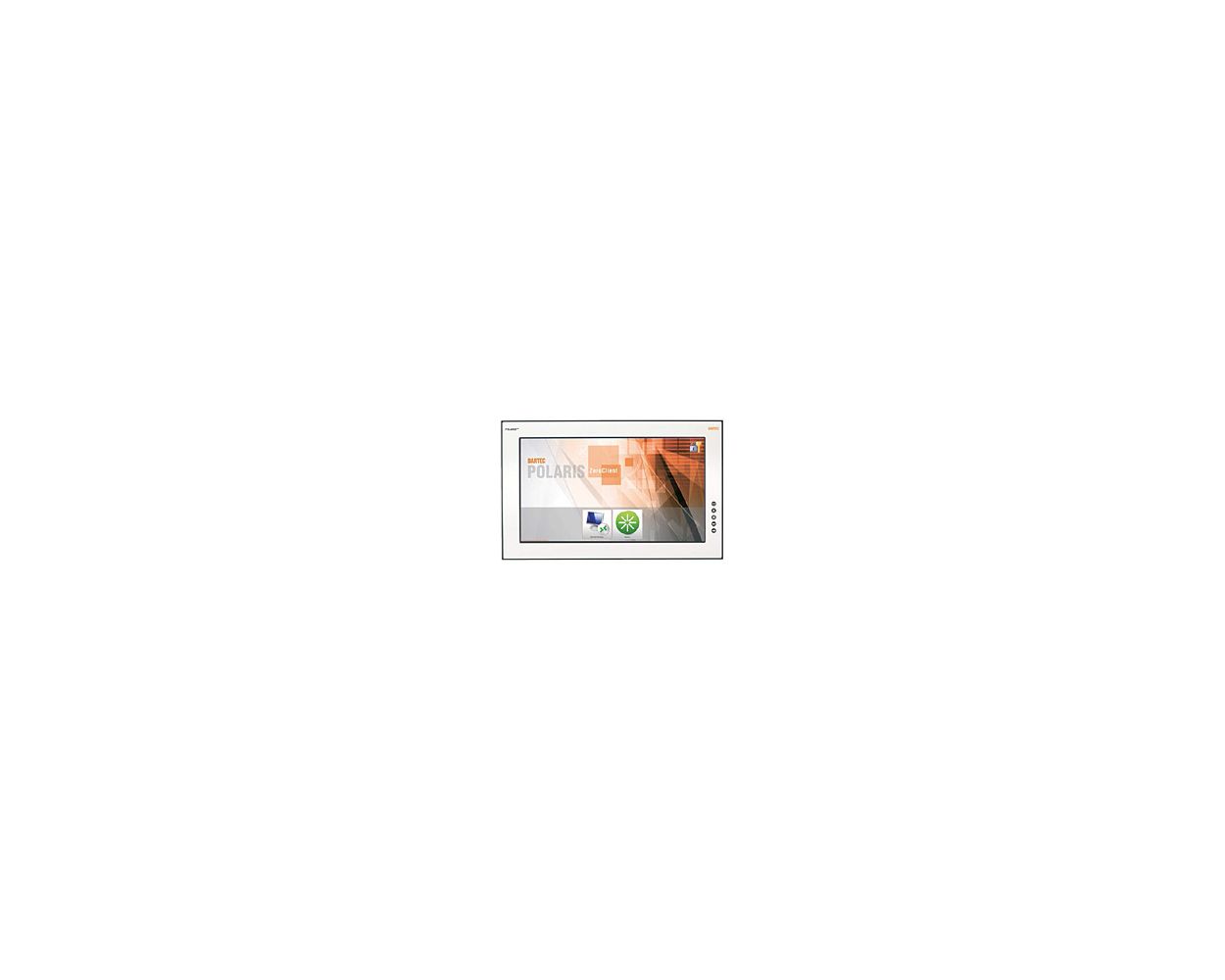

POLARIS REMOTE ZeroClient HMI 24" - Zone 1/21

€8,260.00
*Price may change due to echange rate.
SKU
42326183

The POLARIS ZeroClient series is the modern safe remote HMI series for the Zone 1 hazardous area. The connection is based on the RDP7 protocol to control a remote computer.

POLARIS REMOTE ZeroClient HMI 24" - Zone 1/21

DESCRIPTION

The POLARIS ZeroClient series is the modern safe remote HMI series for the Zone 1 hazardous area. The connection is based on the RDP7 protocol to control a remote computer. The ZeroClient shell, developed by BARTEC itself, comes in a user-friendly tile look and was designed in conformance to today’s safety standards to prevent any risks emanating from the user or the network. The wired electrical connections are made via a terminal compartment in the “e” (increased safety) type of protection. State-of-the-art display technology provides optimum contrast even with a large viewing angle. The front-panel fitting assures easy installation. On request, the devices are also available as turn-key system solutions in stainless-steel enclosures as wall, floor or ceiling mounting versions. Intrinsically safe input devices can also be connected. The optional (intrinsically safe) touchscreen offers the ultimate in operating comfort.

FEATURES

  • Safety principle
  • Direct linkage in explosive areas
  • Ethernet interface
  • Easy front panel fitting
  • Graphic-capable TFT colour display

TECHNICAL DATA

Protection class IP 65 (front)
IP 54 (back)
Structure Front-panel fitting
Dimensions (width x height x depth) 644 mm x 406 mm x approx. 135 mm
Wall cut-out 630 mm x 392 mm + 0.5 mm
Material Front: polyester foil on anodised aluminium plate
(conditionally UV-resistant)
Back: bichromated sheet steel
Storage temperature -20 °C to +50 °C
Vibration 0.7 g/1 mm; 5 Hz-500 Hz pulse in all 3 axes
Shock resistance 15 g/11 ms pulse in all 3 axes
Weight Approx. 40 kg
Display 24" W graphics-capable TFT colour display
16.7 million colours
Full HD resolution, 1920 x 1080 pixels
Brightness 300 cd/m2
Visible area approx. 531 x 299 mm
Contrast 3000:1
Antireflection-coated glass pane
Optional touchscreen (resistive)
Interface 1 x Ex e Ethernet 100/10BaseT (optical fibres optional)
1 x Ex e USB
1 x Ex i USB
2 x Ex i PS/2 for intrinsically safe keyboard and mouse
Voltage AC 90 to 253 V, 50 to 60 Hz
DC 24 V ± 10 % on request
Power Pmax. < 100 W depending on the variant


ACCESSORIES

Accessory Price Datasheet
Keyboard Call For Price  Datasheet.pdf
Enclosure for Mouse and Keyboard Call For Price  Datasheet.pdf
Mouse Call For Price  Datasheet.pdf
Trackball, Joystick Call For Price  Datasheet.pdf
Touchpad Call For Price  Datasheet.pdf
Connection Cable for Keyboard and Mouse Call For Price  Datasheet.pdf
Reinforcement Frame Call For Price  Datasheet.pdf
Mounting Clamps Set Call For Price  Datasheet.pdf
LAN STP Cable Call For Price  Datasheet.pdf
Power Pack for Local Unit Call For Price  Datasheet.pdf
19" Rack Mounting for Local Unit Call For Price  Datasheet.pdf
USB to PS/2 Converter Call For Price  Datasheet.pdf
Local Unit/STP Cable Black Box Brand Call For Price  Datasheet.pdf
Local Unit/STP Cable IHSE Brand Call For Price  Datasheet.pdf
KVM Cable Call For Price  Datasheet.pdf
Standard Stainless Steel Enclosure with Adapter Connection without Stand  Call For Price  Datasheet.pdf
Exclusive II Stainless Steel Enclosure with Adapter Connection Call For Price  Datasheet.pdf
Stainless Steel Enclosure - Swivel/Tilt without Desktop Mount Call For Price  Datasheet.pdf
Desk Mounting for Enclosure 15"/19.1" Series Call For Price  Datasheet.pdf
Support Arm for Wall Mounting Call For Price  Datasheet.pdf
Stand for Floor Mounting for Exclusive II Stainless Steel Enclosure Call For Price  Datasheet.pdf
Standard Stainless Steel Enclosure with Additional Fitted Components Call For Price  Datasheet.pdf



APPROVALS


ATEX:
Ex II 2G Ex db eb q [ib] IIC T4 Gb
Ex II 2D Ex tb IIIC T120 °C Db

IECEx:
Ex db eb q [ib] IIC T4 Gb
Ex tb IIIC T120 °C Db

DOWNLOADS

 Datasheet.pdf

 Atex-certificate.pdf

 IECEx-certificate.pdf

PRICES

ATEX and IECEx Zone 1 and 21 17-71V1-C072/Z000/.200 € 8.260,00
ATEX Zone 2 and 22 B7-72V1-C072/Z000/.200 € 6.607,50
