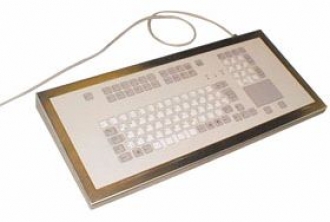

ATEX 100 Intrinsically Safe Keyboard Zone 1

Call for Price
*Price may change due to echange rate.
SKU
atex_id_107

The Intrinsically Safe 100 ATEX Keyboard is a fully functional keyboard with 102 under a foil with an integrated foil covered capacitive mouse pad with full mouse functionality. The ATEX Keyboard can be connected to a pc located in the safe area via the iSOLATE100 galvanically isolated intrinsically safe interface isolater. The iSOLATE isolator is powered by the PC keyboard and mouse ports and is connected to the pc b using standard plug in screw terminals and PS2 plugs.

ATEX 100 Intrinsically Safe Keyboard Zone 1

Fully functional robust ATEX keyboard with mouse pad

This product is end of life, for a suitable solution please contact us

The Intrinsically Safe 100 ATEX Keyboard is a fully functional keyboard with 102 under a foil with an integrated foil covered capacitive mouse pad with full mouse functionality. The ATEX Keyboard can be connected to a pc located in the safe area via the iSOLATE100 galvanically isolated intrinsically safe interface isolater. The iSOLATE isolator is powered by the PC keyboard and mouse ports and is connected to the pc b using standard plug in screw terminals and PS2 plugs.

The ATEX Keyboard has a maximum distance between the iSOLATE100 and the Keyboard up to 20 metres by using a PS2 cable and up to 50 metres using a CAT5 STP cable. The Explosion Proof Keyboard100 has a polyester foil overlay which provides protection against excess dirt and accidental spills which gives the Intrinsically Safe Keyboard a long life time.

Easy maintenance and fully integrated touch pad

Once the ATEX Keyboard is fitted, cleaning the exposed overlay i all the maintenance required to keep the Explosion Proof Keyboard clean and as new. The ATEX Keyboard comes complete with a user friendly integrated touch pad which acts as a mouse.

Specifications



Certification Number: TUV 04 ATEX 2646
Certification Type: II 2G EEx ia IIC T4
Dimensions: 50 x 523 x 238 mm
IP Rating: IP66 Front, IP20 Rear
Ambient Temperature: -30C to + 60C
Electrical Connection: 1.5m long lead for connection to screw terminals
Power Supply: From the PC Keyboard or mouse port
Keyboard Type: MF2 (102 keys) with integrated mouse pad PC AT, PS2 compatible
Keyboard Layouts: US English - Options German, French, Russian
Mounting: Desktop, Fush or Surface
Material: Polyester foil overlay, built into a desk top stainless steel enclosure
