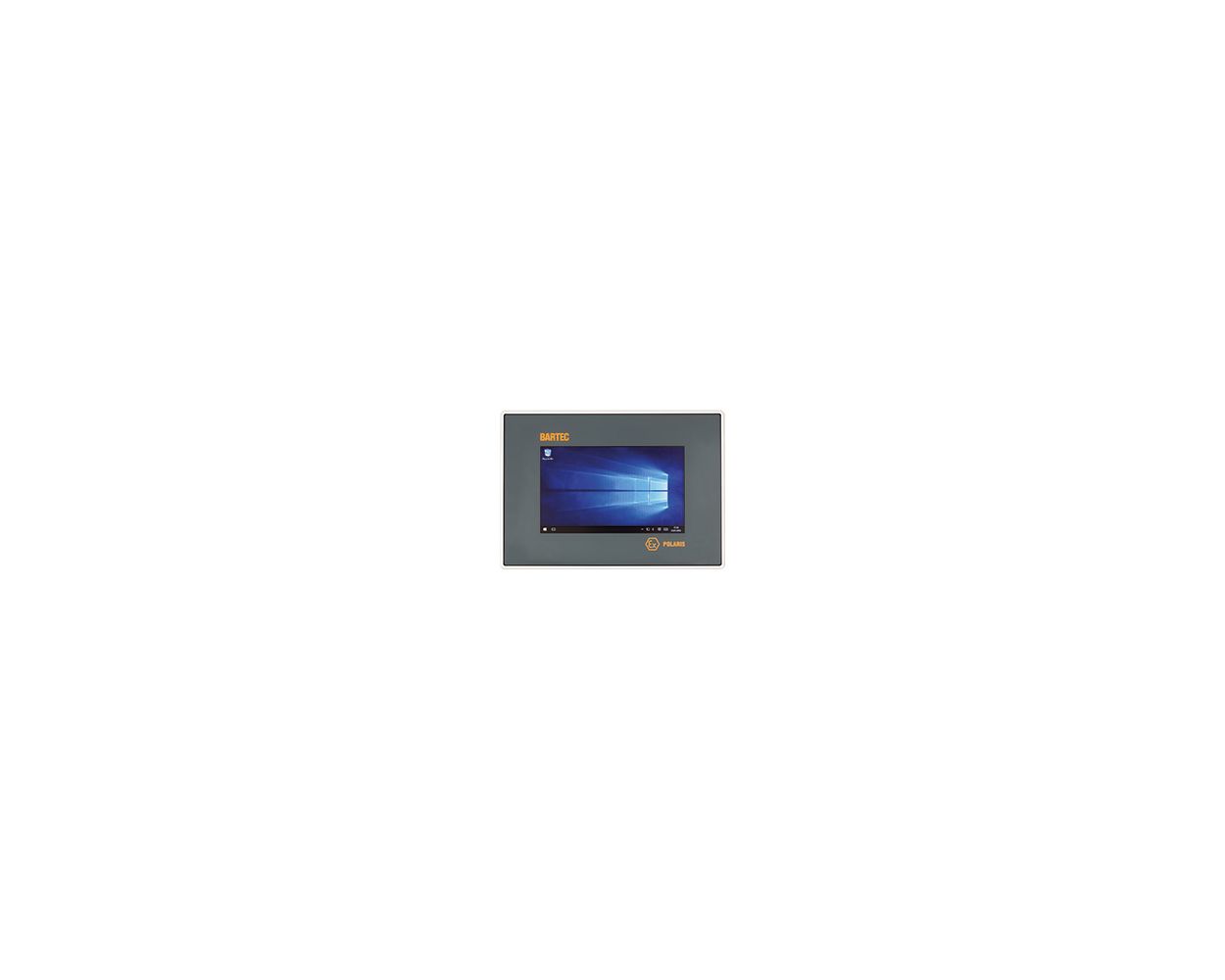

POLARIS SMART HMI 7" W - Zone 1/21 - Windows 7/10

€3,500.00
*Price may change due to echange rate.
SKU
42326116

The POLARIS SMART HMI 7" W is an innovative further development of the POLARIS series. The high-resolution display with LED backlighting and touchscreen allows intuitive and comfortable operation. It is optionally available in a capacitive or in a resistive version.

POLARIS SMART HMI 7" W - Zone 1/21 - Windows 7/10

Description

The POLARIS SMART HMI 7" W is an innovative further development of the POLARIS series. The high-resolution display with LED backlighting and touchscreen allows intuitive and comfortable operation. It is optionally available in a capacitive or in a resistive version. The state-of-the-art LED display technology offers optimum contrast even with large viewing angles or in poor lighting conditions. As standard, the Panel PC is equipped with a third-generation processor, the Intel® AtomTM with 2 x 1.46 GHz. The open Windows operating system makes the device series unique on the market. It is also possible to work with the BMS-Graf-Pro. Connection to the control or to the process control system is facilitated by Ethernet. The front-panel insertion allows easy installation. On request, the devices are also available as ready-made system solutions in stainless-steel enclosures for wall or floor mounting. The intrinsically safe USB interfaces are accessible on the back. Intrinsically safe input devices are connected also.

Features

  • Open operating system
  • Slim and modern industrial design
  • Clean-room-compliant version (gap-free)
  • Optimized connection technology
  • Sunlight readable display
  • Low-reflective (the capacitive design)
  • Optionally available as a resistive touch display

Technical data

Structure Front-panel fitting
Dimensions 240 mm x 170 mm x 80 mm
Wall cut-out 226 mm x 153 mm
Display 7" W TFT colour display
262,144 colours
WVGA resolution, 800 x 480 pixels
brightness 500 cd/m2
visible surface approx. 152 mm x 91 mm
contrast 600:1
sunlight readable display
Interface 2 x Ex i USB 2.0
2 x Ex e USB 2.0
1 x Ethernet 100 BaseT
Operating system Windows® 10 IoT or
Windows 7® Ultimate or
Windows 7® Embedded
CPU CPU Intel® AtomTM (E 3826)
Dual Core with 2 x 1.46 GHz
RAM: 2 GB (optional: 4 GB)
4 GB internal Flash Drive
hard-drive SSD with 128 GB (MLC)

Accessories

Accessory Price Datasheet
Smart Keyboard Call For Price  Datasheet.pdf
Ex i Memory Stick Call For Price  Datasheet.pdf
Smart USB Devices Call For Price  Datasheet.pdf

Approvals

ATEX:
Ex II 2G Ex eb q [ib] IIC T4 Gb
Ex II 2D Ex tb IIIC T120 °C Db


IECEx:
Ex db eb q [ib] IIC T4 Gb
Ex tb IIIC T120 °C Db

Downloads

 Datasheet.pdf

 Atex-certificate.pdf

 IECEx-certificate.pdf

Prices

Windows® 10 IoT LTSB 32 bit (incl. Recovery)      17-71V6-1100/0100 € 3.500,00
Windows 7® Ultimate 32 bit (incl. Recovery) 17-71V6-1100/0200 € 3.850,00
