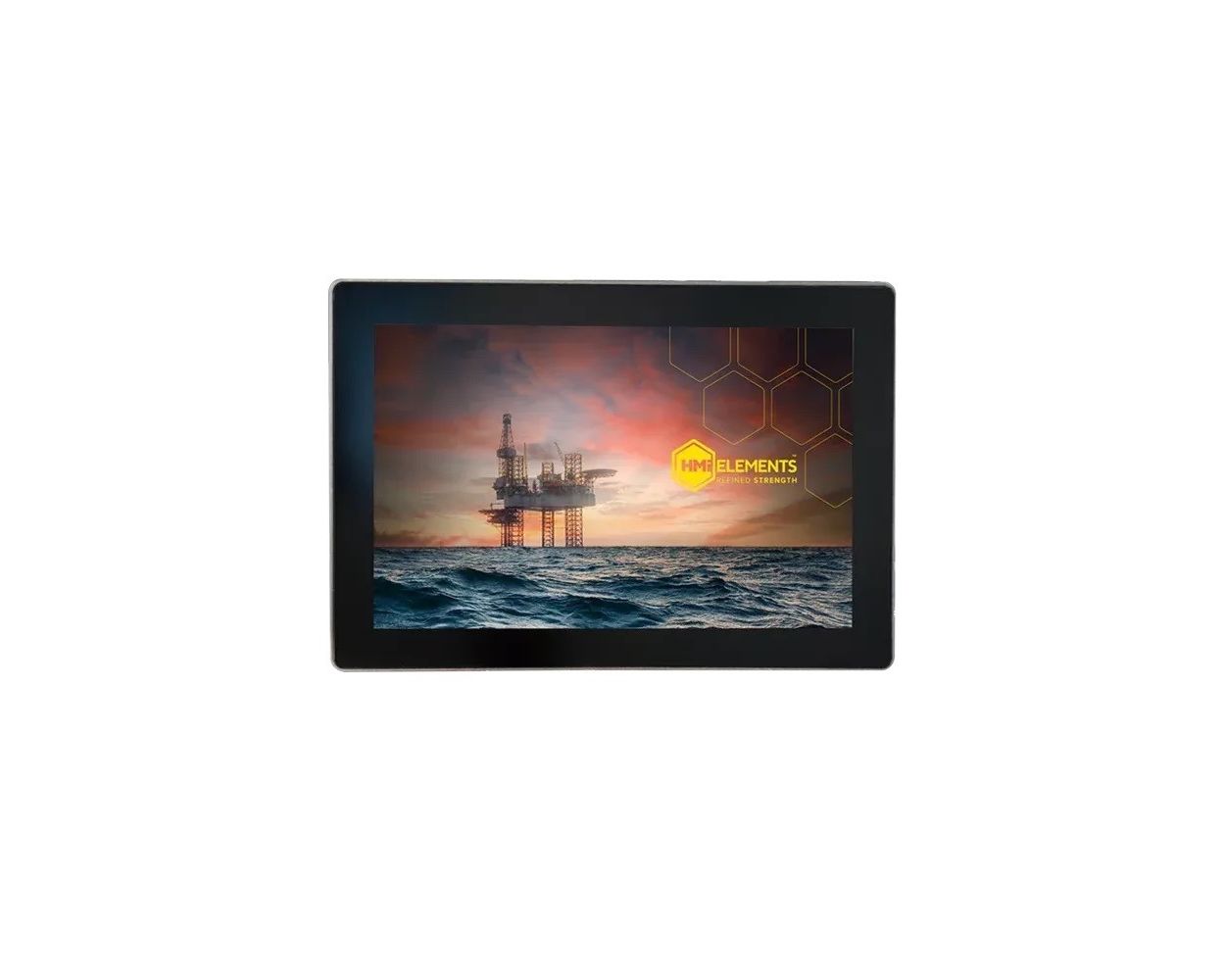

The HMI Elements 1402-Z2 is a lightweight Zone 2 PC workstation with easy-to-use features, touchscreen controls and a super-bright, 1000 or 400 nit glove friendly, multi-touch 15.6" sunlight viewable widescreen. This lightweight, rugged, IP66 rated unit is field maintainable and delivers exceptional performance in hazardous environments.

Certified for ATEX, UKEX, IECEx, NEC 505 (AEx), and CSA 22.1 Zone 2 applications, the 1402-Z2 combines cutting-edge Intel 11th Gen Tiger Lake Core i7-1185GRE processing power with a brilliant 15.6" PCT glove friendly, multi-touch widescreen available in ultra-bright 1000 nit or energy-efficient 400 nit configurations.

Weighing just 9kg (19.8 lbs) with comprehensive connectivity including Ethernet, Wi-Fi & Bluetooth, this PC workstation is engineered for reliability and performance in demanding Zone 2 industrial applications.

WHY YOU NEED THIS PC

Zone 2 environments require robust computing solutions that don't sacrifice mobility or performance. Whether you're working in oil & gas facilities, chemical processing plants, grain handling, or pharmaceutical manufacturing, the 1402-Z2 delivers full PC functionality in the most portable Zone 2 certified package available.

The super lightweight design makes it ideal for mobile applications, temporary installations, or environments where equipment needs to be frequently repositioned. Despite its light weight, the rugged aircraft grade aluminum construction ensures durability in demanding industrial conditions.

With its super-bright display options and glove-friendly multi-touch interface, operators can work effectively in any lighting condition while maintaining the tactile control needed for critical operations, even when wearing protective equipment.

INDUSTRY-LEADING FEATURES

Certifications:

Zone 2 hazardous area for gas and dust
ATEX, UKEX, IECEx, NEC 505 (AEx), CSA 22.1 Canadian Electrical Code (CEC) Section 18
II3 G D, Ex ec ic IIC T4 Gc, Ex tc IIIC T135°C Dc

Performance:

Intel® 11th Gen Tiger Lake Core i7-1185GRE processor
Windows 11 IoT Enterprise or Windows 10 IoT Enterprise LTSC
Memory options: 8GB, 16GB, 32GB & 64GB RAM
SSD options: Up to 2x SATA 3.0 SSD (High/Standard Endurance, 64GB to 1TB)

Display:

15.6" Wide Screen - 1920 x 1080 PCT glove friendly, multi-touch
Brightness options: 1000 nits or 400 nits
FHD AAS resolution: 1920 x 1080, wide viewing angle
24-bit (16.2M) colors
Projective Capacitive Technology (PCT) - Multi-touch, glove-friendly

Connectivity:

2 x Intel I225-LM Ethernet (10/100/1000 Mbps)
Wi-Fi IEEE 802.11 ac/a/b/g/n (2.4GHz and 5GHz) - Optional
Bluetooth V5.2 - Optional
2 x USB 2.0 ports
2 x COM ports supporting RS232, RS422 or RS485

Construction:

Lightweight: 9kg (19.8lbs) excluding connectors and accessories
Compact: 408mm x 254mm x 101mm (16.06" x 10" x 3.98")
IP66/NEMA 4X ingress protection
Operating temperature: -40°C to +60°C (-40°F to +140°F)
Field maintainable design

Installation:

Optional lifting handle increases height to 274mm (10.79")
Mounting options: VESA (100mm x 100mm), Yoke, Panel, Desktop
Interchangeable bottom or rear mounted I/O plate
Cable glands or connectors optional

Advanced Features:

Side panel controls: Screen brightness, Power on-off
Dual color LED diagnostic indicator
Power sequencing and heater control indicator
AC universal power supply: 100-240Vac
Storage temperature: -40°C to +85°C (-40°F to +185°F)
Humidity: 10-90% non-condensing (operating)

Standards Compliance:

EMC Emissions/Immunity: Class A Certified under EN55032, EN55035

FCC Radio: ESTI EN301489
