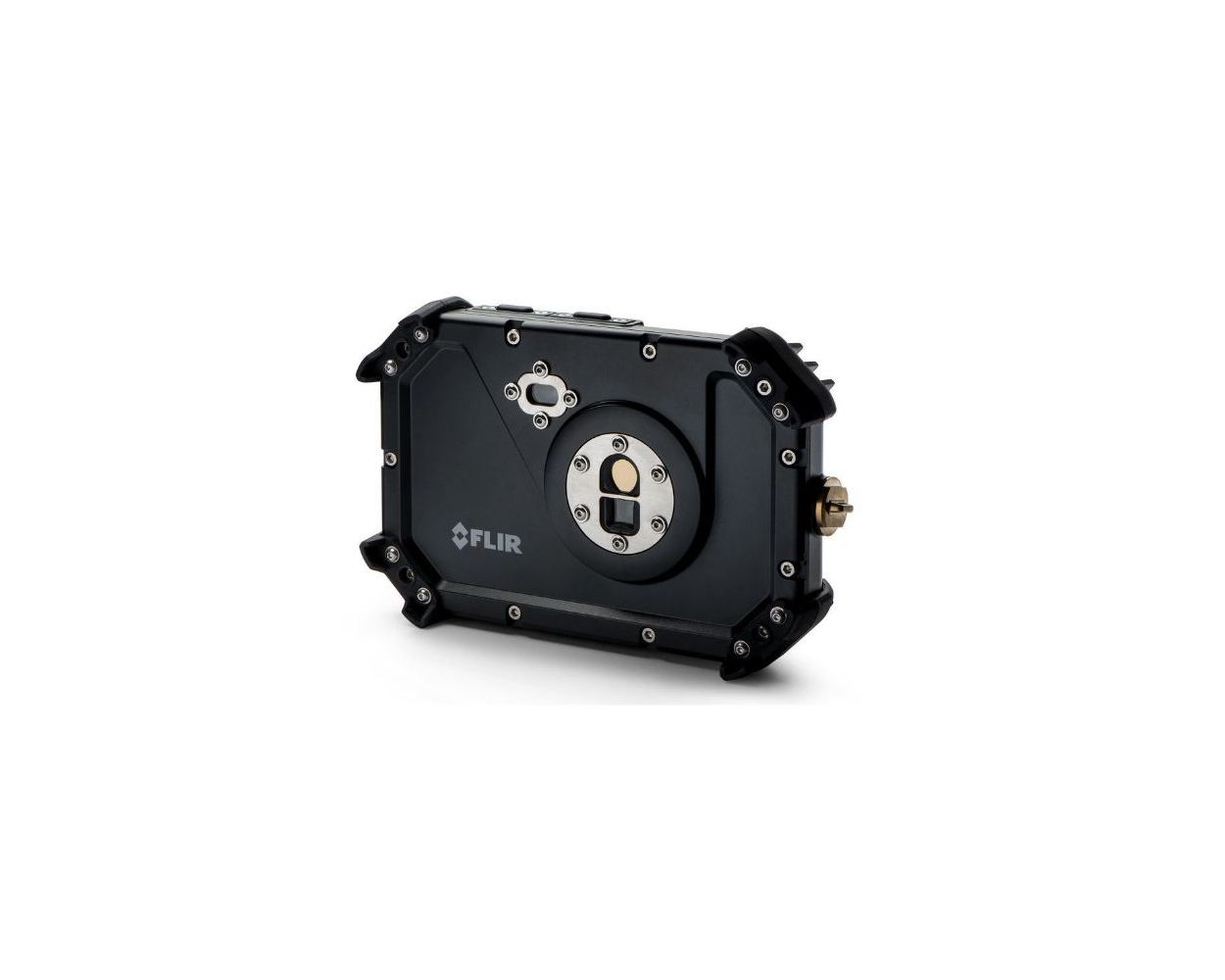

Flir Cx5 Atex infrared camera 160x120 pixels -20°C to 400°C - ATEX Zone 2

€2,045.00
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
SKU
423265609

Hs code: 9025190090

LvO/CoO: Estland



The FLIR CX5 ATEX Infrared Camera 160x120 represents the pinnacle of advanced
thermography, specifically engineered to excel in explosive environments. With its
high-grade ATEX certification, this camera offers a unique synergy of safety and
precision, allowing professionals to work in potentially hazardous zones with the
assurance of reliability and compliance.


The 160x120 pixel thermal resolution of the FLIR CX5 ensures detailed and highly
accurate imagery, enabling users to obtain crucial information in real-time. This
resolution, combined with the advanced ATEX classification, makes the camera
ideally suited for situations where the highest standards for safety and thermographic
quality are essential.


The compact, robust housing of the FLIR CX5 ensures its resilience in the most
demanding industrial environments. The intuitive user interface, coupled with
advanced features such as instant reporting and wireless connectivity, positions the
FLIR CX5 ATEX at the forefront of innovation in the field of thermography.


This camera not only delivers unparalleled performance in capturing thermal images
but also enhances the efficiency and safety of inspections in environments where an
explosive atmosphere may be present. In essence, the FLIR CX5 ATEX Infrared
Camera 160x120 embodies the perfect blend of advanced technology and reliable
safety for professionals in the most challenging conditions.



In the box:
Camera Cx5
FLIR Thermal Studio Starter
Wristband
USB cable
Restricted breathing test port
Carrier bag
Printed documentation



ATEX Certification:
II 3 G Ex nR IIC T4 Gc Tamb -20°C to +40°C
II 3 D Ex tc IIIB T135°C Dc Tamb -20°C to +40°C (applicable to Cx5 model only.)



Overview:
IR sensor
160 × 120 (19,200 pixels)

Thermal sensitivity/NETD
<70 mK

Field of view (FOV)
54° × 42°

Minimum focus distance
• Thermal: 0.1 m (3.94 in)
• MSX®: 0.3 m (11.8 in)

Image frequency
8.7 Hz

Focus
Focus free

Spectral range
8–14 µm

Screen size
3.5 in

Visual camera
5 MP

Digital camera focus
Fixed


Image Presentation
Image adjustment
• Automatic level and span
• Manual level and span
• 1-Touch level and span

Image modes
• Infrared image
• Visual image
• MSX (Embossed visual details on thermal image)
• Picture-in-picture (IR area on visual image)

Gallery
Thumbnails and custom folder structure

Color palettes
• Iron
• Gray
• Rainbow
• Arctic
• Lava
• Rainbow HC

Screen rotation
Yes

Touchscreen
Capacitive touch



Measurement & Analysis
Object temperature range
-20 to 400°C (-4 to 752°F)

Accuracy
At ambient temp. 15 to 35°C (59 to 95°F) and object temp.
above 0°C (32°F)
0 to 100°C (32 to 212°F): ±5°C (±9°F)
100 to 400°C (212 to 752°F): ±5%

Measurement functions
• Spot
• Box with max./min.

Measurement correction
• Emissivity; matt/semi-matt/semi-gloss + custom value
• Reflected apparent temperatur
• Atmospheric compensation



Image Storage & Streaming
Storage media
Internal memory and onboard FLIR Ignite cloud connectivity
(with Wi-Fi)

Image storage capacity
>5000 images

Image file format
Standard JPEG, 14-bit measurement data included

Communication & Connectivity
Wi-Fi®
802.11 a/ac/b/g/n (2.4 and 5 GHz)

USB
USB 2.0, Type-C connector

Bluetooth®
PAN

Image upload
Directly upload images to FLIR Ignite cloud library and
services



Additional Information
Dimensions
(L x W x H) 9.3 x 3.9 x 3.7 in (235 x 100 x 95 mm)

Battery type
Rechargeable built-in Lithium ion battery

Battery operating time
4 hours

Charging system
USB-C (1 A)

Charging time
2 hours

External power operation
5 V, USB-C

Operating temperature range
-10°C to 50°C (14°F to 122°F)

Storage temperature range
-40°C to 70°C (-40°F to 158°F)

Encapsulation
Camera housing and lens: IP54 (IEC 60529)

Drop test
Designed for 2 m (6.6 ft)

Weight (including battery)
0.69 kg (1.52 lb)

Size
(L × W × H) 168 mm × 112 mm × 42 mm (6.6 in × 4.4 in × 1.7 in)

Tripod mounting (built-in)
UNC ¼"-20

*Certifications

EN EIC 60079-0: 2018
EN EIC 60079-31: 2014
EN EIC 60079-15: 2019

IEC 60079-15: 2017
IEC 60079-0: 2017
IEC 60079-31: 2013



Downloads

Flir Cx5 Atex datasheet.pdf
Flir Cx5 ATEX certificaat.pdf
