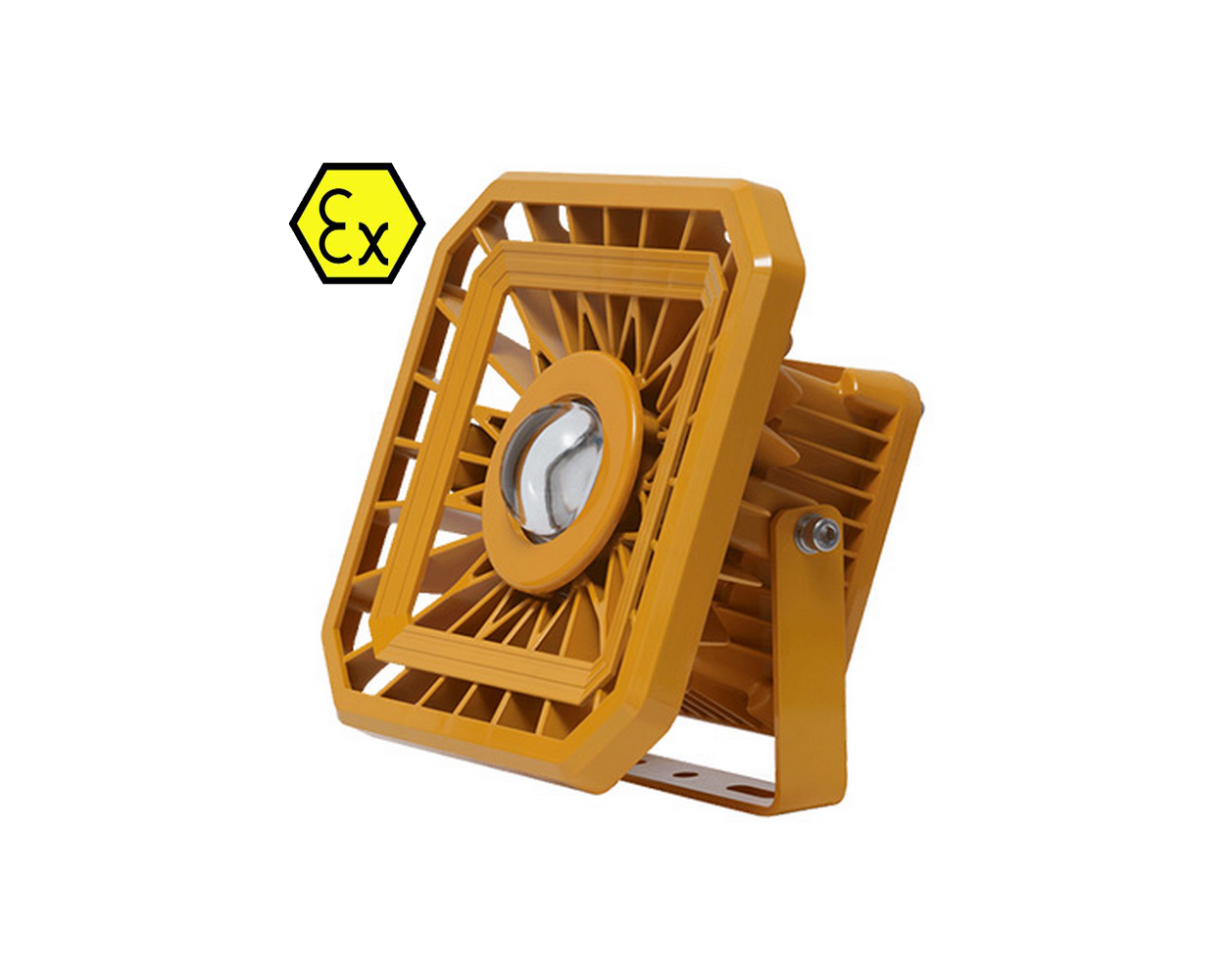

LED Explosion Proof light

Call for Price
*Price may change due to echange rate.
SKU
5465464564656
SAP Item ID
5465464564656

Details:

MODEL:NB EPL 01A 100 (fit for 1/2 NPT Glands)
POWER:50W/60W/80W/100W/125W
Ex mark: Class 1, Division 2, Groups A, B, C and D
(Please contact our sales directly for original US approval)

LED Explosion Proof light



Details:

MODEL:NB EPL 01A 100 (fit for 1/2 NPT Glands)
POWER:50W/60W/80W/100W/125W
Ex mark: Class 1, Division 2, Groups A, B, C and D
(Please contact our sales directly for original US approval)


Application:
Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base,etc. Zone I and Zone Ⅱ Hazardous Locations, Zone 20, Zone 21, Zone 22 and Ⅱ A, Ⅱ B, Ⅱ C explosive gas atmosphere.


Features:
1.Patented design for heat dissipation to ensure life of light source up to 50000 hours.
2.Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.
3.Die casting aluminum housing, with anti-static and anti-corrosion coating,high explosion-proof degree of flameproof type; dust-proof, waterproof; lens made of bulletproof PC which is thermal resistance,corrosion resistance, high light transmission.
4.Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.
5.Beautiful appearance, several types of installation methods available.



Technical Parameters

Item Name

LED explosion proof light

Power Consumption

50W/60W/80W/100W/125W

Input Voltage

220V AC (applied for 95-265V) or 24V DC

Frequency

50Hz (applied for 47-63 Hz)

Beam Angle

60°/90°/120°/140°

Explosion-proof Grade

Class 1, Division 2, Groups A, B, C and D

Corrosion-proof Grade

WF2

IP Grade

IP66

Power Factor

>0.95

Total Harmonic Current

<15%

Lamp Efficiency(%)

90%

Color Temperature(K)

Warm white:2700-4000K; Pure white: 5000-6500K

Junction Temperature(TJ)

<65°C

Color Rendering Index (CRI)

Ra70

Light Effect

85lm/W

Ambient Environment

Temperature-30°C55°C; Humidity: 10-90%RH (25°C)

Storage Temperature

-40°C-60°C

Lifespan

50000Hs

Material

Aluminum Alloy

Installation Height

4~10m (flood light) / 10~30m (project light)

Dimension(mm)

300×300×227

Net Weight

6.5Kg


Downloads

 EPL03 light comm-co.pdf



*bij order waarde beneden de 450 euro 25 euro klein order toeslag!
Prices as shown on this store are indicational and subject to 21% tax,
currency changes and shipping costs. For an accurate and special price please call or e-mail our support.
