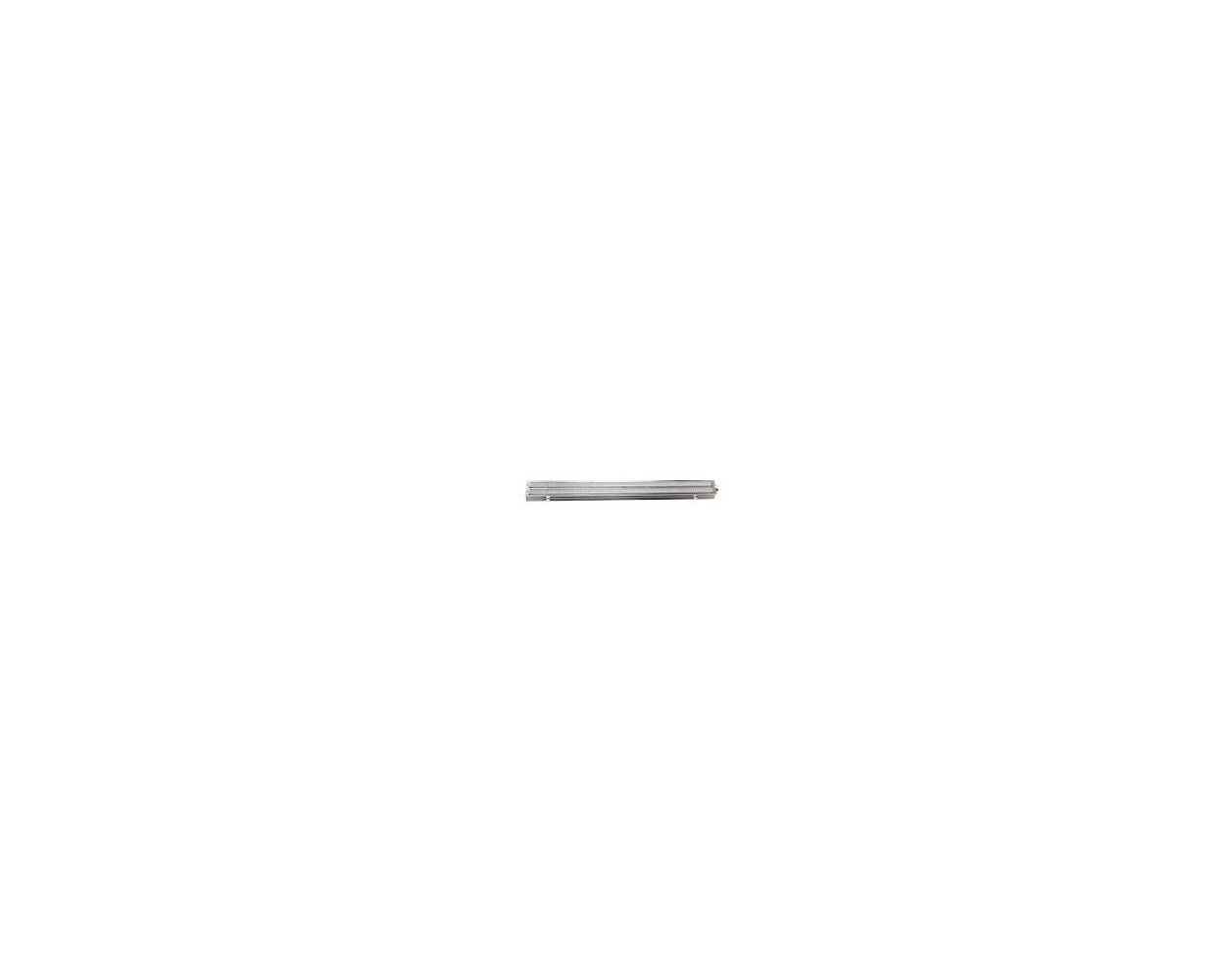

Protecta III PRRE/02L/LE
*Price may change due to echange rate.
The Protecta III LED Geartray is a unique solution to upgrade
and utilise the very latest LED technology in existing Protecta III
fluorescents. Complete with LED strips and electronic driver, the
geartray can be easily retro-fitted into the Protecta III GRP enclosure
in a matter of minutes.
The robust enclosure is not compromised as it remains unchanged
and all existing cabling and glanding can remain in place offering
significant installation cost savings when upgrading to LED.
'Type of Protection* Ex eb mb qb (Increased Safety, Encapsulation, Powder filling) Ex tb (Dust Protected Enclosure), ATEX Classification* Group II Category 2 GD, Area Classification* Zone 1 and 21 areas, Coding Ex eb mb qb IIC T4 Gb Ex tb IIIC T95°C Db IP66/67, Geartray Galvanised Steel, Installation Fix to existing GRP body - refer to IOM, Control Gear Electronic Driver, Colour Temperature (CCT) 6000K (Cool Daylight), Colour Rendering Index (Ra) >80, Maintenance Components accessible on geartray, System Life 120,000hrs @ 25°C, Ingress Protection* IP66/67 to EN 60529, Surge Protection 4kV, Electrical Supply 220-254V AC, 50/60Hz, Lumen output 2178 lm, 32W power comsumption.
Standard Specification
Protecta Ex e LED Linear Fluorescent Replacement
-
Type of Protection
- Ex eb mb qb (Increased Safety, Encapsulation, Powder filling)
- Ex tb (Dust Protected Enclosure)
-
ATEX Classification
- Group II Category 2 GD
-
Area Classification
- Zone 1 and 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14
-
Certificate
- EU Type Examination Certificate: CML 23ATEX1068
- IECEx Certificate of Conformity: IECEx CML 23.0027
- UKEx Certificate of Conformity: CML 23UKEX1069
-
Coding
- Ex eb mb qb IIC T4 Gb
- Ex tb IIIC T95°C Db IP66/67
-
Geartray
- Galvanised Steel
-
Installation
- Fix to existing GRP body - refer to IOM (Installation, Operation, and Maintenance)
-
Control Gear
- Electronic Driver
-
Colour Temperature (CCT)
- 6000K (Cool Daylight)
-
Colour Rendering Index (Ra)
80
-
Maintenance
- Components accessible on geartray
-
System Life
- 120,000hrs @ 25°C [excluding battery]
-
Battery
- Internal Ni-Cd (6V) [Emergency version only]
-
Emergency Duration
- 90 mins (30% output)
-
Ingress Protection
- IP66/67 to EN 60529
-
Surge Protection
- 4kV
-
Electrical Supply
- 220-254V AC, 50/60Hz
Downloads
ProtectaIII PRRE02LLE Datasheet.pdf
