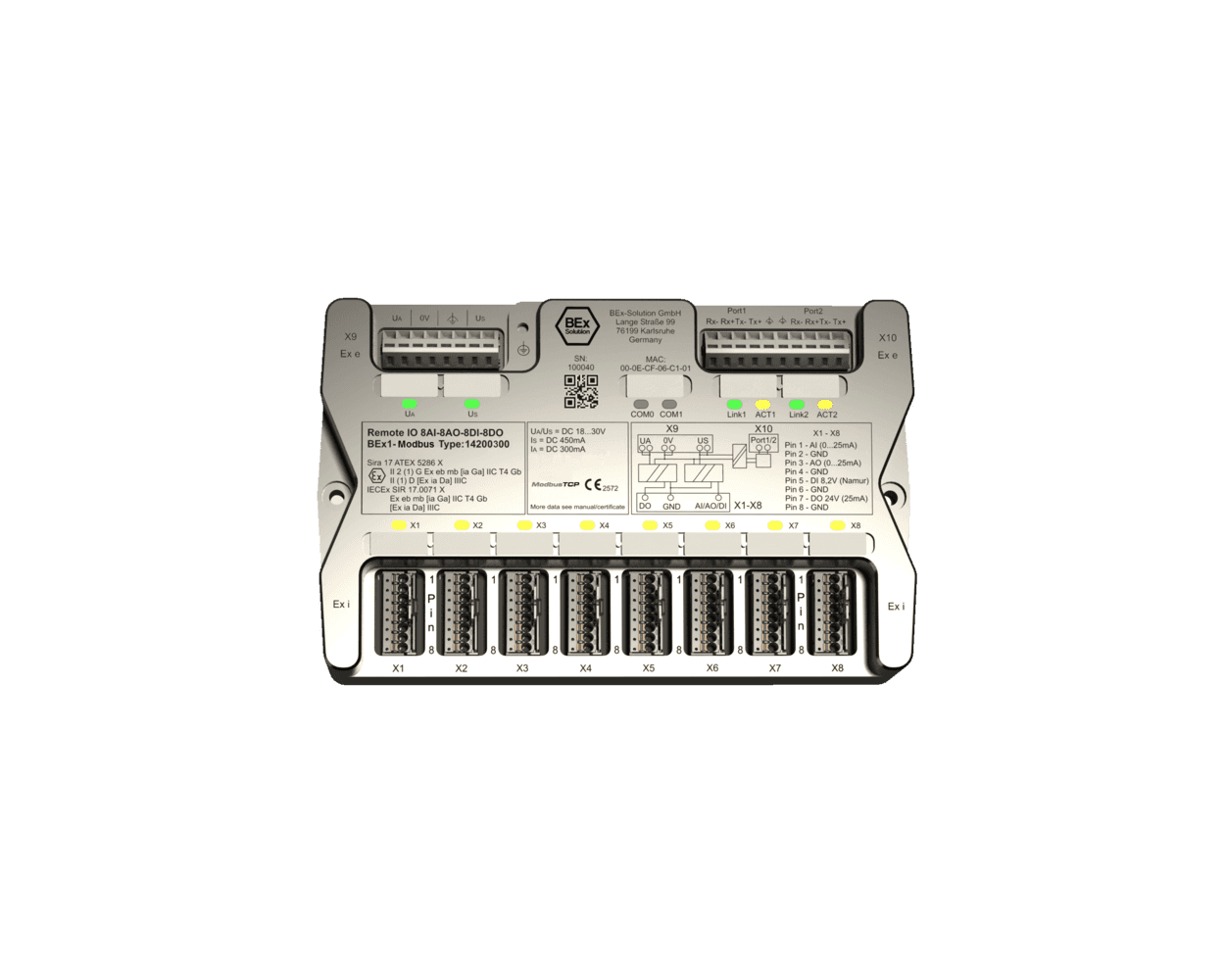

BEX1 MODBUS TCP/IP Remote IO system Zone 1/21, 32 IS IO channels
Call for Price
*Price may change due to echange rate.
*Price may change due to echange rate.
SKU
8600102
SAP Item ID
8600102
Worldwide first decentralized and compact Remote IO system with Modbus TCP/IP for the hazardous area Zone 1/21.
BEx1 includes busnode, isolation amplifier and 32 intrinsically safe IO channels with four different functions on smallest space.
The module can be installed in Zone 1/21 with a certified Ex e enclosure and connects sensors and actuators from Zone 0/20.
BEX1 MODBUS TCP/IP Remote IO system Zone 1/21, 32 IS IO channels
Remote IO system Zone
Feature
▪ Fully potted → extreme robust
▪ 32 channels for sensors and actuators
• 16 digital (8x Input and 8x Output)
• 16 analog (8x Input and 8x Output)
▪ None configuration on module required
▪ Separate power supply for sensor and actuator
▪ Comprehensive diagnostics for each channel
▪ Galvanic separation between channel and system
▪ Easy rail mounting or via mounting holes
▪ Made for Namur Sensors
Explosion protection
Sira 17ATEX5286X
II 2 (1) G Ex eb mb [ia Ga] IIC T4 Gb
II (1) D [Ex ia Da] IIIC
IECEx SIR 17.0071X
Ex eb mb [ia Ga] IIC T4 Gb
[Ex ia Da] IIIC
Power supply
Operating voltage UA/ US DC 18 ... 30V
Current module and sensor supply IS DC 450 mA
Current actuator supply IA DC 300 mA
Power dissipation max. 15W
Reverse polarity protection Yes
Ambient conditions
Permitted range of the service temperature after installation
inside the additional enclosure -40°C ... + 70°C
inside the additional enclosure -40°C ... + 70°C
Storage temperature -40°C ... + 80°C
Enclosure type (EN 60529) IP 20
Fieldbus data
Transfer protocol Modbus TCP/IP
Transfer rate 10/100 Mbps
Addressing DHCP or fix
Delay time for signal change <10ms
IO Function
32 intrinsically safe IO channels with four different function
8x Analog Input 4 ... 20mA (0 ... 25mA)
8x Analog Output 4 ... 20mA (0 ... 25mA)
8x digital Input 8.2V Namur
8x Digital Output 24V (Imax = 25mA)
Mechanical data
Dimensions (LxWxH) 214 x 132 x 65 mm
Mounting position any position
Weight approx. 2500 g
Housing material Aluminum (electroplated)
