DESCRIPTION

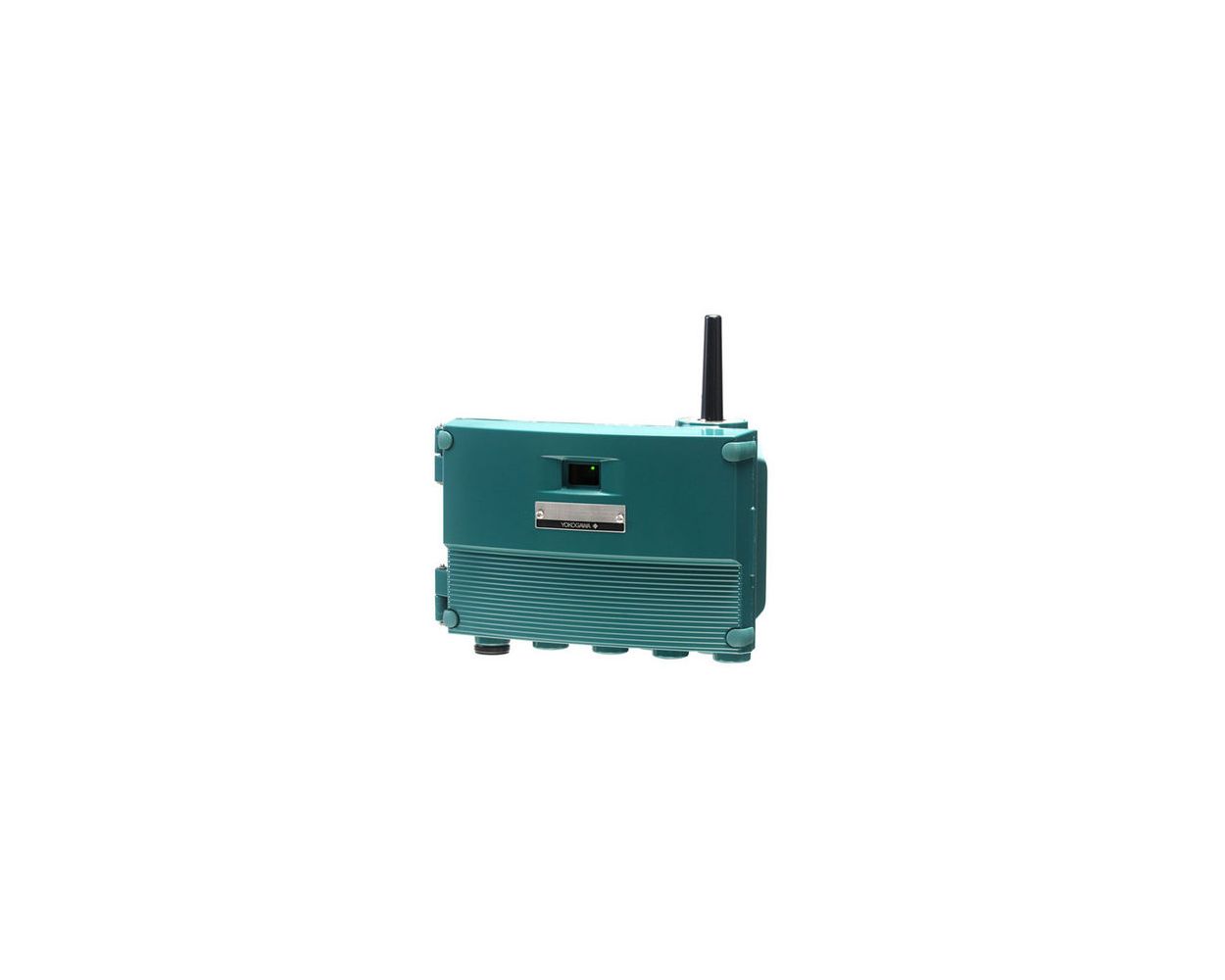

YTMX580 can accept inputs from up to 8 points of measurement such as thermocouples (8 types: K, E, J, etc.) or RTD signals (3 types: Pt100, etc.), converting the corresponding measurement input values to a wireless signal. It can also accept DC voltage, resistance, and 4 to 20 mA DC signal input.1

Easy Setup: Field Wireless

Cut back on troublesome wiring, reducing setup costs.

Traditional wired connections can easily be switched to a wireless solution.

ISA100.11a International Wireless Communication Standard2

Advanced encryption maintains communication security.

Multi-vendor communication supports transmitters from a variety of manufacturers.

Reliable, Fast, 8-ch Multipoint Measurements

8 ch universal input: Perfect for multipoint measurement applications.

High performance measurements with intervals as fast as 1 sec (3 ch), or 2 sec (8 ch).

Superb environmental tolerance:

Operating temperature of -40 to 85°C

(-40 to 185°F)3;

Protection level of IP66/IP67 & NEMA 4X.

Explosion protection

FM, CSA: Intrinsically safe Approval, non-incendive (Class I) Approval

ATEX, IECEx: Intrinsically safe Approval

TIIS: Intrinsically safe Approval

Easy Battery Maintenance

Typical battery life is 6 years (measuring at 60 seconds intervals).

Battery packs can be swapped even in hazardous areas.

Supporting Plant Wide Field Wireless

Full Redundancy(Duplicate, Duocast) 4hops

Remote Antenna + Extension cable
