ATEX Infrared Intelligent Window
*Price may change due to echange rate.

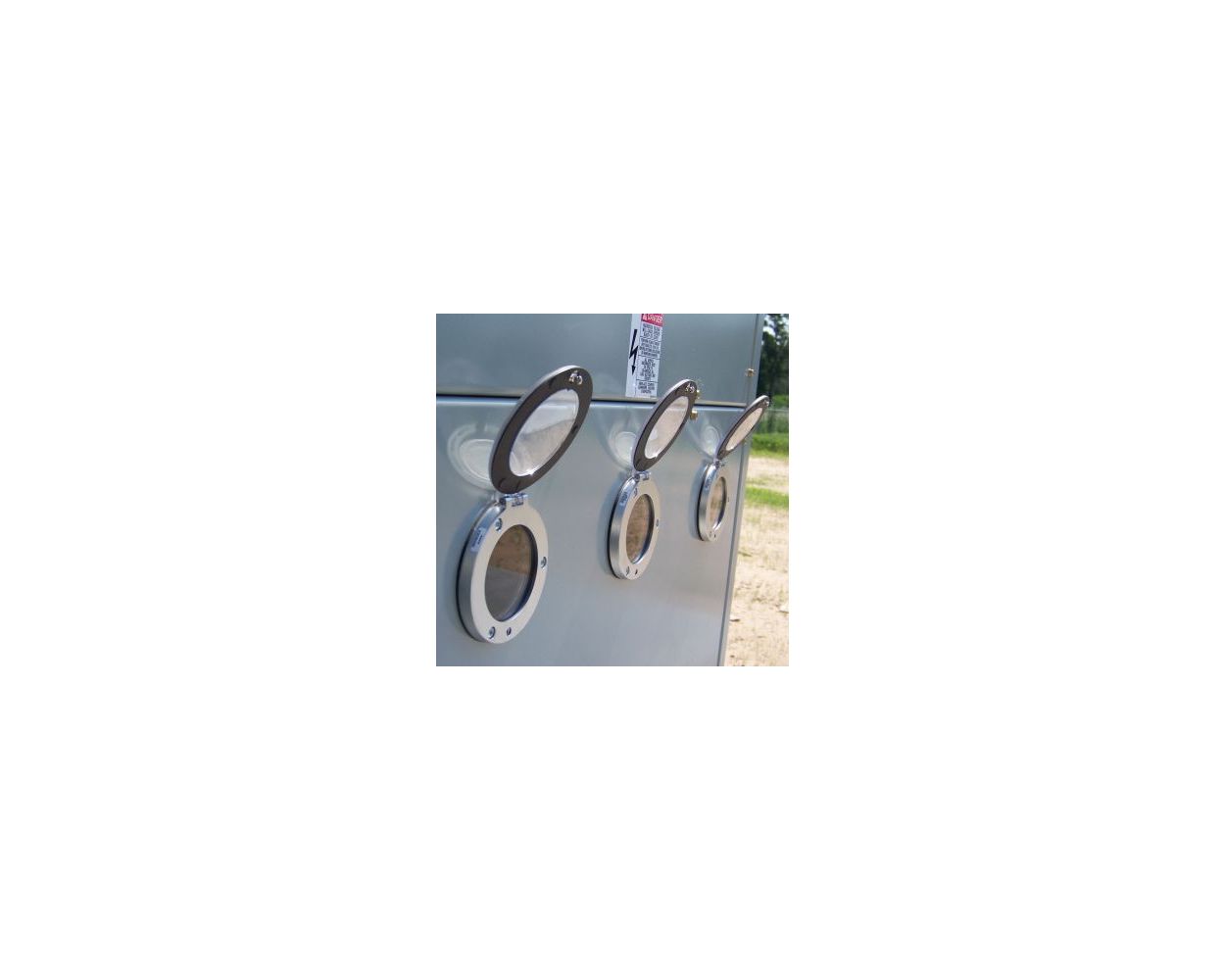

The ATEX Infrared Intelligent Window takes electrical inspection and maintenance to a new level of safety, efficiency and accuracy. The ATEX IR Window has broadband crystal which allows for Thermal, UV, Fusion & Visual inspections. The ATEX Infrared Intelligent Window has a full grounded design that eliminates the risk of electric shock
ATEX Infrared Intelligent Window
Fully Certified and tested Intelligent IR Windows
The ATEX Infrared Intelligent Window takes electrical inspection and maintenance to a new level of safety, efficiency and accuracy. The ATEX IR Window has broadband crystal which allows for Thermal, UV, Fusion & Visual inspections. The ATEX Infrared Intelligent Window has a full grounded design that eliminates the risk of electric shock
The ATEX Infrared Intelligent Window has a quick release spring loaded cover with 1/4 turn access. The ATEX IR Window has an embedded RFID tag and barcode enabling individual window identification and downloadable transmission correction data.
Optic / Crystal Data
| Crystal Insert Diameter: | 100 mm (3.94in) |
| Viewing Aperture Diameter: | 93 mm (3.66in) |
| Viewing Aperture Area: | 6794 mm2 (10.53in2) |
| Thickness: | 4 mm (0.16in) |
| Hydrogard Coating: | Yes |
| Shortwave IR Capable: | Yes |
| Midwave IR Capable: | Yes |
| Longwave IR Capable: | Yes |
| Ultraviolet Capable: | Yes |
| Visual Capable: | Yes |
| Fusion Capable: | Yes |
Certification
| Underwriters laboratories (UL) recognised: | Yes |
| UL50: | Type 3/12 |
| UL746C, UL94, UL50V, UL1558: | Yes |
| IP65 | Yes |
General Specifications
| Maximum Temperature: | Gaskets: 250˚C (482˚F) |
| Body: 659˚C (1218˚F) | |
| Optic: 1400˚C (2552˚F) | |
| Gaskets: | Low smoke and fume (LSF) compliant silicone |
| NEMA Rating: | Type 3/12 (UL Third Party Certified) |
| Vibration Rating: | IEC60068-2-6 |
| Humidity Rating: | IEC60068-2-3 |
| Warranty: | Lifetime replacement against manufacturing defects |
Downloads
ir-windows-datasheet-17-3170-ins Comm-co.pdf
