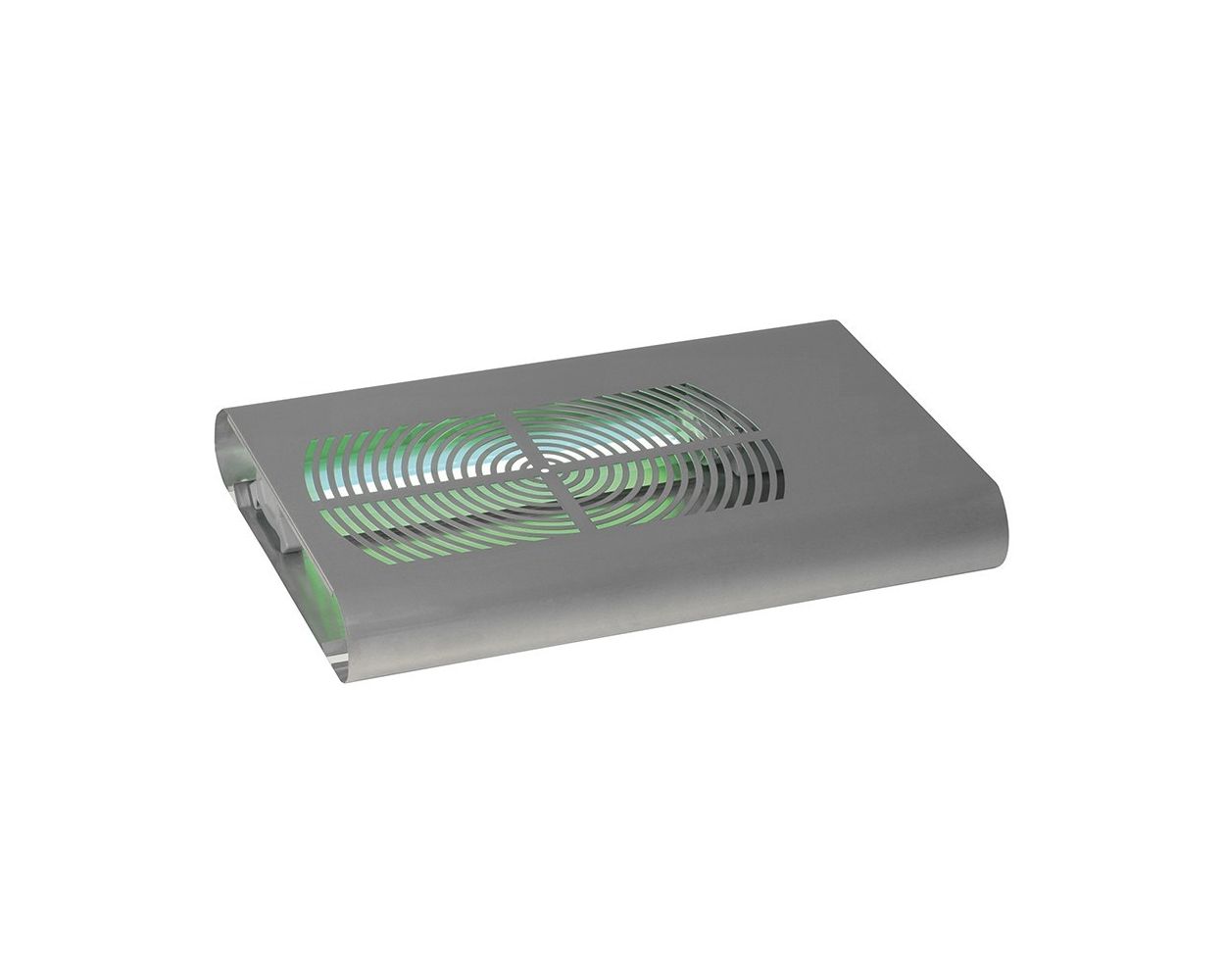

i-trap 150EX

With its robust design, the i-trap 150EX is recommended for use in areas with a potential danger of a gas explosion or a dust explosion. The unit can be wall mounted. The i-trap 150EX has a specially designed front grid which optimizes the attraction potential. This grid is made of stainless steel. Once the insects enter the I-trap, they are effectively controlled by a centrally placed glue board.

Easy to service, robust, yet elegant and effective; the i-trap 150EX offers it all.

* Functional and industrial design.
* Durable quality material, unit standard executed in a hose proof (IP68) execution.
* Effective coverage up to 150 m2 of area against flying insects.

10 Reasons to use:

* Functional and industrial design.
* Two powerful UV-A lamps and an effective glue board ensure fast and discreet attraction of all flying insects. Exclusive to ALCOCHEM the Philips Longlife UV-A lamp offers 2 years of effective use. The Philips Longlife lamp is specifically designed to match the fly’s vision spectrum with the lamp’s output, for optimum attracting power.
* 30% improved performance over conventional units due to its unique attraction grid, which reflects the light onto the landing spot thereby stimulating the landing behaviour of flying insects.
* Durable quality material, unit standard executed in a hose proof (IP68) execution.
* Effective coverage up to 150 m2 of area against flying insects.
* Fast and simple maintenance and service of the unit.
* Top quality acc ISO 9001 production, 2 year “return to base” guarantee.
* Wall mounting unit, in full stainless steel casing.
* Certified for use in gas & dust explosion proof ATEX 95 environments.
* High frequency ballast technology offers low operational costs and makes the use of starters redundant. The electronic ballast also offers a high frequency light pulse which means the insect cannot distinguish the lamp from natural UV-A light so providing greater attraction.

UV-A lamps [Fluorescent]

In close partnership with Philips, Alcochem Hygiene has developed a range of powerful UV-A lamps, used for insect trap applications: the Long-life UV-A lamps.

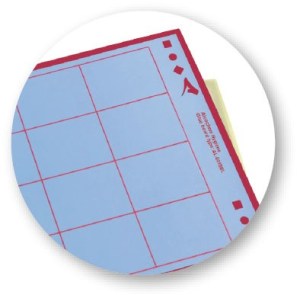

Glueboards
Insects are caught on a glue layer, which preserves them over time. The caught insects can be counted and insect species can be analysed, which offers clear advantages in an IPM approach.

Technical Specifications:

Area coverage
100 – 150m² effective coverage

Light source
2 x 18 Watt shatterproof Philips Longlife UV-A lamps

Type of UV lamps
UV-A Lamp RoHS certified

Electrical supply
120-254 V ~ 50-60 Hz

Catch specifications
By means of effective glue board

Power consumption
45 Watt

Weight
8 Kg

Material
Metal housing

Degree of protection
IP 68 (hose proof)

Guarantee
2 year return to base

Int. building norm
acc. IEC 60.335-259 int. standard for insect exterminators

Lamp life time
17,500 hrs (*)

Dimensions (LxHxD)
940 x 600 x 140 mm

CE-approval
Yes

Mounting position
Wall mounted

Cable & plug
Not included in scope of supply

Packaging
Strong cardboard box included

Manual
Enclosed with the unit in English

Complies to norm
II 2GD EEx em II T4 (Zone 1 & 2 for gas, zone 21 & 22 for dust)

(*) After 17,500 hours of use, the Longlife lamp still offers 75% of its initial UV-A output value
