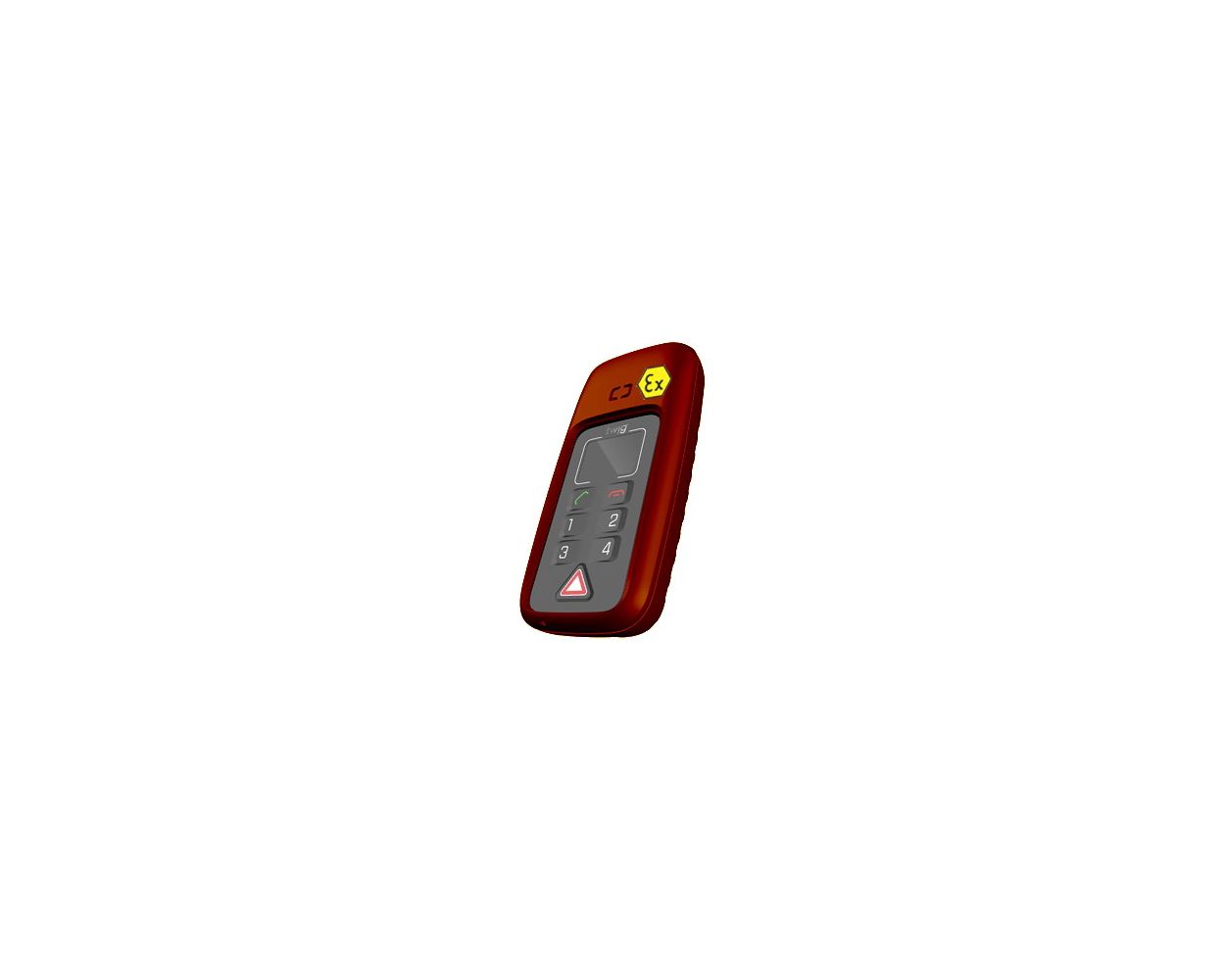

Description TWIG Protector ATEX Surveillance Device Incl. Man-Down

Built-in high performance GPS and telematics features allow location based services to be built to meet the requirements of the most demanding solutions.

Alarm button activates a predefined emergency protocol that opearates according to DIN0825 sending latest know position via SMS while also allowing to make voice call.

Lone Worker Protection
Built-in, Man-Down-Alert functionality includes a user-operated alarm button and automated emergency
messaging. In the case of a fall or non-movement, a call to predefined numbers alerts emergency rescue
services, with accelerometer functionality within the device, automatically transmitting its location.

Personal Protection
The Protector can be used to ensure personal safety and security. A panic
button can be pressed in case of emergency and information on position, direction and speed of
movement is sent immediately to a predefined number, establishing communication.

Long-term Care
New levels of telecare solutions provided by TWIG, enable those with long-term care needs to enjoy
independent and active lives. When the Protector alarm button on the device or wrist alarm is
activated, a voice call to the care center is made enabling the emergency services to track and
trace its owner.

Personal Surveillance
The Protector offers peace of mind
by providing real time information as
to the location and status of loved
ones. TWIG Internet Services
enable friends and family to track
and locate those they care for
anywhere around the world.
Corporate back end systems can be
used to connect via SMS or TCP/IP
to Twig Protector.

Specifications TWIG Protector ATEX Surveillance Device Incl. Man-Down


Compatible to all TWIG products
The shock and water resistant Protector can communicate with all TWIG devices and support systems using MPTP (Mobile Phone Telematics Protocol) both SMS and GPRS.

Mechanics
•Shock proof case
•Water proof (IP67)
Other features
•Dedicated ergonomic SOS button
•Power On/Off
•Preprogrammed Quick dialling
•Answer / End call
•Display for device status and operation
Brief technical specification
•Dimensions: 18mm x 45mm x 94mm
•Weight: approx. 80g inc. Battery
•Tri-band GSM (900/1800/1900) unit
•Built-in GSM and GPS antennas
•Operating temperature -20°C..+50°C**

Battery
•Standard battery Li-ion 1300 mAh
•Stand-by time Up to 260hrs (no GPS)
•GPS op. time Up to:*
•120hrs (1 position/hr)
•24hrs (1 position/s)
•Charging time <2hrs for 100%

GPS
High performance receiver
Accuracy ~5m, 95% of time (Open sky)
Acquisition Rate (Open sky, stationary)
•Cold Start 45sec (typical)
•Warm Start 38sec (typical)
•Hot Start 2-8sec (typical)
Advanced power saving options

ATEX- approved:
•II 2 G EEx ib IIB T4
•Zone 1 Category II Gas intrisically safe
temperature class 4

Sales package consists of:
•Protector GPS/GSM unit
•1300 mAh battery
•Charger of choice (mains/car)
•Configuration SW and user manual CD
Options
•Man Down Alert
•Non GPS version

Accessories
•External Wireless alarm button
•Home Docking unit
•Car charger
•Belt clip*
•Holder

For more information about ATEX-Certificate: EC-website
