FLIR A310Ex ATEX Industrial Automation Thermal Camera w/ Lens Choice

Call for Price
*Price may change due to echange rate.
SKU
42326288

This product is EOL (End Of Life).

This product is EOL (End Of Life).





Description

Note: this product is available with your selection of thermal lens. Choose an option using the dropdown box above.

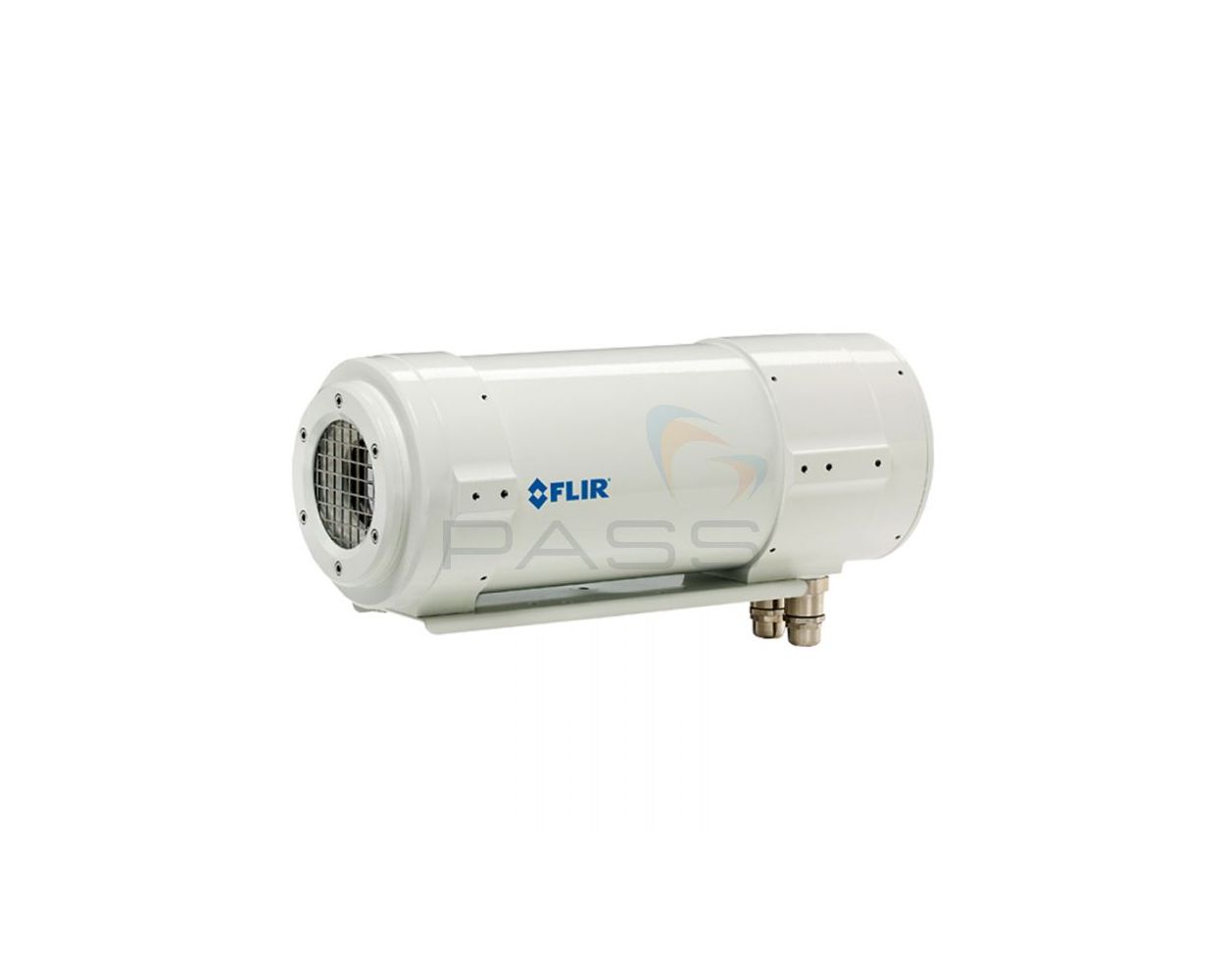

The FLIR A310Ex is a fixed-mount, constant monitoring thermal camera for use within potentially hazardous (explosive) environments.

ATEX certified, this camera produces high quality images and thermal video which can be relayed directly to a control point and viewed back. Integrated alarms and multiple measurement functions are also included for full control over your thermal images and to allow you to react quickly to incident.

The A310Ex can be used in a wide variety of applications; in the example below, it's used to detect thermal hot spots forming in a pile of wood chips which - if left untreated - could cause a fire.

No matter what application you're working in, the FLIR A310ex is suitable for the job.

About the FLIR A310Ex's ATEX Certification

This thermal camera has the following ATEX verification certificate:

ZELM 12 ATEX 0485 X - can be installed in classification zones 1, 2, 21 and 22.

This certification applies to the whole system, including the enclosure and all internal components (thermal camera, heater and integrated controller).

FLIR A310ex Thermal Camera Key Features

  • Constantly monitor an area to detect heat issues such as fires and machinery failures
  • ATEX compliant for use in hazardous explosive zones
  • Thermal imaging camera, controller and enclosure are all ATEX certified, ensuring explosion transmission can never occur
  • Suitable for classification zones 1, 2, 21 and 22
  • IP67 rated - suitable for use within dusty environments
  • Fixed mount - install anywhere and point at a specific area
  • Integrated controller with several digital I/O channels and remote control via Modbus TCP/IP or integrated web interfaces
  • Two fiber optic and two ethernet controller parts for flexible network integration in star or ring topologies
  • Integrated heater - controllable via remote control and ensures fogging/freezing of the window doesn't occur
  • Thermal resolution of 320 x 240 pixels produces excellent quality images
  • High thermal sensitivity to pinpoint small temperature differences (50mK)
  • Automatically determines what lens is equipped to the camera
  • Automatic or manual focusing with built-in motor
  • 1-8x continuous digital zoom with interpolating zooming on images
  • Temperature measurement range from -20 to +120°C (-4 to 248°F) and 0 to +350°C (+32 to +662°F)
  • Temperature measurement accuracy of ±2°C
  • Integrated spotmeter function
  • Area function with 10 boxes showing MAX/MIN/AVERAGE temperature plus position
  • Isotherm function with above/below/interval
  • Measurement options - send via ftp or email
  • Difference temperature function - calculates the delta temperature between measurement functions or reference temperature
  • Automatic atmospheric transmission correction
  • Automatic optic transmission correction
  • Variable emissivity from 0.01 to 1.0 to cater for different surface types
  • 6 automatic alarms on any selected measurement function
  • Several alarm output options - digital out, log, store image, file sending (ftp), email (SMTP) and notification
  • Multiple selectable colour palettes (Black/white, black/white inverted, Iron and Rain)
  • Built-in memory for image storage

What's Included?

  • FLIR A310Ex Thermal Camera
  • Your Choice of Lens
  • Cardboard Box
  • Printed Documentation
  • User Documentatin CD-ROM
  • Utility CD-ROM

FLIR A310Ex Technical Specifications

General Specifications
Ambient Operating Temperature Range -20 to +40°C (-4 to 104°F)
Protection Class IP67
Weight 6.7kg (without camera and lens)
Empty Volume 5.06 I
External Dimensions (without Sun Shield) D = 170mm, L = 408mm
Housing Material / Surface Nickel-plated aluminium / Powder coated
Protection Window Germanium, double-sided AR coated, externally with additional hard-carbon layer
Maximum Power of Additional Heater 16W
Operating Voltage 24V DC
Maximum Electrical Connection Power 60W
Power Cable/Power Cable Configuration Helukabel 37264/Pigtail
Length of Power Cable 4m (13ft)
Integrated Controller 4-port switch with 2 x fiber-optic LC 100 Base-Fx or 2 x RJ45 (10/100 up-links)
Ring topology support for reduced cabling effort
2 x internal temperature sensors
Air humidity and pressure sensor
Digital output module controllable via Modbus TCP/IP or web interface to enable turning heater on/off
Ethernet Medium Multi-mode breakout fibe AT-V (ZN) Y (ZN) Y 4G50/125 OM2
Length of Ethernet Cable 4m (13ft)
Ethernet Configuration Pigtail with FC Connector
Explosion Protection
EX Zone Suitability 1, 2, 21 and 22
Ignition Protection Category Flame-proof enclosure "d"
Maximum Surface Temperature (According to Temperature Class T6) Maximum 85°C
ATEX Certification (Version -AXC) Ex-Protection Gas: II 2G Ex d IIC T6 Gb
Ex-Protection Dust: II 2D Ex tb IIC T85° Db
Verification Certificate ZELM 12 ATEX 0485 X
Imaging and Optical Data
IR Resolution 320 x 240 pixels
Thermal Sensitivity/NETD <0.05°C@+30°C (+86°F) / 50mK
Minimum Focus Distance 0.4m (1.31ft)
Spatial Resolution (IFOV) 1.36mrad with 25° lens or 2.59mrad with 45° lens
Lens Identification Automatic
F-Number 1.3
Image Frequency 30Hz
Focus Automatic or manual (built-in motor)
Zoom 1-8x continuous, digital, interpolating zooming on images
Detector Data
Detector Type Focal plane array (FPA) uncooled microbolometer
Spectral Range 7.5 to 13μm
Detector Pitch 25μm
Detector Time Constant Typical 12ms
Measurement
Object Temperature Range -20 to +120°C (-4 to +248°F)
0 to +350°C (+32 to +662°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading
Measurement Analysis
Spotmeter 10
Area 10 boxes with max/min/average temperature, plus position
Isotherm 1 with above/below/interval
Measurement Option Measurement mask filter schedule response: file sending (FTP), email (SMTP)
Difference Temperature Delta temperature between measurement functions or reference temperature
Reference Temperature Manually set or captured from any measurement function
Atmospheric Transmission Correction Automatic, based on inputs for distance, atmospheric temperature and relative humidity
Optics Transmission Correction Automatic, based on signals from internal sensors
Emissivity Correction Variable from 0.01 to 1.0
Reflected Apparent Temperature Correction Automatic, based on input of reflected temperature
External Optics/Windows Correction Automatic, based on input of optics/window transmission and temperature
Measurement Corrections Global and invidiual object parameters
Alarm
Alarm Functions 6 automatic alarms on any selected measurement function, Digital In, Camera temperature, timer
Alarm Output Digital Out, log, store image, file sending (ftp), email (SMTP), notification
Setup
Colour Palettes Black/white, black/white inverted, Iron and Rain
Setup Commands Date/time, temperature °C or °F
Image Storage
Storage Media Built-in memory
File Formats Standard JPEG, 16-bit measurement data included
Ethernet
Ethernet Control, result and image
Ethernet Type/Standard 100Mbps/IEE 802.3
Configuration Pigtail with FC connector (fiber)
Communication TCP/IP socket-based FLIR proprietary
Video Streaming MPEG-4, ISO/IEC 14496-1
MPEG-4 ASP@L5
Image Streaming 16 bit
320 x 240 pixels @ 7.8Hz Radiometric
Protocols Ethernet/Ip, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP
