Smart-Ex 02 for Zone 1 / Division 1 (Without camera) (Special deal) (1 in stock)

€1,000.00
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
SKU
8600008-1

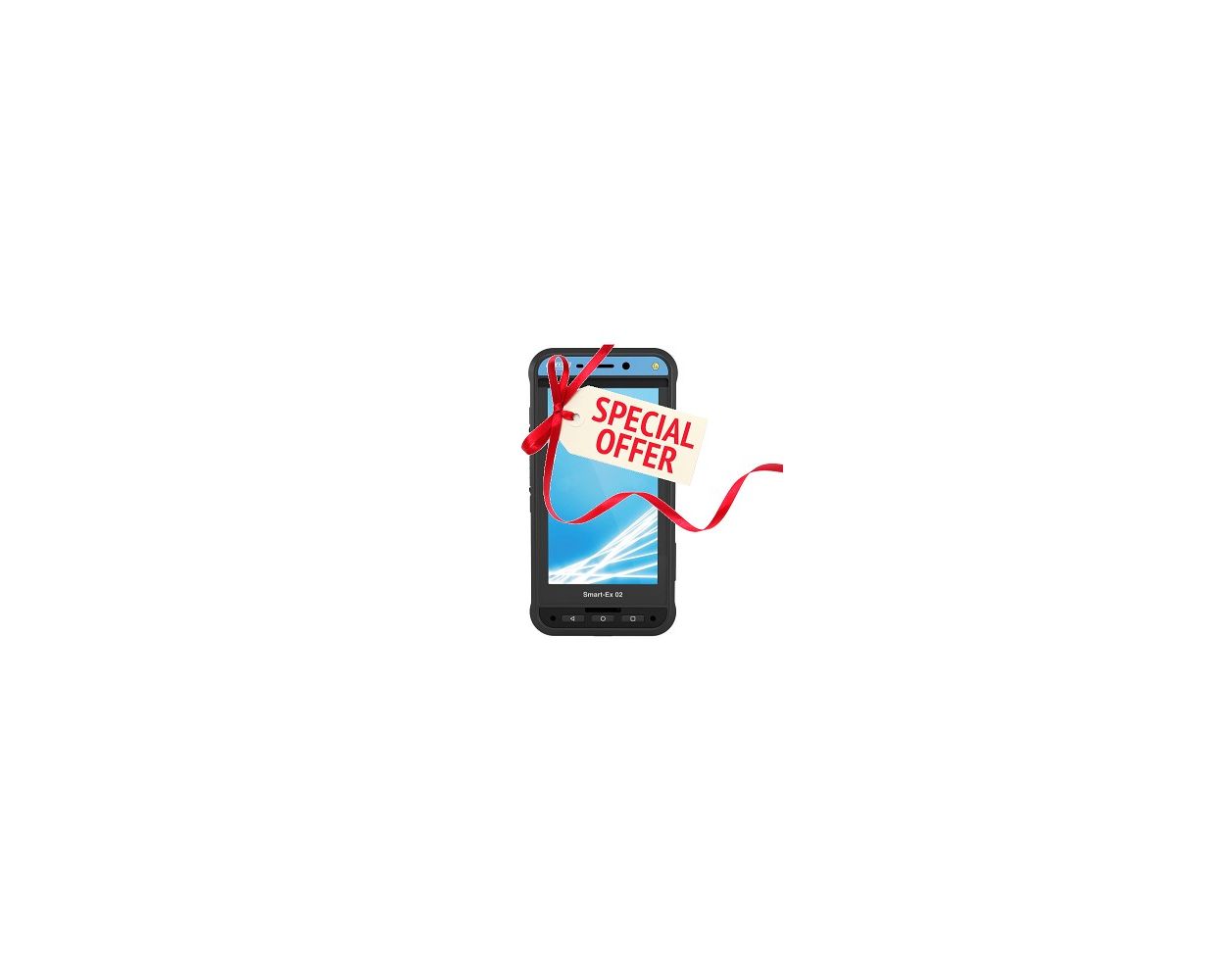

The Smart-Ex® 02 is the world’s first intrinsically safe smartphone for Zone 1/21 and Div. 1 areas that will meet Google‘s sophisticated Android Enterprise Recommended (AER) validation. In addition, it meets all important global hazardous location and regulatory certifications.

Smart-Ex 02 for Zone 1 / Division 1 (Without camera) (Special deal) (1 in stock)



The rugged smartphone has a large, high-resolution display, powerful features, and optimized accessories. Its extended temperature range makes it suitable for even the harshest environments.

Designed to support 21 LTE frequency bands, the Smart-Ex® 02 has no SIM lock and can be connected to different networks worldwide. An Android™ 9 operating system enables the intrinsically safe device to work safely, quickly, and efficiently.

The ergonomic design and intuitive user interface enhance the user experience, and optimized accessories and peripherals ensure total compatibility with current and future ecom products. With the most powerful replaceable battery on market (4400 mAh), longer shifts and 24-hour work coverage are possible.

The Smart-Ex® 02 also sets new standards when it comes to security. The Android Enterprise Recommended certification and regular security updates prevent unauthorized access to confidential personal and company data.

To ensure unlimited, long-term use of the smartphone, ecom offers a three-year service level agreement. Pepperl+Fuchs’ global sales and service network provides excellent customer service around the globe. Support from ecom’s system engineers and development teams is also available when software requirements change.



Features:

* 4G / LTE standard (SIM unlocked)
* Supports 21 LTE bands
* Android™ 9 operating system
* 3 GB RAM, 32 GB ROM
* Up to 128 GB additional memory with microSD
* WiFi Standard 802.11 a/b/g/n/ac/e/k/r/h
* WiFi 2.4 Ghz und 5 Ghz support
* Bluetooth® 4.2 incl. BLE
* GPS / A-GPS / Glonass / Beidou / Galileo / NFC
* 2 cameras: 12 MP camera with autofocus and LED flash + 5 MP camera
* Waterproof magnetic USB 2.0 connection
* Replaceable 4400 mAh battery



Technical Data:

* Android™ 9 OS
* 12.7 cm (5.0 inch) Display with Gorilla® glass
* 12 MP rear / 5.0 MP front camera (optional)
* 3 GB RAM
* LED torch light function
* 4400 mAh battery
* Bluetooth® 4.2 incl. BLE
* IP68

OPERATING SYSTEM Android™ 9.0
CHIPSET Qualcomm Snapdragon 450 platform
BAND Cellular frequency bands EU variant:
4G LTE FDD: B1, B2, B3, B4, B5, B7, B8, B11, B20, B21, B25, B28
4G LTE TDD: B38, B39, B40, B41
3G UMTS: 850 / 900 / 1900 / 2100 MHz
2G GSM: 850 / 900 / 1800 / 1900 MHz
Cellular frequency bands US variant:
4G LTE FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B66, B71
4G LTE TDD: B41
3G UMTS: 850 / 1700 / 1900 / 2100 MHz
2G GSM: 850 / 900 / 1800 / 1900 MHz
WIFI WiFi 2.4 Ghz and 5 Ghz support
WiFi standards 802.11 a/b/g/n/ac/e/k/r/h
MEMORY 3 GB RAM, 32 GB ROM
USER MEMORY SD card up to 128 GB
APPLICATIONS Google Play Store certified
BLUETOOTH
SMS, MMS
(TEXT, IMAGE, AUDIO, VIDEO)
Bluetooth® 4.2 incl. BLE (Bluetooth Low Energy)
Support SMS and MMS)
GPS, NFC GPS / A-GPS / Glonass / Beidou / Galileo / NFC
EMAIL CLIENT EAS, Gmail, POP3, IMAP
POWER Li-Ion 3.7 V / 4400 mAh / 16.28 Wh
BATTERY LIFE Up to 1000 hours Stand by
AMBIENT TEMPERATURE -20 °C … +60 °C (certification pending)
PROTECTION CLASS IP68
SIZE 163 x 82 x 22 mm
WEIGHT approx. 380 g
DEDICATED KEYS PTT / Alarm / Power / Multifunction / Volume / Control / Hardware buttons for Android features
PORTS 3.5 mm jack connection with special ecom mounting solution
Waterproof magnetic USB 2.0 connection
DISPLAY SIZE 12.7 cm (5.0 inch)
DISPLAY TYPE Extreme shock and scratch resistant Gorilla® glass support of glove and wet mode
MICROPHONE Dual mic solution with three selectable background noise suppression options
SPEAKER Loud Speaker with Gore® Protective Vents
CAMERA 12 MP rear with auto focus and LED flash with torchlight function / 5 MP front (optional)
VIDEO STREAMING Support MP4, M4V, 3GP, 3G2, TS, WMV, ASF, AVI, FLV, MKV, WEBM
LED TORCH LIGHT Yes



Ex Certificaten

(Pending)

ATEX (Europe)
II 2G Ex ia op is IIC T4 Ga IP64
II 2D Ex ia op is IIIC T135°C Da
Ambient temperature: -20 °C ≤ Ta ≤ +60 °C

IECEx (International)
Ex ia op is IIC T4 Ga IP64
Ex ia op is IIIC T135°C Da
Ambient temperature: -20 °C ≤ Ta ≤ +60 °C

CSA (Northern America, NEC / CEC)
Class I, II, III, Division 1 Groups A-G, T4
Ambient temperature: -20 °C ≤ Ta ≤ +60 °C



Scope of Delivery

* Smart-Ex® 02
* Li-Ion battery 4400 mAh
* Charger
* USB cable with magnetic connection
* Screwdriver
* Documentation



Downloads

brochure_Smart-Ex_02_EN.pdf

ATEX_certificate_Smart-Ex_02_DZ1_EN.pdf
