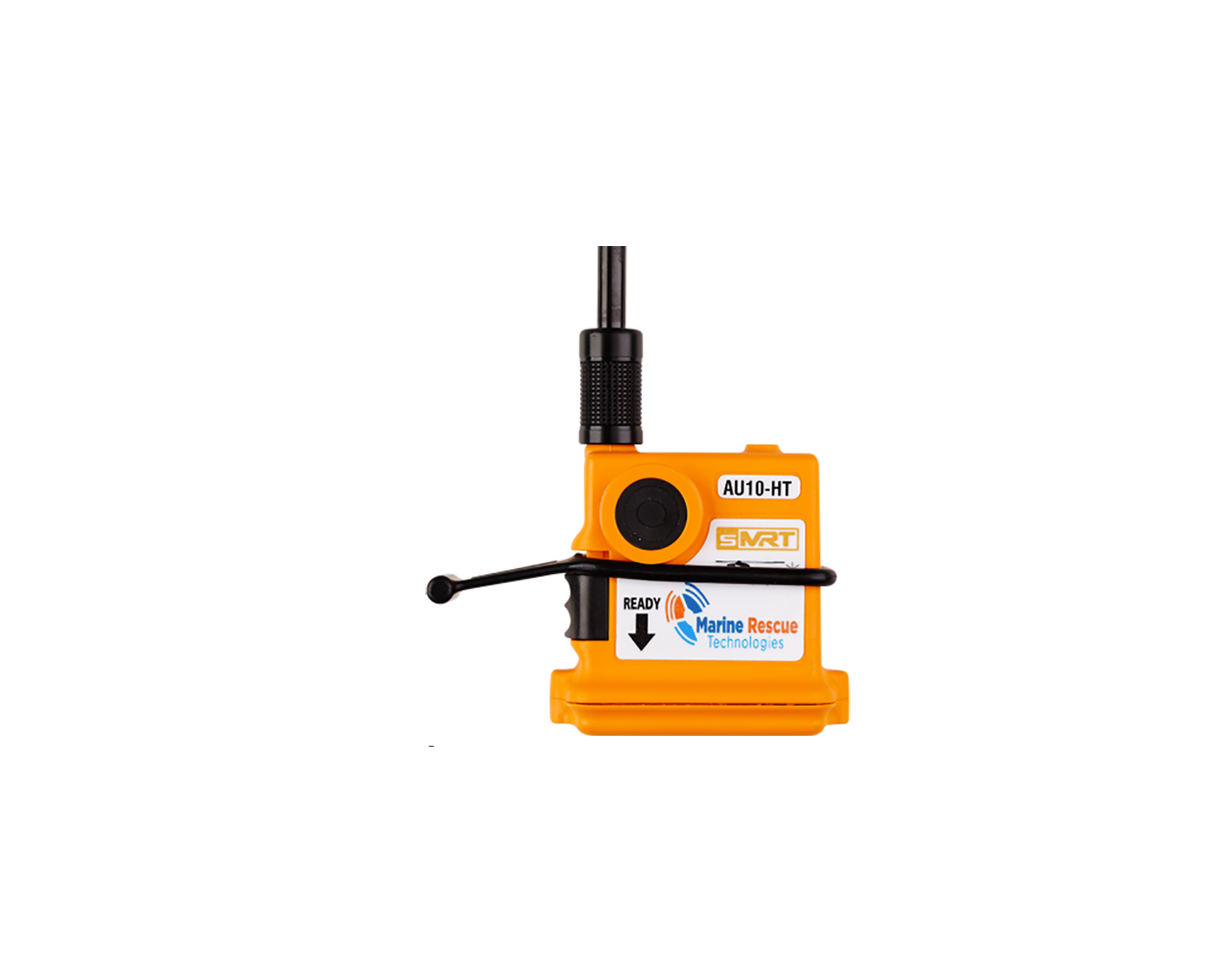

ATEX sMRT AU10

Environmental Resistance:
IP68

Operating Temperature:
-20°C to+55°C

Storage Temperature:
-45°C to+70°C

Operating Humidity:
To 95% non-condensing

Shock:
20G min

Vibration:
EuroCAE ED-14F

Compass Safe Distance:

30cm (for <1° deflection)

Flammability Rating:

ED 14F 26.3.3 Category C:

Battery:
6V Li-MnO2

Buoyancy:
Buoyant (index=9%)

Transportation:
Air cargo UN 3091 not hazardous

Dimensions (Case):
80mm x 95mm x 35mm

Weight:
250g

EMC:
EN 301 489-22 V1.3.1, EN 301 489-1 V1.8.1

Electrical Safety:
EN 60950-1:2006

Marine:
IEC 60945:2002

Radio (121.5MHz):
EN 302 961 V1.2.1, RTCM 11901.1:2012

Radio (AIS):
EN 303 098 V1.2.1, RTCM 11901.1:2012

Air Band Frequencies:
121.500MHz

Distress Modulation:
AM compliant to ITU-R M.690-2 (2012)

Marine-Band Frequencies:
161.975, 162.025 MHz (AIS1, AIS2)

Marine-Band Power:
1W EIRP nominal

VHF Antenna:
Centre-fed dipole, comprising coaxial cable and 1/8 coil whip

GPS Antenna:
Circular-polarised wide-angle bulb

Operating Time:
>12 hours continuous

Standby Battery Life:
>3 years

Permanently Armed:
12 hours operation if armed for 12 months

GPS Position Update:
Minimum of 6 per minute:

GPS Time GPS Time To First Lock:
Typically <1 minute under normal operating conditions

Alert Indication:
Audible and visible

Activation:
Manual plus automatic water activation

Self ID:
ITU-R M.585 compliant factory programmed freeform Maritime Identity with 972 prefix
