ATEX Samsung Galaxy Tab S10 FE Zone 2/22 - Armadex Ex UniCase Set
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
Complete set of the certified Armadex Ex UniCase enclosure, the device-specific inlay set and a Samsung Galaxy Tab S10 FE, 10.9 inch, for use in Zone 2 (gas) and Zone 22 (dust). ATEX and IECEx certified (ATEX marking II 3G Ex nR IIC T6 Gc / II 3D Ex tc IIIC T85°C Dc), IP64. Available with 128 or 256 GB storage as Wi-Fi or Wi-Fi + 5G configuration.
ATEX Samsung Galaxy Tab S10 FE for Zone 2/22: Armadex Ex UniCase set
Certifications: ATEX • IECEx • Zone 2/22 | ATEX marking: II 3G Ex nR IIC T6 Gc • II 3D Ex tc IIIC T85°C Dc | Protection: IP64 | Manufacturer: Armadex Explosion Protection B.V.

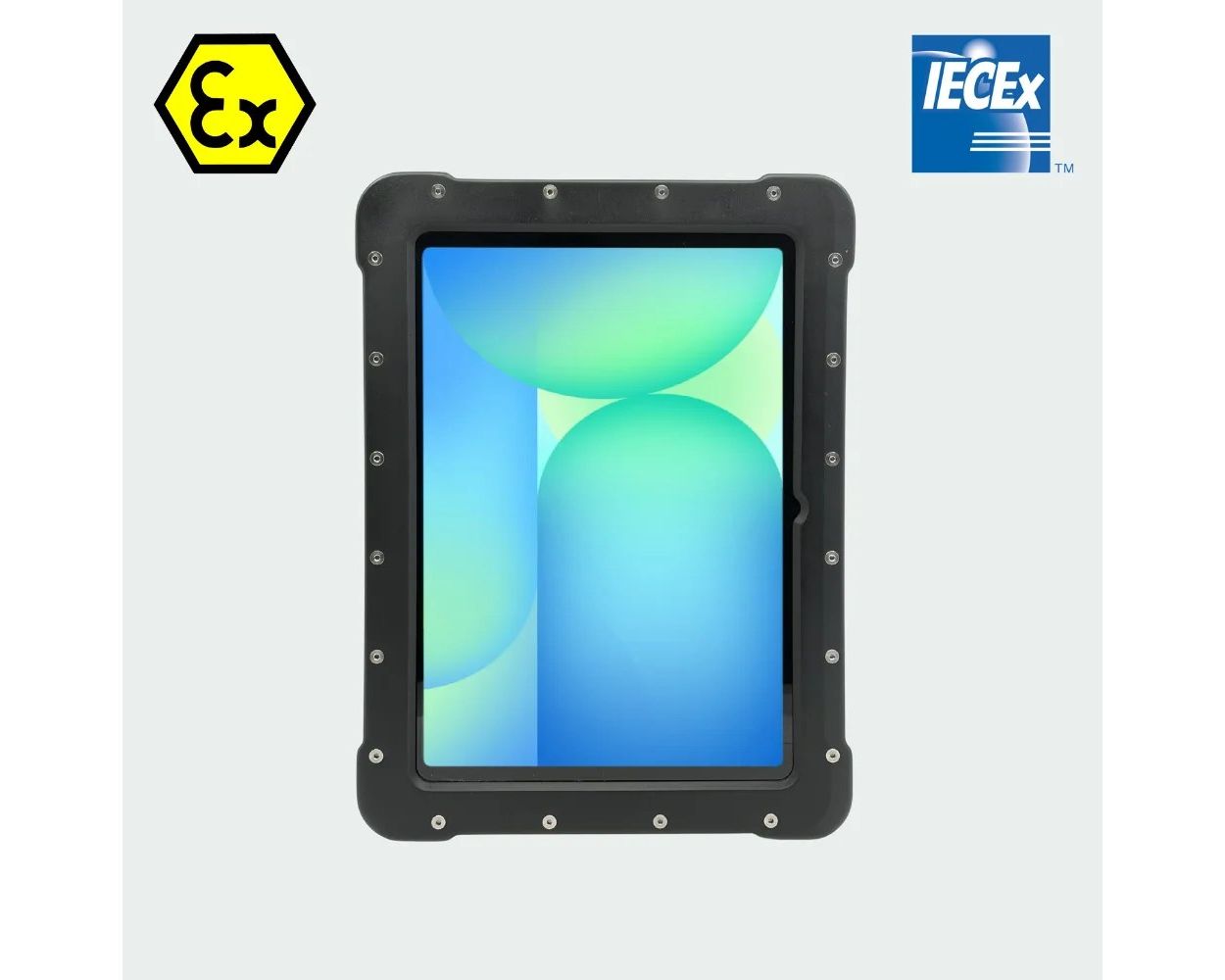

The Armadex Ex UniCase with Samsung Galaxy Tab S10 FE is a complete set for use in hazardous areas classified as Zone 2 (gas) and Zone 22 (dust). The set consists of the certified Ex UniCase enclosure, the device-specific inlay set and a Samsung Galaxy Tab S10 FE, 10.9 inch tablet. The enclosure is ATEX certified (OBAC 26 ATEX 0194X) and IECEx certified (IECEx OBAC 26.0005X). The ATEX marking is II 3G Ex nR IIC T6 Gc and II 3D Ex tc IIIC T85°C Dc; the IECEx marking is Ex nR IIC T6 Gc and Ex tc IIIC T85°C Dc.
For buyers looking for an ATEX or explosion proof tablet for Zone 2, it is useful to know how this set is protected: the explosion protection is provided by the enclosure, through restricted breathing (Ex nR) for gas and protection by enclosure (Ex tc) for dust. The touchscreen, cameras, microphones and speakers remain usable inside the enclosure, and the USB-C port is intended for use outside the hazardous area only.
Configurations and prices
| Storage | Network | SKU | Price excl. VAT |
|---|---|---|---|
| 128 GB | Wi-Fi | UC-SET-TAB-S10FE-128-WIFI | EUR 2,220 |
| 128 GB | Wi-Fi + 5G | UC-SET-TAB-S10FE-128-5G | EUR 2,302 |
| 256 GB | Wi-Fi | UC-SET-TAB-S10FE-256-WIFI | EUR 2,319 |
| 256 GB | Wi-Fi + 5G | UC-SET-TAB-S10FE-256-5G | EUR 2,402 |
| Enclosure only, incl. inlay set for the Galaxy Tab S10 FE, without tablet | UC-CASE | EUR 1,700 | |
Mention the SKU of the configuration you need in your order or quote request.
Why this set
ATEX and IECEx for Zone 2/22
The enclosure is certified under ATEX (OBAC 26 ATEX 0194X) and IECEx (IECEx OBAC 26.0005X). ATEX marking: II 3G Ex nR IIC T6 Gc and II 3D Ex tc IIIC T85°C Dc. IECEx marking: Ex nR IIC T6 Gc and Ex tc IIIC T85°C Dc.
Protection by the enclosure
Gas protection is based on restricted breathing (Ex nR), dust protection on protection by enclosure (Ex tc). The enclosure has degree of protection IP64.
ESD-safe POM-C enclosure
Milled frame of ESD-safe POM-C, a transparent Plexiglas back plate and an impact-resistant polycarbonate display window, sealed with a 3 mm silicone rubber O-ring.
Tablet functions remain usable
Touchscreen, cameras, microphones and speakers stay accessible. Three stainless steel push buttons operate the physical buttons of the tablet through a patented inlay system.
Modular and upgradeable
The tablet is held in place by device-specific ABS corner inlays. It can be replaced or renewed without modifying the certified enclosure.
Storage and network options
Available with 128 GB or 256 GB storage, expandable with a microSD card, and as Wi-Fi or Wi-Fi + 5G configuration.
Technical specifications
Tablet: Samsung Galaxy Tab S10 FE
| Platform | Samsung Galaxy Tab S10 FE, 10.9 inch |
| Processor | Samsung Exynos 1580, octa-core CPU (2.9 / 2.6 / 1.9 GHz) |
| Memory (RAM) | 8 GB or 12 GB |
| Storage | 128 GB or 256 GB, expandable with microSD card |
| Display | 10.9 inch TFT, 2304 x 1440 pixels (WUXGA+) |
| Refresh rate | 90 Hz |
| Brightness | Up to 800 nits in High Brightness Mode |
| Rear camera | 13 MP with autofocus |
| Front camera | 12 MP |
| Biometrics | Fingerprint sensor and face recognition |
| Wireless | Wi-Fi 6 (802.11ax) and Bluetooth 5.3 |
| Mobile network | 5G sub-6 GHz (Wi-Fi + 5G configurations only) |
| Battery and charging | 8000 mAh battery, 45 W fast charging |
| Operating system | Android with One UI 7 |
| Tablet dimensions | 254.3 x 165.8 x 6.0 mm (tablet without enclosure) |
| Tablet weight | 497 g (tablet without enclosure) |
Enclosure and certification: Ex UniCase
| ATEX marking | II 3G Ex nR IIC T6 Gc II 3D Ex tc IIIC T85°C Dc |
| IECEx marking | Ex nR IIC T6 Gc Ex tc IIIC T85°C Dc |
| ATEX certificate | OBAC 26 ATEX 0194X, Issue 0 (12 May 2026) |
| IECEx certificate | IECEx OBAC 26.0005X, Issue 0 (28 May 2026) |
| Protection concepts | Ex nR: restricted breathing (gas) Ex tc: protection by enclosure (dust) |
| Zones | Zone 2 (gas) and Zone 22 (dust) |
| Directive | 2014/34/EU (ATEX) |
| Standards (ATEX) | EN IEC 60079-0:2018, EN IEC 60079-15:2019, EN IEC 60079-31:2024 |
| Standards (IECEx) | IEC 60079-0:2017, IEC 60079-15:2017, IEC 60079-31:2022 |
| Certification body | OBAC Sp. z o.o., Gliwice, Poland |
| Degree of protection | IP64 |
| Ambient temperature, operating | -20°C to +50°C |
| Ambient temperature, storage | -20°C to +60°C |
| User interface | Touchscreen and 3 mechanical push buttons |
| External port | USB-C, for use outside the hazardous area only |
| Wireless communication (as stated on the certificate) | Wi-Fi, Bluetooth |
| Main enclosure | Milled frame of ESD-safe POM-C |
| Back plate | Transparent Plexiglas |
| Sealing | 3 mm silicone rubber O-ring between back plate and enclosure |
| Display window | Impact-resistant polycarbonate |
| Corner inlays | Device-specific modular ABS corner inlays for positioning the tablet |
| Push buttons | 3 stainless steel push buttons via a patented inlay system |
| Manufacturer | Armadex Explosion Protection B.V., Ridderkerk, the Netherlands |
Specific conditions of use (X)
Both certificates carry the suffix X. The following specific conditions of use apply:
- The Ex UniCase may only be opened or closed outside the hazardous area.
- The USB lid and the test port plug must always be mounted in the hazardous area.
- The device must be protected from impacts with high impact energy, against excessive UV light emission and against high electrostatic charge processes.
Applications
The set is intended for professional use in Zone 2 and Zone 22 hazardous areas, with the functions of the Galaxy Tab S10 FE available behind the certified enclosure.
Inspection
Work through inspection routines on the 10.9 inch touchscreen in Zone 2 and Zone 22 areas.
Documentation
Record findings with the 13 MP rear camera with autofocus, which remains usable inside the enclosure.
Reporting
Complete reports in the field and transfer data wirelessly via Wi-Fi.
Operation in the field
Operate apps and systems on site with the touchscreen and the three mechanical push buttons.
Documentation
- Datasheet Ex UniCase Galaxy Tab S10 FE (PDF, English)
- ATEX type examination certificate OBAC 26 ATEX 0194X (PDF)
- IECEx certificate IECEx OBAC 26.0005X (IECEx online certificate system)
See all supported tablets on the Ex UniCase overview.
