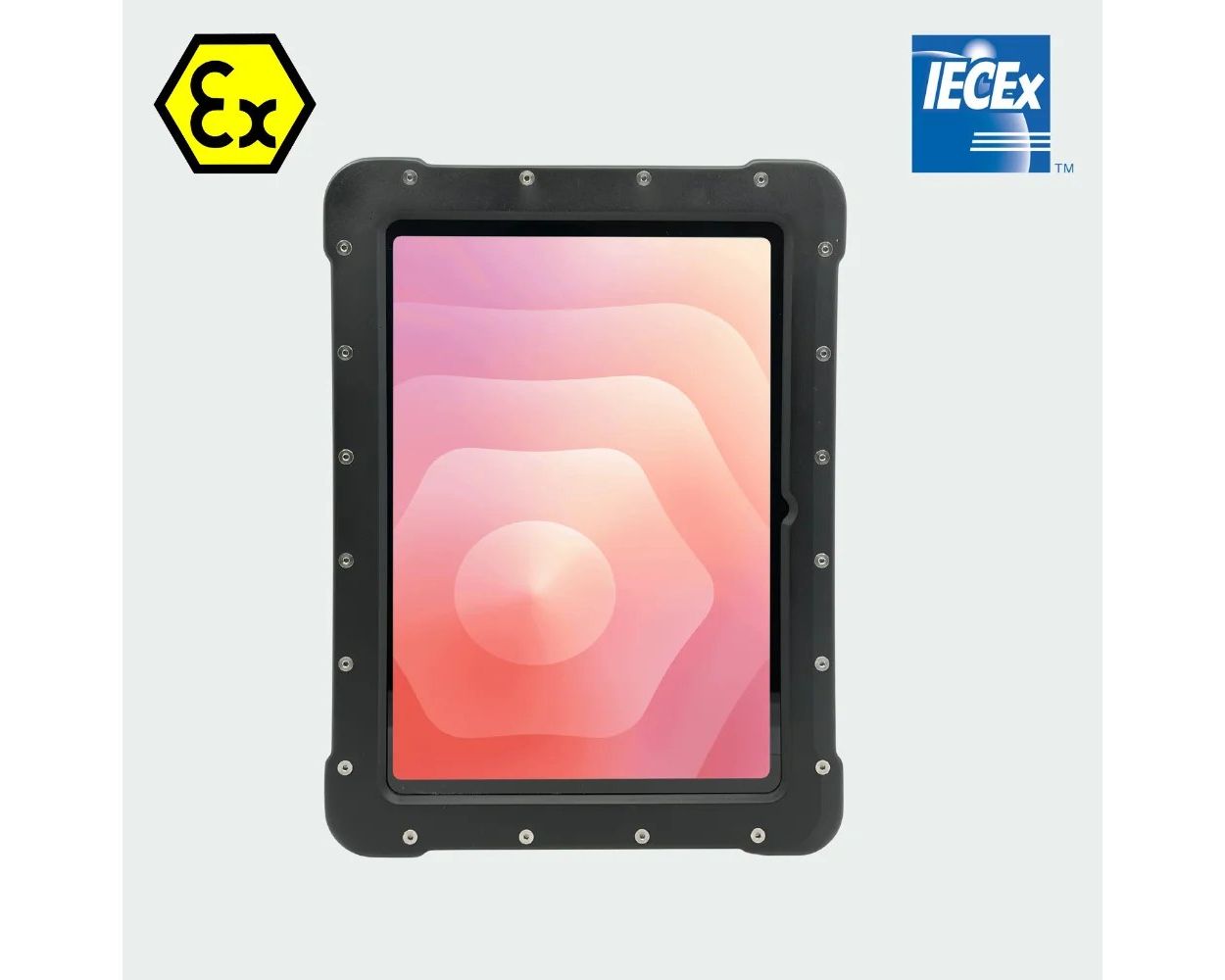

ATEX Samsung Galaxy Tab S11 Zone 2/22 - Armadex Ex UniCase Set
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
Complete ATEX/IECEx Zone 2/22 set with the Armadex Ex UniCase enclosure, the Galaxy Tab S11 inlay set and a Samsung Galaxy Tab S11, 11 inch tablet. Marked Ex nR IIC T6 Gc and Ex tc IIIC T85°C Dc, IP64, available with 128, 256 or 512 GB storage and Wi-Fi or Wi-Fi + 5G.
ATEX Samsung Galaxy Tab S11 for Zone 2/22: Armadex Ex UniCase set
Certifications: ATEX • IECEx • Zone 2/22 | Protection: Ex nR (gas) • Ex tc (dust) • IP64 | Set: UniCase enclosure • Galaxy Tab S11 inlay set • Samsung Galaxy Tab S11, 11 inch | Manufacturer: Armadex Explosion Protection B.V.
The Armadex Ex UniCase with Samsung Galaxy Tab S11 is a complete set for buyers looking for an ATEX or explosion proof tablet for Zone 2 (gas) and Zone 22 (dust). The set consists of the certified Ex UniCase enclosure, the device-specific inlay set for the Galaxy Tab S11 and a Samsung Galaxy Tab S11, 11 inch tablet. The enclosure is certified under ATEX (OBAC 26 ATEX 0194X) and IECEx (IECEx OBAC 26.0005X).
The protection is provided by the enclosure: Ex nR (restricted breathing) for gas and Ex tc (protection by enclosure) for dust, with the marking II 3G Ex nR IIC T6 Gc and II 3D Ex tc IIIC T85°C Dc. The touchscreen, cameras, microphones and speakers remain accessible inside the enclosure. The USB-C port is for use outside the hazardous area only.
Configurations and prices
| Storage | Network | SKU | Price excl. VAT |
|---|---|---|---|
| 128 GB | Wi-Fi | UC-SET-TAB-S11-128-WIFI | EUR 2,526 |
| 128 GB | Wi-Fi + 5G | UC-SET-TAB-S11-128-5G | EUR 2,650 |
| 256 GB | Wi-Fi | UC-SET-TAB-S11-256-WIFI | EUR 2,608 |
| 256 GB | Wi-Fi + 5G | UC-SET-TAB-S11-256-5G | EUR 2,732 |
| 512 GB | Wi-Fi | UC-SET-TAB-S11-512-WIFI | EUR 2,774 |
| 512 GB | Wi-Fi + 5G | UC-SET-TAB-S11-512-5G | EUR 2,898 |
| Ex UniCase enclosure only, without tablet | UC-CASE | EUR 1,700 | |
The certificates list Wi-Fi and Bluetooth under wireless communication; mobile network (5G) is not listed.
Mention the SKU of the configuration you need in your order or quote request.
Why this set
ATEX and IECEx, Zone 2 and Zone 22
The enclosure is certified under OBAC 26 ATEX 0194X and IECEx OBAC 26.0005X, with the marking II 3G Ex nR IIC T6 Gc and II 3D Ex tc IIIC T85°C Dc.
Complete set per SKU
Each configuration combines the Ex UniCase enclosure, the Galaxy Tab S11 inlay set and the Samsung Galaxy Tab S11. Choose 128 GB, 256 GB or 512 GB storage, with Wi-Fi or Wi-Fi + 5G.
Tablet functions remain available
The touchscreen, cameras, microphones and speakers remain accessible. Three stainless steel push buttons operate the physical buttons of the tablet via a patented inlay system.
Enclosure construction
Milled frame of ESD-safe POM-C, transparent back plate, 3 mm silicone rubber O-ring and a transparent front cover (display window). Degree of protection IP64.
Modular inlay system
The certified enclosure is separate from the tablet. Device-specific ABS corner inlays position the Galaxy Tab S11. With the inlay set for another supported model, the same enclosure can house a different tablet.
Temperature range
Ambient temperature from -20°C to +50°C in operation and from -20°C to +60°C in storage, as stated on the certificates.
Tablet specifications
Specifications of the Samsung Galaxy Tab S11 supplied in the set.
| Tablet | Samsung Galaxy Tab S11, 11 inch |
| Processor | 3 nm MediaTek chipset, octa-core (up to 3.73 GHz) |
| RAM | 12 GB |
| Storage | 128 GB, 256 GB or 512 GB (expandable with microSD up to 2 TB) |
| Display | 11 inch Dynamic AMOLED 2X, 2560 x 1600 pixels (WQXGA) |
| Refresh rate | 120 Hz |
| Brightness | 1000 nits (High Brightness Mode), peak 1600 nits |
| Rear camera | 13 MP with autofocus and flash |
| Front camera | 12 MP |
| Biometrics | In-display fingerprint sensor and face recognition |
| Wireless | Wi-Fi 6E (802.11ax, 2.4/5/6 GHz) and Bluetooth 5.4 |
| Mobile network | 5G on the Wi-Fi + 5G versions, dual SIM with eSIM. The certificates list Wi-Fi and Bluetooth under wireless communication; mobile network (5G) is not listed. |
| Dimensions (tablet only) | 253.8 x 165.3 x 5.5 mm |
| Weight (tablet only) | 471 g |
| Battery | 8,400 mAh, up to 18 hours of video playback |
| S Pen | Supplied with the tablet; not part of the certified enclosure |
| Operating system | Android |
Enclosure and certification
Certification
| ATEX marking | II 3G Ex nR IIC T6 Gc II 3D Ex tc IIIC T85°C Dc |
| ATEX certificate | OBAC 26 ATEX 0194X, Issue 0 (12 May 2026) |
| IECEx marking | Ex nR IIC T6 Gc Ex tc IIIC T85°C Dc |
| IECEx certificate | IECEx OBAC 26.0005X, Issue 0 (28 May 2026) |
| Zones | Zone 2 (gas) and Zone 22 (dust) |
| Protection concepts | Ex nR, restricted breathing (gas) Ex tc, protection by enclosure (dust) |
| Directive | 2014/34/EU (ATEX) |
| Standards (ATEX) | EN IEC 60079-0:2018, EN IEC 60079-15:2019, EN IEC 60079-31:2024 |
| Standards (IECEx) | IEC 60079-0:2017, IEC 60079-15:2017, IEC 60079-31:2022 |
| Certification body | OBAC Sp. z o.o., Gliwice, Poland |
| Manufacturer | Armadex Explosion Protection B.V., Ridderkerk, the Netherlands |
Enclosure
| Degree of protection | IP64 |
| Ambient temperature (operating) | -20°C to +50°C |
| Ambient temperature (storage) | -20°C to +60°C |
| Power supply | Internal Li-ion battery, 3.7 to 7.6 V DC |
| User interface | Touchscreen and 3 mechanical push buttons |
| External port | USB-C, for use outside the hazardous area only |
| Wireless communication (certificate) | Wi-Fi, Bluetooth |
| Main enclosure | Milled frame of ESD-safe POM-C |
| Back plate | Transparent |
| Seal | 3 mm silicone rubber O-ring between back plate and enclosure |
| Display window | Transparent front cover |
| Corner inlays | Device-specific modular ABS corner inlays for positioning the tablet |
| Push buttons | 3 stainless steel push buttons via a patented inlay system |
Understanding the protection concepts
Ex nR (restricted breathing): the enclosure is designed to restrict the entry of flammable gases and vapours. Gas group IIC, temperature class T6 (maximum surface temperature 85°C), equipment protection level Gc for Zone 2.
Ex tc (protection by enclosure): the enclosure keeps dust out and limits the maximum surface temperature to 85°C. Dust group IIIC, equipment protection level Dc for Zone 22.
Not Ex i or Ex d: the protection is provided by the enclosure. The set is not an intrinsically safe (Ex i) or flameproof (Ex d) design.
Specific conditions of use (X)
Both certificate numbers carry the suffix X. The certificates state the following specific conditions of use:
- The Ex UniCase may only be opened or closed outside the hazardous area.
- The USB lid and the test port plug must always be fitted in the hazardous area.
- The device must be protected from impacts with high impact energy, against excessive UV light and against high electrostatic charge processes.
Applications
The set is intended for professional use in Zone 2 and Zone 22 hazardous areas, with the functions of the Galaxy Tab S11 available inside the certified enclosure.
Inspection
Inspection rounds and checks in Zone 2 and Zone 22 areas, using the touchscreen and the cameras of the tablet.
Documentation
Recording findings, photos and notes on site in the hazardous area.
Reporting
Completing reports in the field, with data transfer via Wi-Fi or Bluetooth.
Field operation
Operating applications on the tablet during field work in classified areas.
Documentation
- ATEX type examination certificate OBAC 26 ATEX 0194X (PDF, armadex.com)
- IECEx certificate IECEx OBAC 26.0005X (IECEx website)
Datasheet available on request.
See all supported tablets on the Ex UniCase overview.
