ATEX iPad Air 11 (M4) Zone 2/22 - Armadex Ex UniCase Set
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.

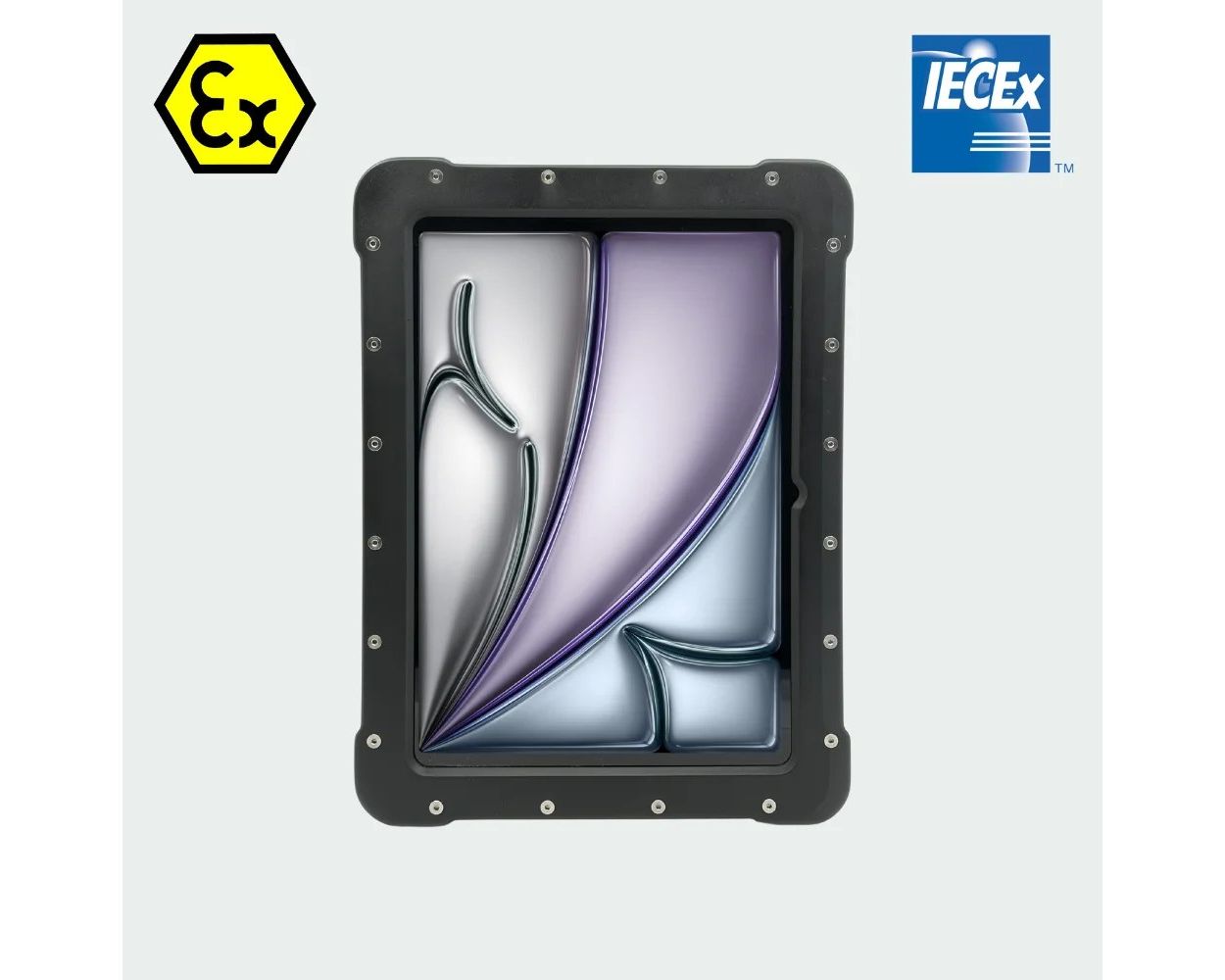

Complete set of the Armadex Ex UniCase enclosure, the device-specific inlay set and a new Apple iPad Air 11 inch (M4). The enclosure is ATEX and IECEx certified for Zone 2 and Zone 22 (Ex nR IIC T6 Gc, Ex tc IIIC T85°C Dc), with degree of protection IP64 and a frame of ESD-safe POM-C. The set is available with 128 GB to 1 TB storage, as Wi-Fi or Wi-Fi + 5G model.
ATEX iPad Air 11 (M4) for Zone 2/22: Armadex Ex UniCase set
Certifications: ATEX • IECEx • Zone 2/22 • Ex nR IIC T6 Gc • Ex tc IIIC T85°C Dc | Protection: IP64 | Manufacturer: Armadex Explosion Protection B.V., Ridderkerk, the Netherlands
This complete set combines the Armadex Ex UniCase enclosure, the device-specific inlay set and a new Apple iPad Air 11 inch (M4). For buyers looking for an ATEX or explosion proof tablet for Zone 2 and Zone 22, the set puts an iPad Air inside an enclosure that is certified under ATEX (OBAC 26 ATEX 0194X) and IECEx (IECEx OBAC 26.0005X).
The explosion protection is provided by the enclosure: type of protection Ex nR (restricted breathing) for gas and Ex tc (protection by enclosure) for dust, with the marking II 3G Ex nR IIC T6 Gc and II 3D Ex tc IIIC T85°C Dc. The touchscreen, cameras, microphones and speakers remain usable inside the enclosure. The iPad Air 11 inch (M4) is the successor to the iPad Air 11 inch (M3).
Configurations and prices
| Storage | Network | SKU | Price excl. VAT |
|---|---|---|---|
| 128 GB | Wi-Fi | UC-SET-IPAD-AIR-M4-128-WIFI | EUR 2,385 |
| 128 GB | Wi-Fi + 5G | UC-SET-IPAD-AIR-M4-128-5G | EUR 2,526 |
| 256 GB | Wi-Fi | UC-SET-IPAD-AIR-M4-256-WIFI | EUR 2,493 |
| 256 GB | Wi-Fi + 5G | UC-SET-IPAD-AIR-M4-256-5G | EUR 2,633 |
| 512 GB | Wi-Fi | UC-SET-IPAD-AIR-M4-512-WIFI | EUR 2,699 |
| 512 GB | Wi-Fi + 5G | UC-SET-IPAD-AIR-M4-512-5G | EUR 2,840 |
| 1 TB | Wi-Fi | UC-SET-IPAD-AIR-M4-1TB-WIFI | EUR 3,013 |
| 1 TB | Wi-Fi + 5G | UC-SET-IPAD-AIR-M4-1TB-5G | EUR 3,154 |
| Enclosure only (universal), without tablet | UC-CASE | EUR 1,700 | |
Mention the SKU of the configuration you need in your order or quote request.
Why this set
ATEX and IECEx for Zone 2/22
The enclosure is certified under ATEX (OBAC 26 ATEX 0194X) and IECEx (IECEx OBAC 26.0005X), marked II 3G Ex nR IIC T6 Gc and II 3D Ex tc IIIC T85°C Dc, for use in Zone 2 (gas) and Zone 22 (dust).
Ex nR and Ex tc protection
Gas protection is based on restricted breathing (Ex nR), dust protection on protection by enclosure (Ex tc). The protection is provided by the enclosure around the tablet.
IP64 enclosure of ESD-safe POM-C
Milled frame of ESD-safe POM-C with an impact-resistant polycarbonate display window, a transparent plexiglass back plate and a 3 mm silicone rubber O-ring between back plate and enclosure. Degree of protection IP64.
Tablet functions remain usable
Touchscreen, cameras, microphones and speakers remain usable. Three stainless steel push buttons operate the tablet's physical buttons through a patented inlay system.
Apple M4 with 12 GB memory
The iPad Air 11 inch (M4) has an Apple M4 chip with 12 GB memory, storage from 128 GB to 1 TB, Wi-Fi 7 and Bluetooth 6, and optional 5G (Wi-Fi + 5G models).
Modular inlay system
The tablet is held in place by device-specific, modular ABS corner inlays. The enclosure is separate from the tablet, so the same enclosure can take another supported tablet model with the matching inlay set.
Tablet specifications
| Tablet | Apple iPad Air 11 inch (M4) |
| Chip | Apple M4, 8-core CPU (3 performance cores and 5 efficiency cores), 9-core GPU, 16-core Neural Engine |
| Memory | 12 GB |
| Storage options | 128 GB / 256 GB / 512 GB / 1 TB |
| Display | 11 inch Liquid Retina (IPS, LED-backlit), 2360 x 1640 pixels, 264 ppi, fully laminated with anti-reflective coating |
| Brightness | 500 nits |
| Rear camera | 12 MP wide, f/1.8 |
| Front camera | 12 MP Center Stage (landscape), f/2.0 |
| Wireless | Wi-Fi 7 (802.11be) with 2x2 MIMO, Bluetooth 6 |
| Mobile network | 5G sub-6 GHz with 4x4 MIMO (Wi-Fi + 5G models, eSIM only) |
| Battery | 28.93 Wh rechargeable lithium-polymer battery, up to 10 hours of use |
| Operating system | iPadOS |
| Tablet dimensions (without enclosure) | 247.6 x 178.5 x 6.1 mm |
| Tablet weight (without enclosure) | 464 g (Wi-Fi), 465 g (Wi-Fi + 5G) |
Enclosure and certification
| ATEX marking | II 3G Ex nR IIC T6 Gc II 3D Ex tc IIIC T85°C Dc |
| IECEx marking | Ex nR IIC T6 Gc Ex tc IIIC T85°C Dc |
| ATEX certificate | OBAC 26 ATEX 0194X, Issue 0 (12 May 2026) |
| IECEx certificate | IECEx OBAC 26.0005X, Issue 0 (28 May 2026) |
| Certification body | OBAC Sp. z o.o., Gliwice, Poland |
| Directive | 2014/34/EU (ATEX) |
| Standards (ATEX) | EN IEC 60079-0:2018, EN IEC 60079-15:2019, EN IEC 60079-31:2024 |
| Standards (IECEx) | IEC 60079-0:2017, IEC 60079-15:2017, IEC 60079-31:2022 |
| Types of protection | Ex nR, restricted breathing (gas) Ex tc, protection by enclosure (dust) |
| Zones | Zone 2 (gas) and Zone 22 (dust) |
| Degree of protection | IP64 |
| Ambient temperature, operating | -20°C to +50°C |
| Ambient temperature, storage | -20°C to +60°C |
| User interface | Touchscreen and 3 mechanical push buttons |
| External port | USB-C, for use outside the hazardous area only |
| Wireless communication (certificate rated data) | Wi-Fi, Bluetooth |
| Power supply (certificate rated data) | Internal Li-ion battery, 3.7 to 7.6 V DC |
| Main enclosure | Milled frame of ESD-safe POM-C |
| Display window | Impact-resistant polycarbonate |
| Back plate | Transparent plexiglass |
| Seal | 3 mm silicone rubber O-ring between back plate and enclosure |
| Corner inlays | Device-specific modular ABS corner inlays for positioning the tablet |
| Push buttons | 3 stainless steel push buttons via a patented inlay system |
| Manufacturer | Armadex Explosion Protection B.V., Ridderkerk, the Netherlands |
Specific conditions of use (X)
Both certificates carry the X suffix. The following conditions apply:
- The Ex UniCase may only be opened or closed outside the hazardous area.
- The USB lid and the test port plug must always be fitted in the hazardous area.
- The device must be protected from impacts with high impact energy, against excessive UV light and against high electrostatic charge processes.
Applications
The Ex UniCase with iPad Air 11 inch (M4) is intended for professional use in Zone 2 and Zone 22 hazardous areas, for example for:
- Inspection in the field
- Documentation, for example with photos from the tablet's cameras
- Reporting on site
- Operation in the field
Documentation
- ATEX type examination certificate OBAC 26 ATEX 0194X, Issue 0 (PDF)
- IECEx certificate IECEx OBAC 26.0005X, Issue 0 (IECEx website)
- Datasheet available on request
See all supported tablets on the Ex UniCase overview.
