ATEX iPad Pro 11 (M5) Zone 2/22 - Armadex Ex UniCase Set
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.

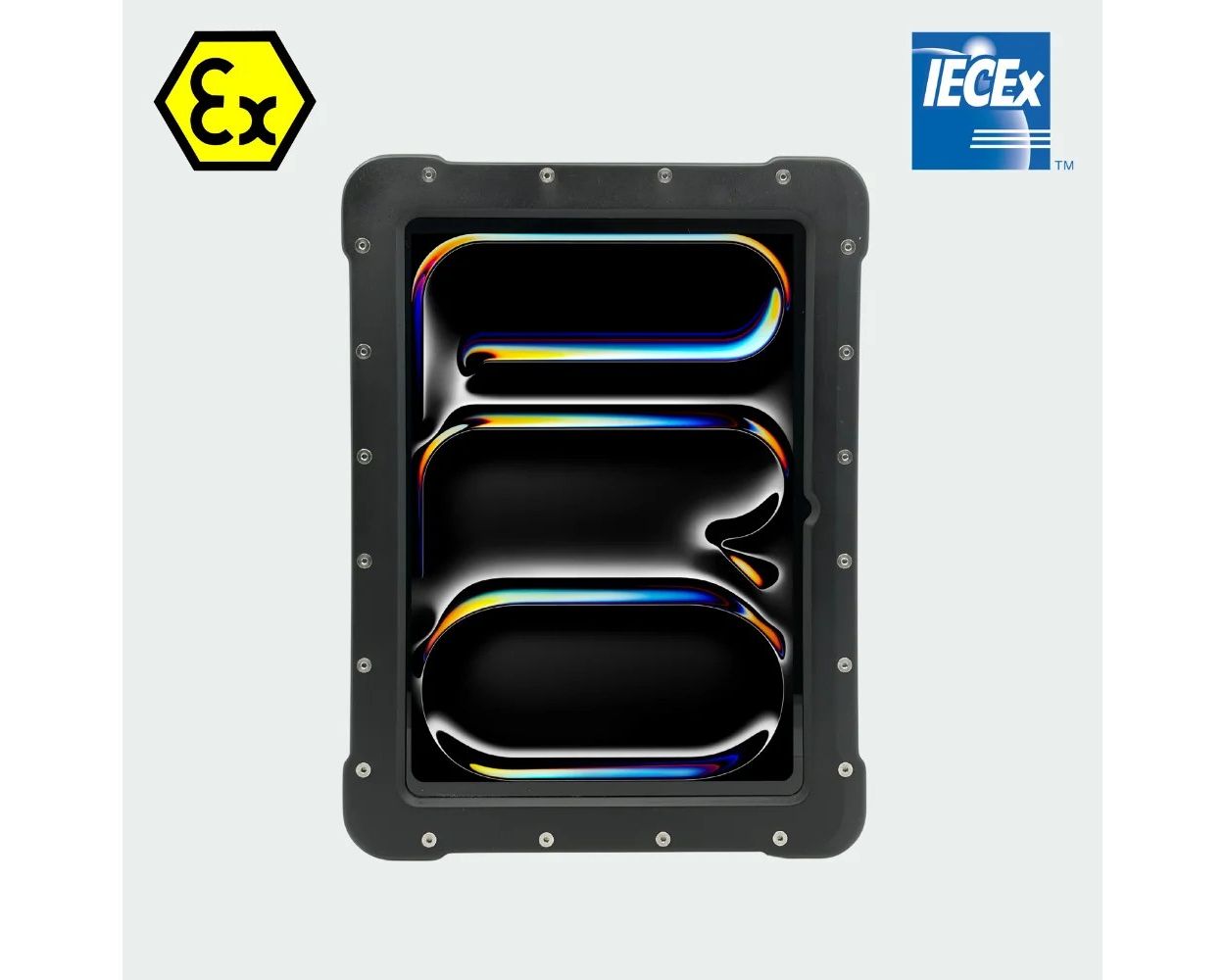

Complete set of the Armadex Ex UniCase enclosure, the device-specific inlay set and a new Apple iPad Pro 11 inch (M5), with ATEX and IECEx certification for Zone 2 and Zone 22. Gas protection by Ex nR (restricted breathing), dust protection by Ex tc (protection by enclosure), IP64, available with 256 GB to 2 TB storage in Wi-Fi or Wi-Fi + 5G.
ATEX iPad Pro 11 (M5) for Zone 2/22: Armadex Ex UniCase set
Certifications: ATEX • IECEx • Zone 2/22 | Protection: Ex nR (gas) • Ex tc (dust) • IP64 | Manufacturer: Armadex Explosion Protection B.V. | Price: from EUR 2,790 excl. VAT
This complete set consists of the Armadex Ex UniCase enclosure, the device-specific inlay set and a new Apple iPad Pro 11 inch (M5). It is intended for buyers looking for an ATEX or explosion proof tablet for Zone 2 (gas) and Zone 22 (dust). The UniCase enclosure is certified under ATEX (OBAC 26 ATEX 0194X) and IECEx (IECEx OBAC 26.0005X). The ATEX marking is II 3G Ex nR IIC T6 Gc and II 3D Ex tc IIIC T85°C Dc.
Explosion protection is provided by the enclosure: Ex nR (restricted breathing) for gas and Ex tc (protection by enclosure) for dust. The touchscreen, cameras, microphones, speakers and USB-C port remain accessible; the USB-C port is intended for use outside the hazardous area only. Because the enclosure is separate from the tablet, the same certified UniCase can later take another supported tablet model with the matching inlay set.
Configurations and prices
| Storage | Network | SKU | Price excl. VAT |
|---|---|---|---|
| 256 GB | Wi-Fi | UC-SET-IPAD-PRO-M5-256-WIFI | EUR 2,790 |
| 256 GB | Wi-Fi + 5G | UC-SET-IPAD-PRO-M5-256-5G | EUR 2,997 |
| 512 GB | Wi-Fi | UC-SET-IPAD-PRO-M5-512-WIFI | EUR 2,997 |
| 512 GB | Wi-Fi + 5G | UC-SET-IPAD-PRO-M5-512-5G | EUR 3,203 |
| 1 TB | Wi-Fi | UC-SET-IPAD-PRO-M5-1TB-WIFI | EUR 3,393 |
| 1 TB | Wi-Fi + 5G | UC-SET-IPAD-PRO-M5-1TB-5G | EUR 3,600 |
| 2 TB | Wi-Fi | UC-SET-IPAD-PRO-M5-2TB-WIFI | EUR 3,906 |
| 2 TB | Wi-Fi + 5G | UC-SET-IPAD-PRO-M5-2TB-5G | EUR 4,112 |
| Enclosure with inlay set, without tablet, for your own Apple iPad Pro 11 inch (M5) | UC-CASE | EUR 1,700 | |
Mention the SKU of the configuration you need in your order or quote request.
Why this set
Complete set
The UniCase enclosure, the inlay set for the iPad Pro 11 inch (M5) and a new Apple iPad Pro 11 inch (M5), with one SKU per storage and network configuration.
ATEX and IECEx, Zone 2/22
Certified under OBAC 26 ATEX 0194X and IECEx OBAC 26.0005X. ATEX marking II 3G Ex nR IIC T6 Gc and II 3D Ex tc IIIC T85°C Dc, IECEx marking Ex nR IIC T6 Gc and Ex tc IIIC T85°C Dc.
Ex nR and Ex tc
Gas protection by restricted breathing (Ex nR) and dust protection by enclosure (Ex tc). Degree of protection IP64.
Tablet functions remain usable
Touchscreen operation through the polycarbonate display window. Three stainless steel push buttons operate the tablet buttons via a patented inlay system. Cameras, microphones and speakers remain accessible.
Modular and upgrade-ready
The tablet is held in place by device-specific, modular ABS corner inlays. With the matching inlay set, the same certified enclosure can take another supported tablet model.
Certified ambient temperature
The Ex certification of the enclosure covers an ambient temperature (Tamb) of -20°C to +50°C in operation and -20°C to +60°C in storage. Main enclosure milled from ESD-safe POM-C.
Technical specifications
Tablet: Apple iPad Pro 11 inch (M5)
| Platform | Apple iPad Pro (M5), 11 inch |
| Chip | Apple M5, 9-core CPU (256 GB and 512 GB) or 10-core CPU (1 TB and 2 TB), 10-core GPU, 16-core Neural Engine |
| Memory | 12 GB (256 GB and 512 GB) or 16 GB (1 TB and 2 TB) |
| Storage | 256 GB, 512 GB, 1 TB or 2 TB |
| Display | 11 inch Ultra Retina XDR (tandem OLED), 2420 x 1668 pixels, 264 ppi |
| Refresh rate | ProMotion, adaptive from 10 Hz to 120 Hz |
| Brightness | 1000 nits SDR, 1600 nits peak (HDR) |
| Rear camera | 12 MP wide, f/1.8 |
| Front camera | 12 MP Center Stage (landscape), f/2.0 |
| Authentication | Face ID via TrueDepth camera |
| Wireless | Wi-Fi 7 (802.11be) and Bluetooth 6 |
| Mobile network | 5G sub-6 GHz (Wi-Fi + 5G configurations) |
| Tablet dimensions | 249.7 x 177.5 x 5.3 mm (tablet without enclosure) |
| Tablet weight | 444 g (Wi-Fi), 446 g (Wi-Fi + Cellular), tablet without enclosure |
| Battery | Internal lithium-polymer battery, 31.29 Wh, up to 10 hours of use |
| Operating system | iPadOS |
Enclosure and certification: Ex UniCase
| ATEX marking | II 3G Ex nR IIC T6 Gc II 3D Ex tc IIIC T85°C Dc |
| IECEx marking | Ex nR IIC T6 Gc Ex tc IIIC T85°C Dc |
| ATEX certificate | OBAC 26 ATEX 0194X, Issue 0 (12 May 2026) |
| IECEx certificate | IECEx OBAC 26.0005X, Issue 0 (28 May 2026) |
| Certification body | OBAC Sp. z o.o., Gliwice, Poland |
| EU directive | 2014/34/EU |
| Applied standards (ATEX) | EN IEC 60079-0:2018, EN IEC 60079-15:2019, EN IEC 60079-31:2024 |
| Applied standards (IECEx) | IEC 60079-0:2017, IEC 60079-15:2017, IEC 60079-31:2022 |
| Protection concepts | Ex nR, restricted breathing (gas) Ex tc, protection by enclosure (dust) |
| Zones | Zone 2 (gas) and Zone 22 (dust) |
| Degree of protection | IP64 |
| Ambient temperature, operating | -20°C to +50°C |
| Ambient temperature, storage | -20°C to +60°C |
| User interface | Touchscreen and 3 mechanical push buttons (stainless steel, patented inlay system) |
| External port | USB-C, for use outside the hazardous area only |
| Main enclosure | Milled frame of ESD-safe POM-C |
| Back cover | Transparent Plexiglas |
| Sealing | 3 mm silicone rubber O-ring between back cover and enclosure |
| Display window | Impact-resistant polycarbonate |
| Corner inlays | Device-specific, modular ABS inlays for positioning the tablet |
| Manufacturer | Armadex Explosion Protection B.V., Ridderkerk, the Netherlands |
How the protection works
Ex nR (restricted breathing): the enclosure limits the ingress of an explosive gas atmosphere. Applies to gas, Zone 2.
Ex tc (protection by enclosure): the enclosure keeps combustible dust out and limits its surface temperature (T85°C). Applies to dust, Zone 22.
The Ex UniCase is not an intrinsically safe (Ex i) or flameproof (Ex d) design. Its equipment protection levels are Gc (gas) and Dc (dust).
Specific conditions of use (X)
Both certificates carry the X suffix. The following specific conditions of use apply:
- The Ex UniCase may only be opened or closed outside the hazardous area.
- The USB lid and the test port plug must always be fitted in the hazardous area.
- The device must be protected against impacts with high impact energy, against excessive UV light and against processes that generate high electrostatic charges.
Applications
The set is intended for professional use in Zone 2 and Zone 22 areas, with the functions of the iPad Pro available inside the certified enclosure.
Inspection
Inspection rounds in the field, with photos taken by the tablet cameras.
Documentation and reporting
Recording findings and preparing reports on site.
Visualisation
Viewing drawings, procedures and process information on the 11 inch display.
Operation in the field
Operating and monitoring applications via the touchscreen.
Documentation
- Datasheet Ex UniCase iPad Pro 11 inch (M5) (PDF, English)
- ATEX type examination certificate OBAC 26 ATEX 0194X (PDF)
- IECEx certificate IECEx OBAC 26.0005X (IECEx online certificate system)
See all supported tablets on the Ex UniCase overview.
