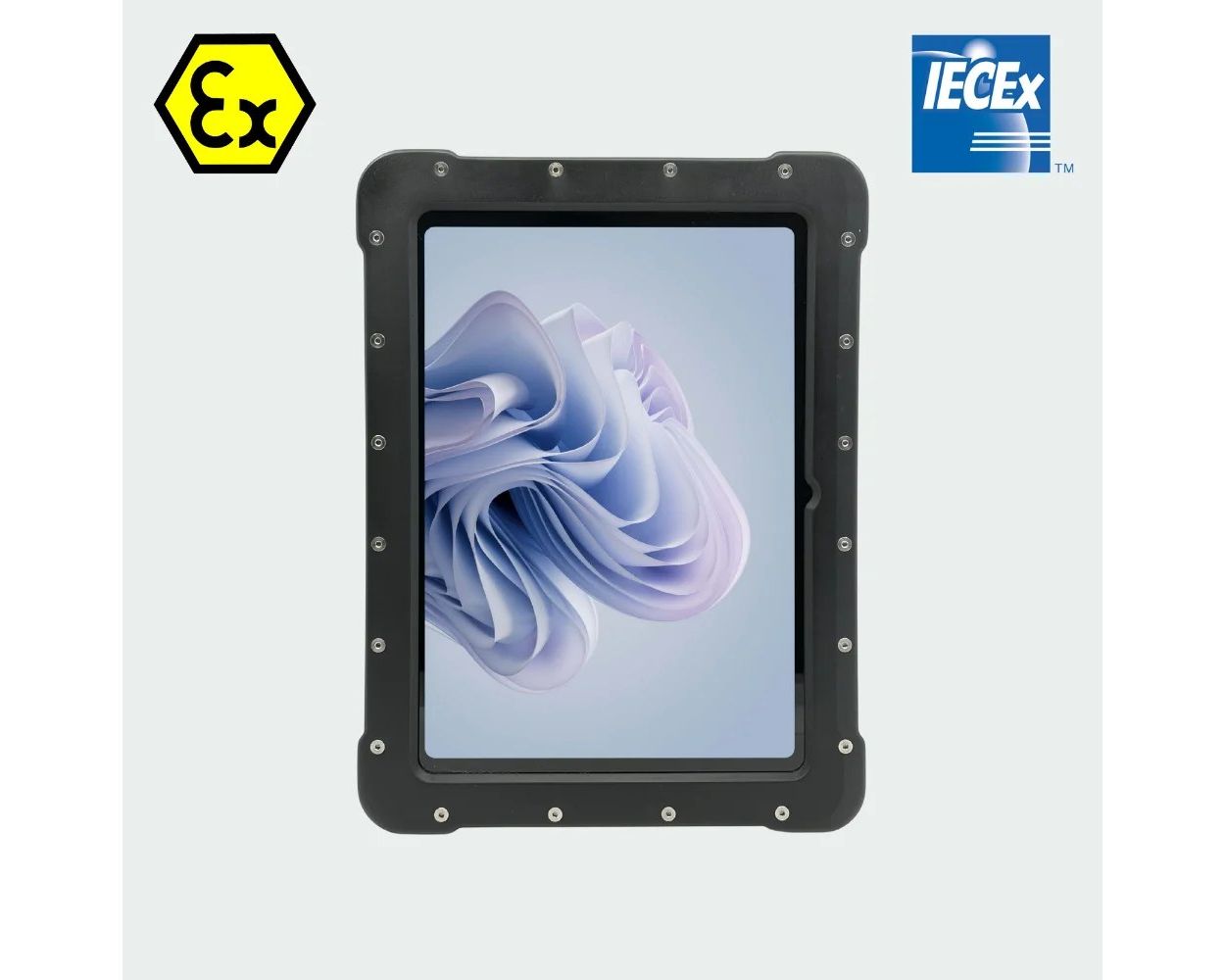

ATEX Microsoft Surface Go 4 Zone 2/22 - Armadex Ex UniCase Set
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
Complete set for ATEX/IECEx Zone 2/22: the Armadex Ex UniCase enclosure with inlay set and a Microsoft Surface Go 4 (10.5 inch, Windows 11 Pro) with 64, 128 or 256 GB storage. The enclosure is protected by Ex nR (gas) and Ex tc (dust), rated IP64 and certified under OBAC 26 ATEX 0194X and IECEx OBAC 26.0005X.
ATEX Microsoft Surface Go 4 for Zone 2/22: Armadex Ex UniCase set
Certifications: ATEX Zone 2/22 • IECEx Zone 2/22 | Protection: Ex nR (gas) • Ex tc (dust) • IP64 | Tablet: Microsoft Surface Go 4, 10.5 inch, Windows 11 Pro | Manufacturer: Armadex Explosion Protection B.V.
The Armadex Ex UniCase with Microsoft Surface Go 4 is a complete set for use in hazardous areas classified as Zone 2 (gas) and Zone 22 (dust). The set consists of the certified Ex UniCase enclosure, the device-specific inlay set and a Microsoft Surface Go 4 tablet with a 10.5 inch display and Windows 11 Pro. It is intended for buyers looking for an ATEX or explosion proof tablet for Zone 2 who want to work with a standard Windows tablet.
The enclosure is certified under ATEX certificate OBAC 26 ATEX 0194X and IECEx certificate IECEx OBAC 26.0005X. Gas protection is based on restricted breathing (Ex nR) and dust protection on protection by enclosure (Ex tc), with degree of protection IP64. The touchscreen, cameras, microphones and speakers remain usable, and the tablet's physical buttons are operated through three stainless steel push buttons.
Configurations and prices
| Storage | Network | SKU | Price excl. VAT |
|---|---|---|---|
| 64 GB | Wi-Fi | UC-SET-SURF-GO4-64-WIFI | EUR 2,589 |
| 128 GB | Wi-Fi | UC-SET-SURF-GO4-128-WIFI | EUR 2,589 |
| 256 GB | Wi-Fi | UC-SET-SURF-GO4-256-WIFI | EUR 2,589 |
| Enclosure only (universal, without tablet), see Ex UniCase overview | UC-CASE | EUR 1,700 | |
Mention the SKU of the configuration you need in your order or quote request.
Why this set
ATEX and IECEx certified enclosure
ATEX marking II 3G Ex nR IIC T6 Gc and II 3D Ex tc IIIC T85°C Dc under OBAC 26 ATEX 0194X. IECEx marking Ex nR IIC T6 Gc and Ex tc IIIC T85°C Dc under IECEx OBAC 26.0005X. Both certificates were issued by OBAC Sp. z o.o. in Gliwice, Poland.
Protection concepts nR and tc
Gas protection by restricted breathing (Ex nR, IEC 60079-15) and dust protection by enclosure (Ex tc, IEC 60079-31). The enclosure has degree of protection IP64.
Windows 11 Pro on the Surface Go 4
Intel Processor N200 with Intel UHD Graphics, 8 GB LPDDR5 memory and a choice of 64, 128 or 256 GB storage. Windows Hello face sign-in, hardware TPM 2.0 and Windows 11 Secured-core PC.
Tablet functions remain available
The touchscreen, cameras, microphones and speakers remain usable inside the enclosure. Three stainless steel push buttons operate the tablet's buttons via a patented inlay system. Wireless data transfer runs via Wi-Fi and Bluetooth.
Modular inlay system
Device-specific modular ABS corner inlays position the Surface Go 4 in the enclosure. The tablet can be replaced without changing the certified enclosure.
Enclosure construction
Milled frame made of ESD-safe POM-C, an impact-resistant display window and a 3 mm silicone rubber O-ring between back plate and enclosure. Ambient temperature in operation: -20°C to +50°C.
Tablet specifications
| Tablet | Microsoft Surface Go 4, 10.5 inch |
| Processor | Intel Processor N200 with Intel UHD Graphics |
| Memory | 8 GB LPDDR5 |
| Storage | 64 GB, 128 GB or 256 GB (UFS) |
| Display | 10.5 inch PixelSense, 1920 x 1280 pixels, 220 ppi, 3:2 aspect ratio, Corning Gorilla Glass 3 |
| Touch | 10-point multi-touch |
| Brightness and contrast | 350 nits (typical), contrast ratio 1500:1 |
| Rear camera | 8 MP, 1080p Full HD |
| Front camera | 1080p Full HD, plus Windows Hello face authentication camera |
| Security | Windows Hello face sign-in, hardware TPM 2.0, Windows 11 Secured-core PC |
| Wireless | Wi-Fi 6 (802.11ax) and Bluetooth 5.1; all configurations in this set are Wi-Fi models |
| Operating system | Windows 11 Pro |
| Power | 24 W power supply, up to 12.5 hours of use |
| Tablet dimensions | 245 x 175 x 8.3 mm (tablet only, without enclosure) |
| Tablet weight | 521 g (tablet only, without enclosure) |
Enclosure and certification
| Certified equipment | Armadex Ex UniCase |
| Manufacturer | Armadex Explosion Protection B.V., Ridderkerk, the Netherlands |
| ATEX marking | II 3G Ex nR IIC T6 Gc II 3D Ex tc IIIC T85°C Dc |
| IECEx marking | Ex nR IIC T6 Gc Ex tc IIIC T85°C Dc |
| ATEX certificate | OBAC 26 ATEX 0194X, Issue 0 (12 May 2026) |
| IECEx certificate | IECEx OBAC 26.0005X, Issue 0 (28 May 2026) |
| Certification body | OBAC Sp. z o.o., Gliwice, Poland |
| Directive | 2014/34/EU (ATEX 114) |
| Standards (ATEX) | EN IEC 60079-0:2018, EN IEC 60079-15:2019, EN IEC 60079-31:2024 |
| Standards (IECEx) | IEC 60079-0:2017, IEC 60079-15:2017, IEC 60079-31:2022 |
| Protection concepts | Ex nR, restricted breathing (gas) Ex tc, protection by enclosure (dust) |
| Zones and EPL | Zone 2 (gas), EPL Gc, category 3G Zone 22 (dust), EPL Dc, category 3D |
| Gas group and temperature class | IIC, T6 |
| Dust group and maximum surface temperature | IIIC, T85°C |
| Degree of protection | IP64 |
| Ambient temperature | -20°C to +50°C (operating) -20°C to +60°C (storage) |
| Rated power supply | Internal Li-ion battery, 3.7 to 7.6 V DC |
| User interface | Touchscreen and 3 mechanical push buttons |
| External port | USB-C, for use outside the hazardous area only |
| Wireless communication | Wi-Fi, Bluetooth |
| Enclosure frame | Milled frame made of ESD-safe POM-C |
| Front and back | Transparent, impact-resistant display window and transparent back plate |
| Sealing | 3 mm silicone rubber O-ring between back plate and enclosure |
| Corner inlays | Device-specific modular ABS corner inlays for positioning the tablet |
| Push buttons | 3 stainless steel push buttons via a patented inlay system |
Specific conditions of use (X)
Both certificates carry the suffix X. The following specific conditions of use apply:
- The Ex UniCase may only be opened or closed outside the hazardous area.
- The USB lid and the test port plug must always be mounted in the hazardous area.
- The device must be protected from impacts with high impact energy, against excessive UV light and against high electrostatic charge processes.
The USB socket in the frame is intended for use in non-hazardous areas only.
Applications
The set is intended for professional use in areas classified as Zone 2 (gas) or Zone 22 (dust), with the functions of the Surface Go 4 available inside the certified enclosure. Typical tasks include:
- Inspection
- Documentation, including photos taken with the tablet cameras
- Reporting in the field
- Operation in the field
The equipment is category 3 (EPL Gc and Dc). It is suitable for Zone 2 and Zone 22 only, not for Zone 0, 1, 20 or 21.
Documentation
- Datasheet available on request
- ATEX type examination certificate OBAC 26 ATEX 0194X (PDF)
- IECEx certificate IECEx OBAC 26.0005X (IECEx online certificate system)
See all supported tablets on the Ex UniCase overview.
