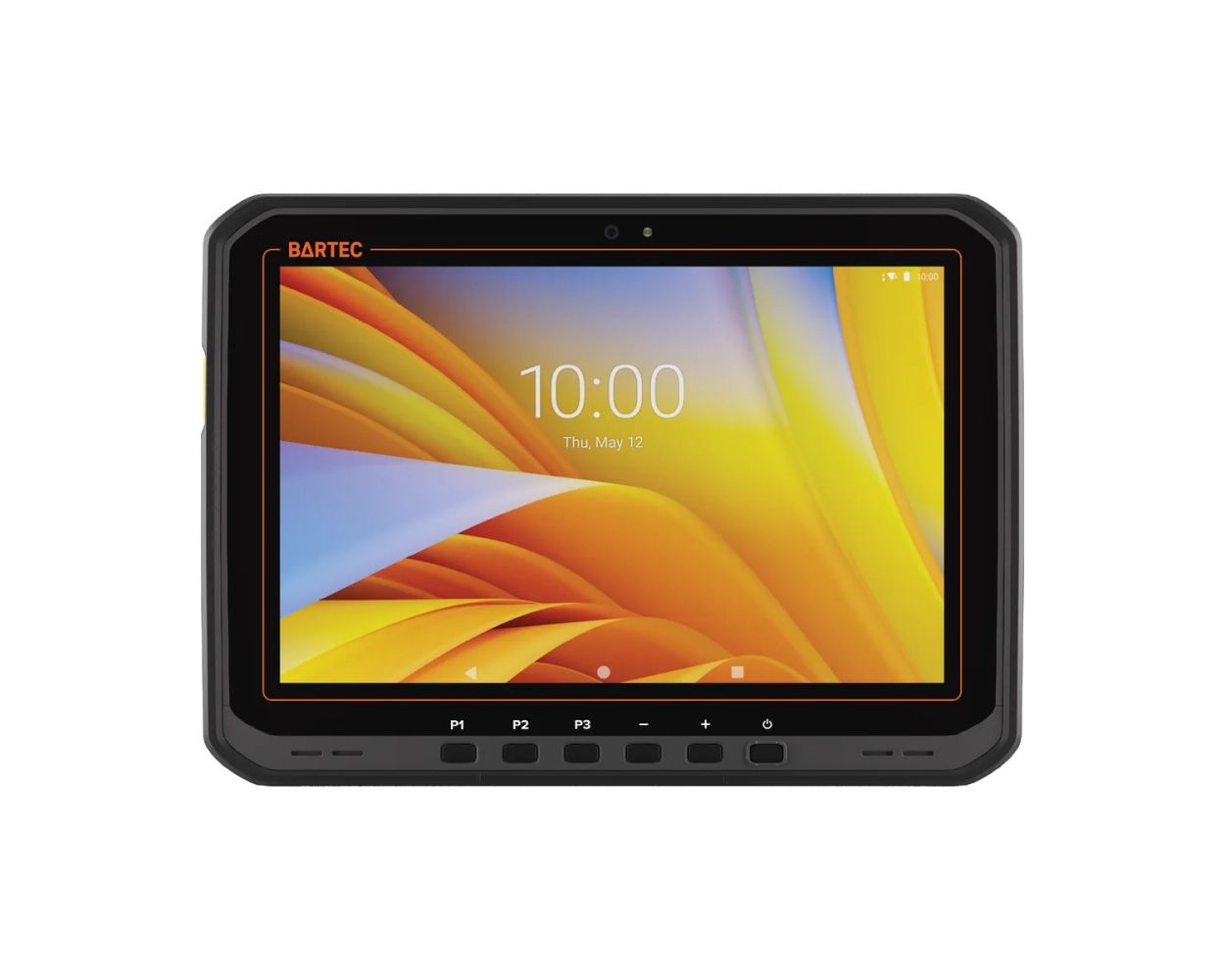

BARTEC ET60/65EX2 ATEX Zone 2/22 Android Tablet, 10.1 inch
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
10.1 inch Android 14 tablet for Zone 2 and Zone 22, certified under ATEX (EPS 25 ATEX 1 087 X) and IECEx (IECEx EPS 25.0018X) with type of protection Ex ic, IIC T4 Gc and IIIC T135°C Dc IP64. Available as ET60EX2 (Wi-Fi) or ET65EX2 (5G and GNSS), each with or without the SE55 1D/2D scan engine, from EUR 2,667 excl. VAT.
BARTEC ET60/65EX2 ATEX Zone 2/22 Android Tablet
Certifications: ATEX • IECEx • Zone 2/22 | Protection: Ex ic (intrinsic safety) • op is (with scan engine) • IP64 | Display: 10.1 inch • Android 14 | Manufacturer: BARTEC
The BARTEC ET60/65EX2 is a 10.1 inch Android tablet for Zone 2 (gas) and Zone 22 (dust) hazardous areas, for buyers looking for an ATEX, intrinsically safe or explosion proof tablet for these zones. It is certified under ATEX (EPS 25 ATEX 1 087 X) and IECEx (IECEx EPS 25.0018X) with the type of protection Ex ic, intrinsic safety, with the marking Ex ic IIC T4 Gc for gas and Ex ic IIIC T135°C Dc IP64 for dust.
According to BARTEC, the tablet was co-engineered with Zebra Technologies. It runs Android 14 (upgradeable to Android 16) on a Qualcomm 6490 octa-core processor with 8 GB RAM and 128 GB storage, and comes with the Zebra Mobility DNA software tools. The ET60EX2 is the Wi-Fi model and the ET65EX2 adds 5G and GNSS. Both are available with or without the integrated SE55 1D/2D scan engine.
Configurations and prices
| Configuration | Order code | Price excl. VAT |
|---|---|---|
| ET60EX2, Wi-Fi (WLAN only), without scanner | B7-T2E2-0A0CQAGS00RW | EUR 2,667 |
| ET60EX2, Wi-Fi (WLAN only), with SE55 1D/2D scan engine | B7-T2E2-0A0CQAGSK0RW | EUR 2,958 |
| ET65EX2, Wi-Fi + 5G and GNSS, without scanner | B7-T2E2-5AECQAGS00RW | EUR 3,055 |
| ET65EX2, Wi-Fi + 5G and GNSS, with SE55 1D/2D scan engine | B7-T2E2-5AECQAGSK0RW | EUR 3,346 |
All four configurations are the rest-of-world types (B7-T2E2-...RW) with ATEX and IECEx Zone 2/22 marking. The ET65EX2 rest-of-world types support WWAN frequency bands outside North America.
Mention the order code of the configuration you need in your order or quote request.
Why choose the BARTEC ET60/65EX2?
ATEX and IECEx, Zone 2 and Zone 22
Certified under EPS 25 ATEX 1 087 X and IECEx EPS 25.0018X for gas group IIC (T4, Gc) and dust group IIIC (T135°C, Dc), with the type of protection Ex ic. Ambient temperature range -20°C to +55°C.
Android 14 and Zebra Mobility DNA
Qualcomm 6490 octa-core processor at 2.7 GHz, 8 GB RAM, 128 GB UFS flash and a microSD slot for cards up to 2 TB. Android 14, upgradeable to Android 16. LifeGuard for Android (OS patches and security updates) requires a service contract.
10.1 inch display, 1,000 nits
WUXGA display optically bonded to the touch panel, with Corning Gorilla Glass. Multi-mode capacitive touch for bare or gloved fingertips or a stylus.
Barcode scanning
1D/2D barcodes can be read with the 16 MP rear camera. The optional SE55 Advanced Range scan engine with IntelliFocus reads from near contact up to 12 m, according to BARTEC. Configurations with the scan engine carry the additional marking "op is".
Wi-Fi 6E, Bluetooth, NFC and optional 5G
All models have Wi-Fi 6E (2x2 MU-MIMO), Bluetooth 5.2 and NFC. The ET65EX2 adds 5G FR1, 4G and 3G with eSIM and nano SIM, support for private LTE/5G networks and dual-band GNSS.
Removable 8,920 mAh battery
BARTEC states a run time of 10 hours indoor (WLAN on, 50% backlight). An internal super capacitor keeps the tablet powered during a battery swap. The battery may only be changed or charged outside the hazardous area.
Hazardous area certification
| ATEX marking | With scan engine: II 3G Ex ic op is IIC T4 Gc II 3D Ex ic op is IIIC T135°C Dc IP64 Without scan engine: II 3G Ex ic IIC T4 Gc II 3D Ex ic IIIC T135°C Dc IP64 |
| ATEX certificate | EPS 25 ATEX 1 087 X, revision 0, dated 2025-08-26. Certificate of Conformity based on a voluntary assessment by Bureau Veritas Consumer Products Services Germany GmbH. Standards: EN IEC 60079-0:2018, EN 60079-11:2012, EN 60079-28:2015 |
| IECEx marking | With scan engine: Ex ic op is IIC T4 Gc Ex ic op is IIIC T135°C Dc IP64 Without scan engine: Ex ic IIC T4 Gc Ex ic IIIC T135°C Dc IP64 |
| IECEx certificate | IECEx EPS 25.0018X, issue 0, dated 2025-08-26, status current. Standards: IEC 60079-0 edition 7.0, IEC 60079-11 edition 6.0, IEC 60079-28 edition 2 |
| Other approvals | CE: EU Declarations of Conformity B1-T2E0-7C0001 (ET60EX2) and B1-T2E0-7C0002 (ET65EX2) under the ATEX, RED, RoHS and WEEE directives. North American approvals (NEC/CEC) apply only to the separate North America types (B7-T2E1-...NA) and not to the configurations listed on this page. |
| Ambient temperature | -20°C ≤ Ta ≤ +55°C |
| Zones | Zone 2 (gas, EPL Gc) and Zone 22 (dust, EPL Dc) |
Understanding the marking
Ex ic: intrinsic safety with protection level "ic", which limits the electrical energy in the device. Suitable for equipment protection levels Gc and Dc (Zone 2 and Zone 22).
op is: inherently safe optical radiation according to IEC 60079-28. This applies to the configurations with the SE55 scan engine.
IIC T4 Gc: gas group IIC, temperature class T4 (maximum surface temperature 135°C), equipment protection level Gc.
IIIC T135°C Dc IP64: dust group IIIC, maximum surface temperature 135°C, equipment protection level Dc, degree of protection IP64.
Not for Zone 1 or Zone 21: the tablet is a category 3 device (II 3G / II 3D).
Specific conditions of use (X)
Both certificate numbers carry the suffix X. The certificates state the following specific conditions of use:
- The battery pack shall be changed or charged only outside hazardous areas.
- Only battery pack type B7-T2Z0-0001/**** shall be used.
- Connecting or disconnecting external ports, opening the enclosure or replacing the battery pack while live is only permitted when no potentially explosive atmosphere is present.
- The equipment shall be protected from impacts with high impact energy and from processes that generate high electrostatic charges.
- The manufacturer's safety instructions shall be followed strictly.
Technical specifications
Performance and display
| Operating system | Android 14 (upgradeable to Android 16), Zebra Mobility DNA |
| Processor | Qualcomm 6490 octa-core, 2.7 GHz |
| Memory | 8 GB RAM |
| Storage | 128 GB UFS flash, user-accessible microSD slot (up to 2 TB) |
| Display | 10.1 inch, WUXGA, 1,000 nits, optically bonded to the touch panel |
| Touch panel | Multi-mode capacitive touch for bare or gloved fingertip or stylus, Corning Gorilla Glass |
| Cameras | Rear 16 MP autofocus with flash LED; front 8 MP with mechanical privacy shade |
| Scan engine (optional) | SE55 1D/2D Advanced Range scan engine with IntelliFocus |
| Camera scanning | 1D/2D barcodes; optional OCR (OCR Wedge licence required per data type) |
| Sensors | Ambient light sensor, magnetometer (eCompass), 3-axis gyroscope, 3-axis accelerometer |
| Buttons | Power, scan, up/down (volume or brightness), three programmable keys |
| Audio | Stereo speakers and two microphones; headset via USB or Bluetooth |
Connectivity
| Wi-Fi | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, Wi-Fi 6E, 2x2 MU-MIMO, 2.4 GHz, 5 GHz and 6 GHz; WPA3 Personal and Enterprise |
| Bluetooth | Bluetooth 5.2 Class 1, Bluetooth Low Energy |
| NFC | ISO 14443 Type A and B; MIFARE, FeliCa and ISO 15693 cards; NFC Forum tags 2, 3, 4, 5; Host Card Emulation |
| Mobile network (ET65EX2 only) | 5G FR1, 4G, 3G; 1x eSIM and 1x nano SIM; LTE/5G private networking supported (band list in the datasheet) |
| GNSS (ET65EX2 only) | GPS, GLONASS, Galileo, BeiDou, QZSS, dual-band (L1 and L5); a-GPS |
| Ports | 2x USB 3.1 Type-A, 1x USB 3.1 Type-C (DisplayPort 1.2), docking connector (charge and data), keyboard connector, 1x USB 2.0 (back I/O, host only) |
Power, physical and environment
| Battery | Removable Li-ion battery pack B7-T2Z0-0001, 3.8 V / 8,920 mAh (certificate data), hot swap mode with internal super capacitor |
| Run time | 10 hours indoor with WLAN on and 50% backlight (manufacturer data, varies with use) |
| Charging | Via USB Type-C (USB PD 3.0 compatible); 2.5 hours from 4% to 80% with a 45 W power supply; outside the hazardous area only |
| Dimensions | 275 x 199 x 18.3 mm (W x L x H) |
| Weight | 1,074 g including battery |
| Degree of protection | IP64, as stated in the ATEX and IECEx marking |
| Drop | 1.5 m to concrete (manufacturer data) |
| Vibration | MIL-STD-810H Method 514.8 operating; MIL-STD-810H Method 514.8 E-1 minimum integrity, 7.7 Grms non-operating |
| Impact | Steel ball (130 g) dropped from 75 cm |
| Operating temperature | -20°C to +55°C |
| Storage temperature | -40°C to +70°C (without battery) |
| Relative humidity | 5% to 95%, non-condensing |
| Manufacturer warranty | BARTEC standard warranty: 1 year for the tablet, 6 months for battery and accessories. The BARTEC datasheet also lists a comprehensive service contract with a 3-year term. |
Scope of delivery and accessories
Each tablet is supplied with:
- BARTEC ET60/65EX2 Android Tablet
- Standard battery
- Quick Start Guide
Charging accessories are sold separately. The certificates list the following accessories for use in hazardous areas:
- B7-T2Z0-0001/**** standard battery, 3.8 V / 8,920 mAh
- B7-T2Z0-0003 kickstand with hand strap
- B7-T2Z0-0004 hand strap for kickstand
- B7-T2Z0-0006 shoulder strap
- B7-T2Z0-0008 screen protector
- B7-T2Z0-0009 holder for stylus
- B7-T2Z0-0010 leather holster
- 17-S1Z0-0008 stylus
Applications
The tablet is intended for mobile work in Zone 2 and Zone 22 areas, indoors and outdoors.
Inspection and maintenance
Work orders, checklists and inspection rounds in classified areas, with photos from the 16 MP rear camera.
Barcode and asset tracking
Scanning 1D/2D barcodes for asset, inventory and logistics tasks, with the camera or the optional SE55 scan engine.
Warehouses and plants
Data capture in warehouses, manufacturing plants, ports and yards where Zone 2 or Zone 22 applies.
Connected field work
Data exchange over Wi-Fi 6E, or over 5G and private LTE/5G networks with the ET65EX2.
