BARTEC ET60/65EX2 ATEX Zone 2/22 Windows Tablet, 10.1 inch
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
10.1 inch Windows 11 Pro tablet with Intel Core Ultra 5 125U, 16 GB RAM and a 256 GB SSD, certified under ATEX and IECEx for Zone 2 and Zone 22 (Ex ic). Available as ET60EX2 (Wi-Fi) or ET65EX2 (Wi-Fi + 5G/LTE), each with or without the SE55 1D/2D scan engine.
BARTEC ET60/65EX2 ATEX Zone 2/22 Windows Tablet
Certifications: ATEX EPS 26 ATEX 1 034 X • IECEx EPS 26.0013X | Zones: Zone 2 (gas) • Zone 22 (dust) | Protection: Ex ic (op is with scan engine) • IP64 | Manufacturer: BARTEC GmbH

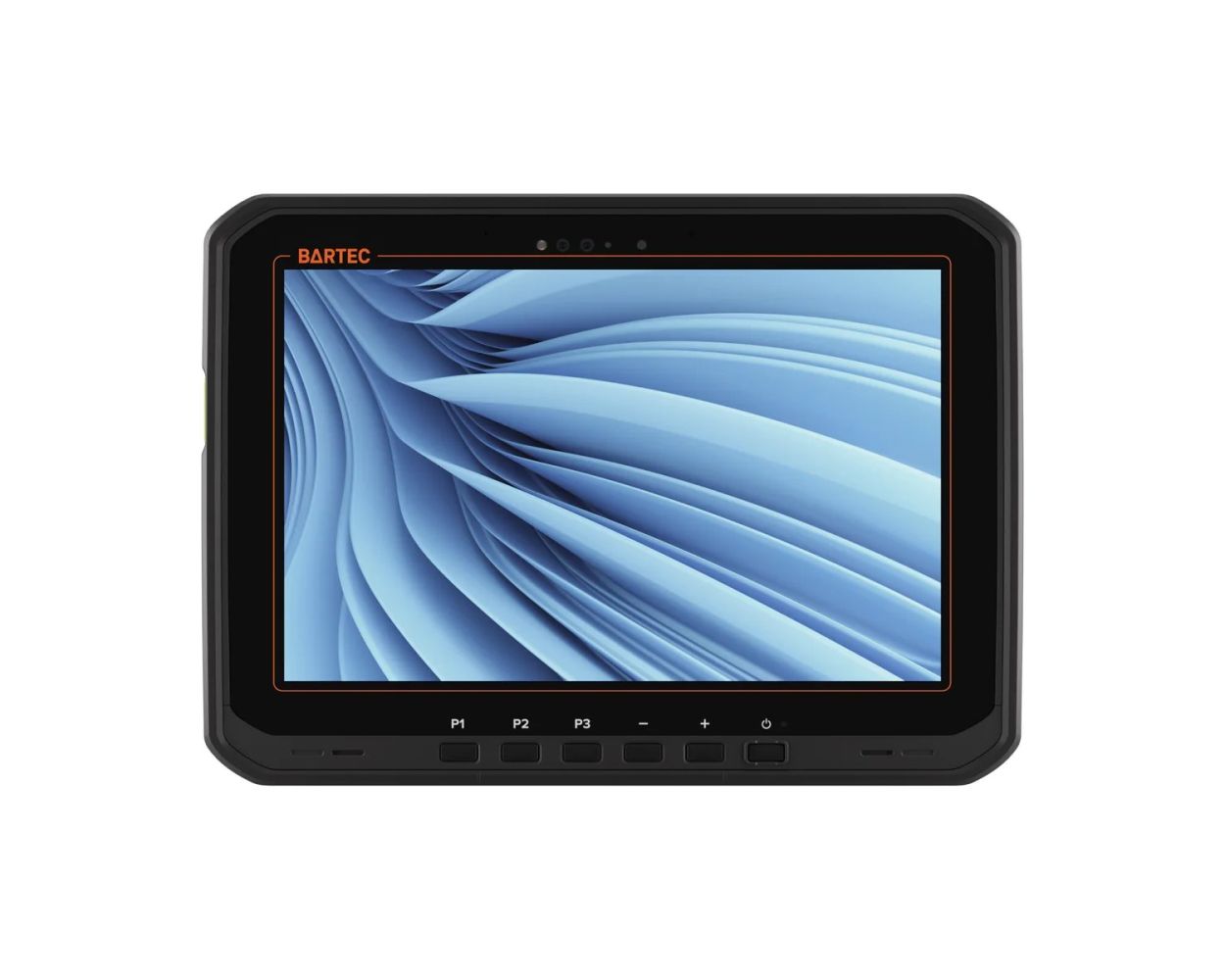

The BARTEC ET60/65EX2 Windows Tablet is a 10.1 inch rugged tablet with Windows 11 Professional (64-bit), an Intel Core Ultra 5 125U processor, 16 GB RAM and a 256 GB SSD. It is certified under ATEX (EPS 26 ATEX 1 034 X) and IECEx (IECEx EPS 26.0013X) for Zone 2 (gas) and Zone 22 (dust), for buyers looking for an explosion proof or intrinsically safe Windows tablet for these zones. The protection concept is intrinsic safety Ex ic; versions with the scan engine are additionally marked op is.
BARTEC developed the tablet in collaboration with Zebra Technologies. It is available as ET60EX2 (Wi-Fi only) and as ET65EX2 (Wi-Fi plus 5G/LTE and GNSS), each with or without the integrated SE55 1D/2D scan engine. The 10.1 inch display has a brightness of 1,000 nits and is optically bonded to the touch panel.
Configurations and prices
| Configuration | Order code | Price excl. VAT |
|---|---|---|
| ET60EX2 Windows, Wi-Fi only, without scanner | B7-T2E2-0W0C5DPS0000 | EUR 4,724 |
| ET60EX2 Windows, Wi-Fi only, with SE55 scan engine | B7-T2E2-0W0C5DPSK000 | EUR 5,111 |
| ET65EX2 Windows, Wi-Fi + 5G/LTE + GNSS, without scanner | B7-T2E2-5WEC5DPS0000 | EUR 5,369 |
| ET65EX2 Windows, Wi-Fi + 5G/LTE + GNSS, with SE55 scan engine | B7-T2E2-5WEC5DPSK000 | EUR 5,757 |
Mention the order code of the configuration you need in your order or quote request.
All configurations have the Intel Core Ultra 5 125U, 16 GB RAM, a 256 GB SSD and Windows 11 Professional (64-bit).
Why choose the BARTEC ET60/65EX2 Windows Tablet?
ATEX and IECEx for Zone 2 and 22
Certified by Bureau Veritas under ATEX (EPS 26 ATEX 1 034 X) and IECEx (IECEx EPS 26.0013X), both dated 21 July 2026, for gas group IIC T4 and dust group IIIC T135°C.
Windows 11 Pro on Intel Core Ultra 5
Intel Core Ultra 5 125U with 16 GB RAM and a 256 GB SSD, running Windows 11 Professional (64-bit). A Trusted Platform Module (TPM) secures authentication data, and facial recognition can be enabled for sign-in.
10.1 inch display, 1,000 nits
Optically bonded display with Corning Gorilla Glass and a contrast ratio of 1000:1. The capacitive multi-touch panel works with a bare finger, a gloved finger or a stylus; a passive stylus is included.
Optional SE55 scan engine
The SE55 1D/2D Advanced Range scan engine with IntelliFocus has a reading range of up to 12.2 m, depending on the type, size and quality of the barcode.
Wireless and ports
Wi-Fi on the 2.4, 5 and 6 GHz bands, Bluetooth 5.4 and NFC. The ET65EX2 adds 5G/LTE with eSIM and nano SIM, plus GNSS. Ports: 1x USB 3.1 Type-A, 2x Thunderbolt 4/USB4 Type-C, docking and keyboard connectors.
Swappable battery
7.6 V / 4460 mAh (33.90 Wh) Li-ion battery. An internal super capacitor bridges a battery swap for at least 60 seconds. Under the certificate, the battery may only be changed or charged outside the hazardous area.
Certification
| ATEX marking (with scan engine) | II 3G Ex ic op is IIC T4 Gc II 3D Ex ic op is IIIC T135°C Dc IP64 |
| ATEX marking (without scan engine) | II 3G Ex ic IIC T4 Gc II 3D Ex ic IIIC T135°C Dc IP64 |
| ATEX certificate | EPS 26 ATEX 1 034 X, Revision 0 (21 July 2026), Certificate of Conformity issued by Bureau Veritas Consumer Products Services Germany GmbH |
| IECEx marking (with scan engine) | Ex ic op is IIC T4 Gc Ex ic op is IIIC T135°C Dc IP64 |
| IECEx marking (without scan engine) | Ex ic IIC T4 Gc Ex ic IIIC T135°C Dc IP64 |
| IECEx certificate | IECEx EPS 26.0013X, Issue 0 (21 July 2026), test report DE/EPS/ExTR26.0008/00 |
| Certified equipment | Windows Tablet ET60EX2 / ET65EX2, Type B7-T2E*-*W**/******** |
| Protection concepts | Ex ic, intrinsic safety (level of protection ic) op is, inherently safe optical radiation (versions with scan engine) |
| Zones | Zone 2 (gas) and Zone 22 (dust); equipment category 3, EPL Gc / Dc |
| Standards | ATEX: EN IEC 60079-0:2018, EN 60079-11:2012, EN 60079-28:2015 IECEx: IEC 60079-0 Ed. 7.0, IEC 60079-11 Ed. 6.0, IEC 60079-28 Ed. 2 |
| EU Declarations of Conformity | B1-T2E0-7C0003 (ET60EX2) and B1-T2E0-7C0004 (ET65EX2): ATEX 2014/34/EU, RED 2014/53/EU, RoHS 2011/65/EU, WEEE 2012/19/EU |
| Other approvals | CE, FCC/IC (according to the BARTEC datasheet). No NEC/CEC (Class/Division) approval and no UKEx approval are listed for the Windows version. |
| Ambient temperature | -20°C ≤ Ta ≤ +55°C |
| Degree of protection | IP64, as stated in the ATEX and IECEx marking |
| Manufacturer | BARTEC GmbH, Bad Mergentheim, Germany |
IP rating: the certified Ex marking includes IP64. The BARTEC datasheet lists IP 66 to IEC 60529. For use in hazardous areas, the IP64 in the Ex marking is the relevant value.
North America: the BARTEC datasheet lists CE and FCC/IC as further certifications and no NEC/CEC Class/Division approval for this Windows version. Do not select it where an NEC/CEC Class I, Division 2 approval is required.
Specific conditions of use (X)
Both certificate numbers end in X. The certificates list the following specific conditions of use:
- Change or charge the battery pack only outside the hazardous area.
- Use only battery pack type B7-T2Z0-0002/****.
- Connect or disconnect external ports, open the enclosure or replace the battery pack while live only when a potentially explosive atmosphere is shown to be absent.
- Protect the tablet from impacts with high impact energy and from processes that generate high electrostatic charge.
- Follow the manufacturer's safety instructions strictly.
The datasheet adds that the supplied screws for locking the I/O ports and the battery must be tightened when the tablet is used in hazardous areas.
Technical specifications
Performance and display
| Processor | Intel Core Ultra 5 125U |
| Operating system | Windows 11 Professional, 64-bit |
| Memory | 16 GB RAM |
| Storage | 256 GB SSD |
| Display | 10.1 inch, WUXGA, 1,000 nits, optically bonded to the touch panel, contrast ratio 1000:1 |
| Touch panel | Capacitive multi-touch, Corning Gorilla Glass, AI Powered Touch Control; operation with bare finger, gloved finger or stylus (passive stylus included) |
| Security | Trusted Platform Module (TPM), facial recognition, mechanical privacy shade on the front camera |
Data capture
| Scanner (optional) | SE55 1D/2D Advanced Range scan engine with IntelliFocus; reading range up to 12.2 m, depending on type, size and quality of the barcode |
| Rear camera | 13 MP autofocus with flash LED |
| Front camera | 5 MP RGB with mechanical privacy shade |
Wireless connectivity
| Wi-Fi | Datasheet: Wi-Fi 7, IEEE 802.11a/b/d/e/g/h/i/k/n/r/u/v/w/ac/ax/be, 2x2 MU-MIMO, 2.4 GHz, 5 GHz and 6 GHz bands, WPA3. The ATEX/IECEx certificate describes the radio as Wi-Fi 6E. |
| Bluetooth | Bluetooth 5.4 (Class 1), Bluetooth Low Energy |
| NFC | ISO 14443 A/B, MIFARE, FeliCa, ISO 15693, NFC Forum Tag Types 1 to 4 |
| Mobile network (ET65EX2 only) | 5G NR, LTE-FDD, LTE-TDD, LTE-LAA (B46), UMTS; LTE/5G private networking supported |
| SIM (ET65EX2 only) | 1x eSIM, 1x nano SIM |
| GNSS (ET65EX2 only) | GPS, GLONASS, BeiDou, Galileo, QZSS |
Interfaces and power
| Ports | 1x USB 3.1 Type-A, 2x Thunderbolt 4/USB4 Type-C, docking connector (charge and data), keyboard connector, 1x USB 2.0 (back I/O, host only) |
| Buttons | Power, Scan, Up/Down (programmable), three programmable keys |
| Audio and notifications | Stereo speakers, two microphones, headset via USB or Bluetooth; audible tone and one multi-colour LED |
| Sensors | Ambient light sensor, magnetometer (eCompass), 3-axis gyroscope, 3-axis accelerometer |
| Battery | Li-ion 7.6 V / 4460 mAh (33.90 Wh), type B7-T2Z0-0002 |
| Hot swap | At least 60 seconds over the full operating temperature range via internal super capacitor; battery change only outside the hazardous area |
| Charging | 45 W USB Power Delivery 3.0 via USB-C; 2.5 hours from 0% to 100% with a 45 W power supply |
Physical and environmental
| Dimensions (W x L x H) | 275 x 199 x 18.3 mm |
| Weight | 1,200 g with battery |
| Operating temperature | -20°C to +55°C |
| Storage temperature | -40°C to +70°C (without battery) |
| Relative humidity | 5% to 95%, non-condensing |
| Degree of protection | IP64, as stated in the ATEX and IECEx marking |
| Drop specification | Exceeds MIL-STD-810H 1.5 m to concrete; meets MIL-STD-810H 1.8 m to plywood over concrete |
| Vibration | MIL-STD-810H Method 514.8 and 516.8 |
| Impact | Ball drop, 5 J on the touch screen |
| Manufacturer warranty | 1 year for the tablet, 6 months for battery and accessories; a 3-year service contract is available from BARTEC |
Scope of delivery and accessories
- BARTEC ET60/65EX2 Windows Tablet
- Standard battery
- Stylus
- Screws for locking the I/O ports and the battery in hazardous areas
- Quick Start Guide
Charging accessories are sold separately. Accessories listed on the certificates for use in hazardous areas: standard battery B7-T2Z0-0002, kickstand with hand strap B7-T2Z0-0003, hand strap for kickstand B7-T2Z0-0004, shoulder strap B7-T2Z0-0006, stylus holder B7-T2Z0-0009, screen protector B7-T2Z0-0011, leather holster B7-T2Z0-0012, 4-point belt B7-T2Z0-0013, integrated stylus B7-T2Z0-0014 and stylus 17-S1Z0-0008.
Applications
BARTEC positions the ET60/65EX2 Windows Tablet for the energy, chemical and process industries. With Windows 11 Professional, it can run existing Windows business applications, for example for inspection, maintenance and work orders in Zone 2 and Zone 22 areas. The versions with the SE55 scan engine suit barcode-based tasks such as material and asset registration; the ET65EX2 is for sites where a mobile network or GNSS positioning is needed.
