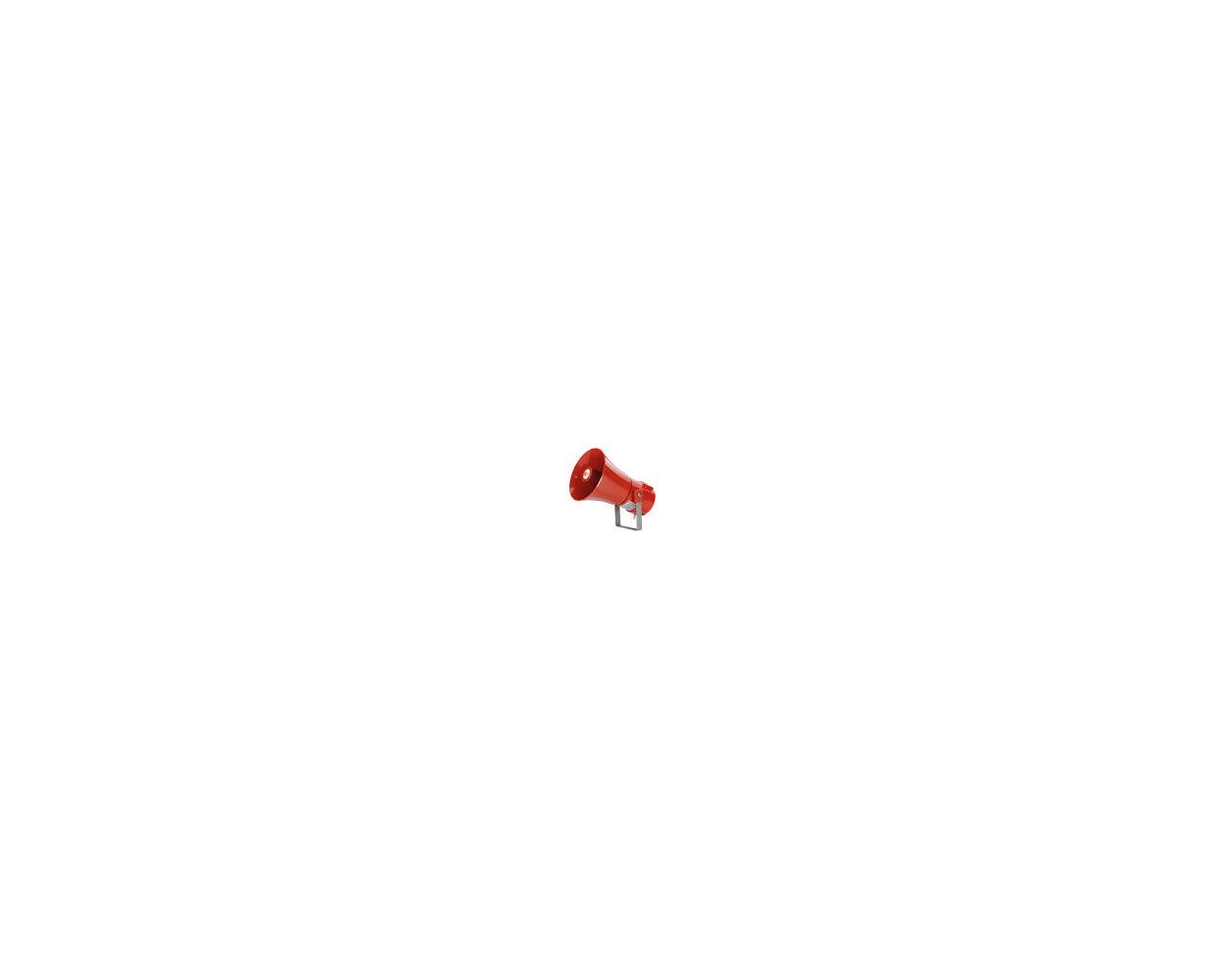

Bex 117dB(A) @ 1m +/- 3dB, Marine grade, corrosion proof
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
230V ac, Nominal output: 117dB(A) @ 1m +/- 3dB, Marine grade, corrosion proof, LM6 aluminium enclosure, Ingress protection IP66/67, Stainless steel fixings, Dual M20 cable entries – adaptors available, Stopping plug included, Reverse polarity diode fitted, Automatic synchronisation on multi-sounder system, Very large termination area, Ratchet adjustable stainless steel ‘U’ bracket. Ingress protection: IP66/67.
Leveranciersnummer: BExS120DFAC230AB2A1R
Bestelnummer: 26BExS120DFAC230AB2A1R
Specification
| Maximum output: | 117dB(A) @ 1 metre [108dB(A) @ 10ft/3m] |
| Nominal output: | 110dB(A) @ 1m +/- 3dB – Tone 2 [101dB(A) @ 10ft/3m] |
| No. of tones: | 32 (UKOOA / PFEER compliant) |
| No. of stages: | 3 |
| Volume control: | Max. 110dB(A); Min. 72dB(A) – Tone 2 |
| Effective range: | 100m @ 1KHz |
| Voltages DC: | 12vdc; 24vdc; 48vdc |
| Voltages AC: | 115vac; 230vac |
| Stage switching: | Negative or positive |
| Ingress protection: | S110D : IP66/67 S110E : IP66 |
| Enclosure matl: | Marine grade copper free LM6 Aluminium |
| Enclosure finish: | Chromate & powder coated finish – anti-corrosion. |
| Colour: | RAL3000 Red (others available on request) |
| BExS110 flare: | High impact UL94 V0 & 5VA FR ABS (Red) |
| BExDS110 flare: | Anti-Static High impact ABS (Black) |
| Cable entries: | Dual M20 ISO (one stopping plug inc) |
| Terminals: | 0.5 – 2.5mm² (20-14 AWG) |
| Enclosure volume: | <2 litres |
| Line monitoring: | Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted |
| Weight: | DC: 3.00kg AC: 3.20kg |
| *SPL data +/-3dB(A). Measured at optimum voltage. | |
Downloads
1-22-050-bexs120-f_datasheet 2.pdf
