BExS110 Explosion Proof Alarm Horn
Call for Price
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
*Prices are Excl. VAT, duty and shipping costs and may change due to exchange rate.
SKU

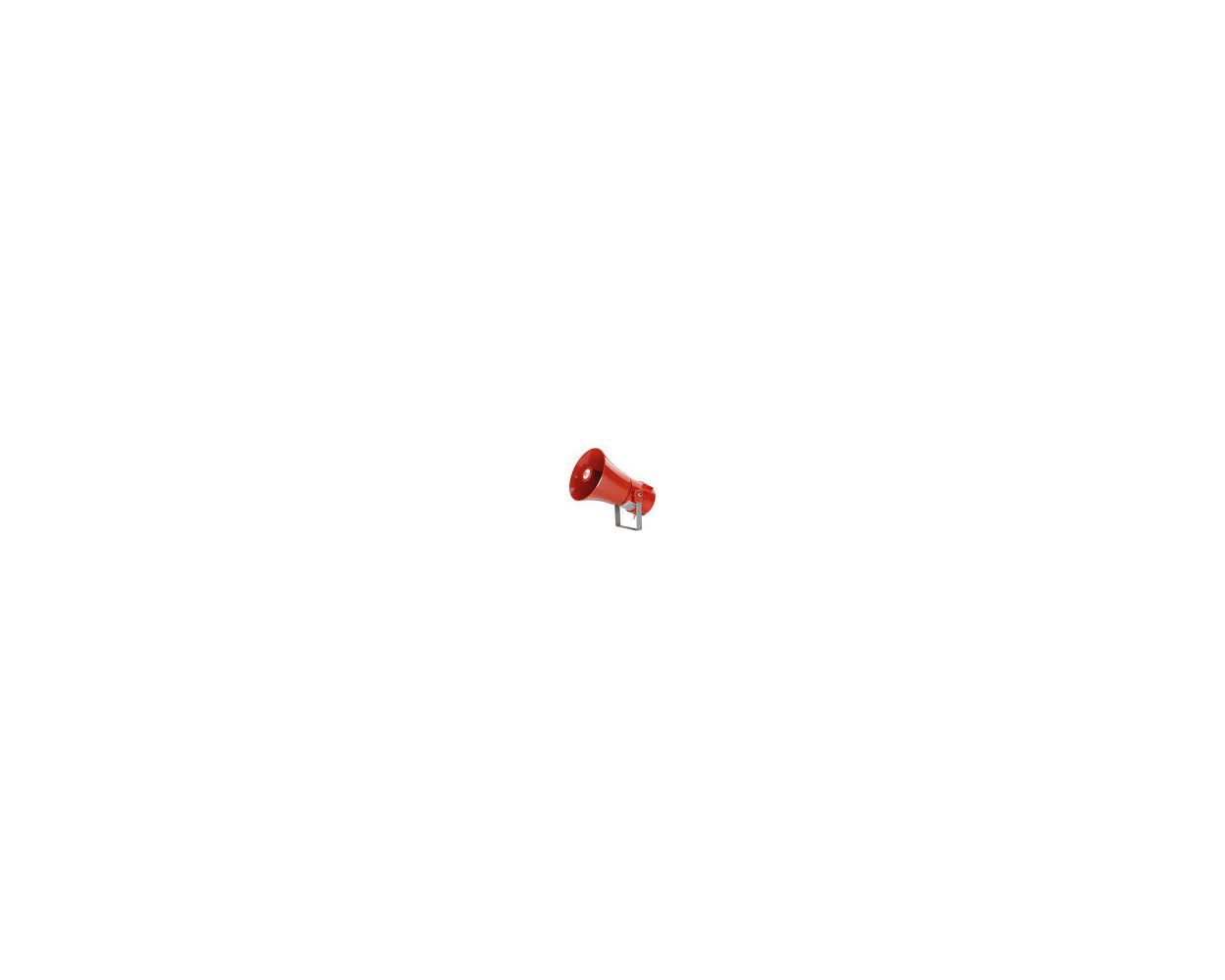

BExS110 Explosion Proof Alarm Horn
BExS110 Explosion Proof Alarm Horn - Radial Omni-directional
BExS110D-R 24V+/-25% dc Alarm Radial Sounder
-Certificate:ATEX/IECEx, CR-TU & SIL 1
- Coding: Ex d IIB T4 Ta -50°C to +70°C & Ex d IIC T4 Ta -50°C to +55°C
- Output:110dB (Max 117dB)
- No of tones:32,
- No of stages: 3,
- IP67,
- Cable entries: Dual M20 ISO
- Brass stopping plug
- Stainless Steel 316 Bracket
Leveranciersnummer: BExS110DRDC024AB2A1R
Bestelnummer: 26BExS110DRDC024AB2A1R
e2s Alarm Sounder
The e2s alarm sounder is a surface mount, 32-tone electronic alarm. It has a sound level output of 117dB(A) at a distance of up to 1m and 3, remotely selectable stages. The BEx range features enclosures manufactured from corrosion proof, marine grade, phosphate and powder coated, copper-free LM6 aluminium. It is enabled with high impact, re-entrant, fire-retardant ABS flare horns. All the models have 2, M20 cable entries along with large termination areas containing in and out terminals. It works on a supply voltage of 24VDC. The sounder is available in red body colour.
Features and Benefits
Automatic synchronisation on multi-sounder system
Very large termination area
Die-cast LM6 aluminium alloy body with UL94V0 flame retardant ABS re-entrant horn
Stainless steel mounting brackets
Ratchet adjustable stainless steel ’U’ bracket
In and out terminals
’Programmable’ version available:
45 alarm tones
4 remotely selectable stages
Any tone can be assigned to any stage
User-configurable continuous frequency tone
Very large termination area
Die-cast LM6 aluminium alloy body with UL94V0 flame retardant ABS re-entrant horn
Stainless steel mounting brackets
Ratchet adjustable stainless steel ’U’ bracket
In and out terminals
’Programmable’ version available:
45 alarm tones
4 remotely selectable stages
Any tone can be assigned to any stage
User-configurable continuous frequency tone
Applications
Hazardous areas
Zone 1
Zone 2
Zone 1
Zone 2
Certifications
IP66 rated
IP67 rated
UKOOA/ PFEER compliant
ATEX
IECEx
INMETRO
GOST-R
VdS
IP67 rated
UKOOA/ PFEER compliant
ATEX
IECEx
INMETRO
GOST-R
VdS
Specificaties
| Kenmerk | Waarde |
| Supply Voltage | 24 V dc |
| IP Rating | IP67 |
| Decibels at 1 Metre | 117dB |
| Current Type | DC |
| Number Of Tones | 32 |
| Housing Colour | Red |
| Mounting Style | Surface Mount |
| Diameter | 181 mm |
| Application Type | Sounder |
| Minimum Decibel | 72dB |
| Maximum Decibel | 110dB |
| Series | BEXS110 |
| Hazardous Area Certification | ATEX |
| Maximum Temperature | +70°C |
| Housing Material | Marine Grade Aluminium |
| Minimum Temperature | -50°C |
Downloads
1-22-050-bexs120-f_datasheet 3.pdf
